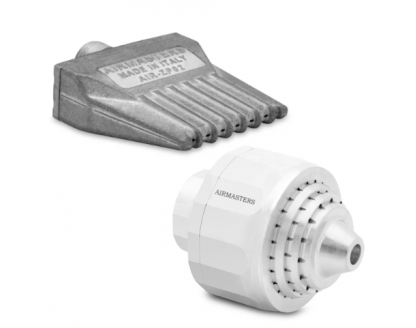

Air nozzles, knives and guns AIRMASTERS | English version

Widok

Extra Strong 303/304 Stainless Steel 1/4" BSP male fitting

AIR-M104S

Blowing force at 5 bar [N] - 4.3

Air consumption at 5 bar [m3 /h] - 17

Air saving [m3 /h] - 50

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 77

Noise reduction [dB(A)] - 25

Material - Stainless steel 304

Dimensions [mm] - Ø19x54

Connection type - Male

Connection - 1/4"

Air flow type - Concentrated

Replaces an open pipe [mm] - 4-6

Pressure max [bar] - 10

Compliance with OSHA - yes

On order

Product prices will become visible after signing in.

Extra Strong 316L Stainless Steel 1/4" BSP male fitting

AIR-M104S-316L

Blowing force at 5 bar [N] - 4.3

Air consumption at 5 bar [m3 /h] - 17

Air saving [m3 /h] - 50

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 77

Noise reduction [dB(A)] - 25

Material - Stainless steel 316

Dimensions [mm] - Ø19x54

Connection type - Male

Connection - 1/4"

Air flow type - Concentrated

Replaces an open pipe [mm] - 4-6

Pressure max [bar] - 10

Compliance with OSHA - yes

On order

Product prices will become visible after signing in.

Extra Strong Aluminum 1/4" BSP Female fitting

AIR-M104F

Blowing force at 5 bar [N] - 3.7

Air consumption at 5 bar [m3 /h] - 15

Air saving [m3 /h] - 50

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 75

Noise reduction [dB(A)] - 25

Material - Aluminium

Dimensions [mm] - Ø19x54

Connection type - Female

Connection - 1/4"

Air flow type - Concentrated

Replaces an open pipe [mm] - 4-6

Pressure max [bar] - 10

Compliance with OSHA - yes

On order

Product prices will become visible after signing in.

Extra Strong Aluminum 1/4" BSP male fitting

AIR-M104

Blowing force at 5 bar [N] - 4.3

Air consumption at 5 bar [m3 /h] - 17

Air saving [m3 /h] - 50

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 77

Noise reduction [dB(A)] - 25

Material - Zinc

Dimensions [mm] - Ø19x54

Connection type - Male

Connection - 1/4"

Air flow type - Concentrated

Replaces an open pipe [mm] - 4-6

Pressure max [bar] - 10

Compliance with OSHA - yes

Available

Product prices will become visible after signing in.

Extra Strong Steel 1/4" BSP Female fitting

AIR-M104FS

Blowing force at 5 bar [N] - 3.7

Air consumption at 5 bar [m3 /h] - 15

Air saving [m3 /h] - 50

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 75

Noise reduction [dB(A)] - 25

Material - Stainless steel 304

Dimensions [mm] - Ø19x54

Connection type - Female

Connection - 1/4"

Air flow type - Concentrated

Replaces an open pipe [mm] - 4-6

Pressure max [bar] - 10

Compliance with OSHA - yes

Available

Product prices will become visible after signing in.

Flat 1" angled nozzle aluminium

AIR-M147A

Available

Product prices will become visible after signing in.

Flat 1" angled nozzle Steel 316L

AIR-M147S-316-L

On order

Product prices will become visible after signing in.

Flat steel large nozzle

AIR-M175S

Blowing force at 5 bar [N] - 9.5

Air consumption at 5 bar [m3 /h] - 57

Air saving [m3 /h] - 32

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 84

Noise reduction [dB(A)] - 20

Material - Stainless steel 304

Dimensions [mm] - 58x77x18

Connection type - Male

Connection - 1/4"

Air flow type - Flat

Replaces an open pipe [mm] - 6-8

Pressure max [bar] - 10

Compliance with OSHA - yes

Available

Product prices will become visible after signing in.

Flat steel nozzle

AIR-M178S

Blowing force at 5 bar [N] - 3

Air consumption at 5 bar [m3 /h] - 16

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 78

Noise reduction [dB(A)] - 16

Material - Steel/aluminium

Dimensions [mm] - 23x58,5x10,6

Connection type - Male

Connection - 1/8"

Air flow type - Flat

Pressure max [bar] - 10

Compliance with OSHA - yes

On order

Product prices will become visible after signing in.

Flat steel nozzle

AIR-M177S

Blowing force at 5 bar [N] - 5.3

Air consumption at 5 bar [m3 /h] - 28

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 64

Noise reduction [dB(A)] - 22

Material - Steel/aluminium

Dimensions [mm] - 45,9x74,4x14

Connection type - Male

Connection - 1/4"

Air flow type - Flat

Pressure max [bar] - 10

Compliance with OSHA - yes

Available

Product prices will become visible after signing in.

Flat steel nozzle

AIR-M176S

Blowing force at 5 bar [N] - 3

Air consumption at 5 bar [m3 /h] - 16

Air flow amplification - 50:1

Noise level at 5 bar [dB(A)] - 78

Noise reduction [dB(A)] - 16

Material - Steel/aluminium

Dimensions [mm] - 22,9x74,9x14

Connection type - Male

Connection - 1/4"

Air flow type - Flat

Pressure max [bar] - 10

Compliance with OSHA - yes

On order

Product prices will become visible after signing in.

Four oulet 46004 Manifold with four premounted AIR-147A

SL04

Nozzle quantity/type - 4 x AIR-147A

Blowing force at 5 bar [N] - 14

Air consumption at 5 bar [m3 /h] - 78

Noise level at 5 bar [dB(A)] - 86.5

Material - Aluminium

Support material - Stainless steel

Dimensions [mm] - 140x40x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four oulet 46004 Manifold with four premounted AIR-M104

AIR-LR04

Nozzle quantity/type - 4 x AIR-M104

Blowing force at 5 bar [N] - 15

Air consumption at 5 bar [m3 /h] - 69

Noise level at 5 bar [dB(A)] - 81

Material - Aluminium

Dimensions [mm] - 204x75x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Round

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four oulet 46004 Manifold with four premounted AIR-M177S

TS04

Nozzle quantity/type - 4 x AIR-M177S

Blowing force at 5 bar [N] - 22

Air consumption at 5 bar [m3 /h] - 116

Noise level at 5 bar [dB(A)] - 87

Material - Aluminium

Dimensions [mm] - 214x95x31

Connection type - Female

Rear connection - 1/2” x 2

Side conection - 1/2” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four oulet 46004S Manifold with four premounted AIR-147S-316L

SL04S

Nozzle quantity/type - 4 x AIR-147S-316L

Blowing force at 5 bar [N] - 14

Air consumption at 5 bar [m3 /h] - 78

Noise level at 5 bar [dB(A)] - 86.5

Material - Stainless steel 316L

Support material - Stainless steel

Dimensions [mm] - 140x40x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four oulet 46004S Manifold with four premounted AIR-M104-316L

AIR-LR04S-316L

Nozzle quantity/type - 4 x AIR-M104-316L

Blowing force at 5 bar [N] - 15

Air consumption at 5 bar [m3 /h] - 69

Noise level at 5 bar [dB(A)] - 81

Material - Stainless steel 316L

Dimensions [mm] - 204x75x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Round

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four oulet 46004S Manifold with four premounted AIR-M104S

AIR-LR04S

Nozzle quantity/type - 4 x AIR-M104S

Blowing force at 5 bar [N] - 15

Air consumption at 5 bar [m3 /h] - 69

Noise level at 5 bar [dB(A)] - 81

Material - Stainless steel 304

Dimensions [mm] - 204x75x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Round

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004 Maniold with four premounted AIR-M200-12

AIR-GM04-12

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004 Maniold with four premounted AIR-M200-4

AIR-GM04-4

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004 Maniold with four premounted AIR-M200-8

AIR-GM04-8

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004HF Maniold with four premounted AIR-M200-16

AIR-GM04-16

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004HF Maniold with four premounted AIR-M200-20

AIR-GM04-20

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004HF Maniold with four premounted AIR-M200-24

AIR-GM04-24

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Four outlet 46004HF Maniold with four premounted AIR-M200-28

AIR-GM04-28

Nozzle quantity/type - 4 x AIR-M200-...

Blowing force at 5 bar [N] - 23,2 - 32 - 43

Air consumption at 5 bar [m3 /h] - 116 - 216 - 230

Noise level at 5 bar [dB(A)] - 85

Material - Anodised aluminium

Support material - Stainless steel

Dimensions [mm] - 204x82x25

Connection type - Female

Rear connection - 3/8” x 1

Side conection - 3/8” x 2

Air flow type - Flat

Pressure max [bar] - 10

On order

Product prices will become visible after signing in.

Filters

Extra Strong 303/304 Stainless Steel 1/4" BSP male fitting

Extra Strong 316L Stainless Steel 1/4" BSP male fitting

Extra Strong Aluminum 1/4" BSP Female fitting

Extra Strong Aluminum 1/4" BSP male fitting

Extra Strong Steel 1/4" BSP Female fitting

Flat 1" angled nozzle aluminium

Flat 1" angled nozzle Steel 316L

Flat steel large nozzle

Flat steel nozzle

Flat steel nozzle

Flat steel nozzle

Four oulet 46004 Manifold with four premounted AIR-147A

Four oulet 46004 Manifold with four premounted AIR-M104

Four oulet 46004 Manifold with four premounted AIR-M177S

Four oulet 46004S Manifold with four premounted AIR-147S-316L

Four oulet 46004S Manifold with four premounted AIR-M104-316L

Four oulet 46004S Manifold with four premounted AIR-M104S

Four outlet 46004 Maniold with four premounted AIR-M200-12

Four outlet 46004 Maniold with four premounted AIR-M200-4

Four outlet 46004 Maniold with four premounted AIR-M200-8

Four outlet 46004HF Maniold with four premounted AIR-M200-16

Four outlet 46004HF Maniold with four premounted AIR-M200-20

Four outlet 46004HF Maniold with four premounted AIR-M200-24

Four outlet 46004HF Maniold with four premounted AIR-M200-28
