Filters, separators, receivers | English version

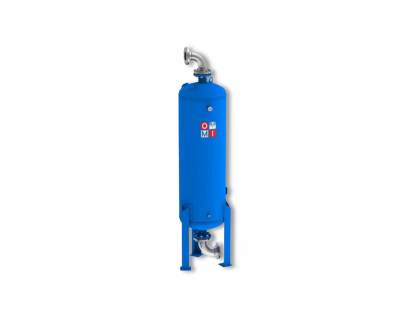

Activated carbon tower RACT 1000

ACT 1000

Flow capacity - 16666

Flow rate [m3/h] - 1000

Ciśnienie [bar] - 7

Pressure max [bar] - 15

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - 2" G, 2" G

Weight [kg] - 245

Height [mm] - 2148

Lenght [mm] - 436

Width [mm] - 482

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 110

ACT 110

Flow capacity - 1830

Flow rate [m3/h] - 110

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 3/4" G, 1" G

Weight [kg] - 24

Height [mm] - 1090

Lenght [mm] - 267

Width [mm] - 255

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 150

ACT 150

Flow capacity - 2500

Flow rate [m3/h] - 150

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 1" G, 1"G

Weight [kg] - 32

Height [mm] - 1440

Lenght [mm] - 267

Width [mm] - 255

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 1560

ACT 1560

Flow capacity - 26000

Flow rate [m3/h] - 1560

Ciśnienie [bar] - 7

Pressure max [bar] - 15

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - 3" G, 2" G

Weight [kg] - 322

Height [mm] - 2463

Lenght [mm] - 483

Width [mm] - 534

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 180

ACT 180

Flow capacity - 3000

Flow rate [m3/h] - 180

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 1" G, 1" G

Weight [kg] - 35

Height [mm] - 1640

Lenght [mm] - 267

Width [mm] - 255

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 2300

ACT 2300

Flow capacity - 38333

Flow rate [m3/h] - 2300

Ciśnienie [bar] - 7

Pressure max [bar] - 15

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - 3" G, 2" G

Weight [kg] - 379

Height [mm] - 2693

Lenght [mm] - 595

Width [mm] - 649

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 2800

ACT 2800

Flow capacity - 46666

Flow rate [m3/h] - 2800

Ciśnienie [bar] - 7

Pressure max [bar] - 13

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - DN 100 PN 40, 3" G

Weight [kg] - 456

Height [mm] - 2879

Lenght [mm] - 721

Width [mm] - 772

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 30

ACT 30

Flow capacity - 500

Flow rate [m3/h] - 30

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 3/8" G, 1/4" G

Weight [kg] - 8

Height [mm] - 749

Lenght [mm] - 212

Width [mm] - 143

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 350

ACT 350

Flow capacity - 5830

Flow rate [m3/h] - 350

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 1 1/2" G, 1" G

Weight [kg] - 70

Height [mm] - 1660

Lenght [mm] - 447

Width [mm] - 255

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 5700

ACT 5700

Flow capacity - 95000

Flow rate [m3/h] - 5700

Ciśnienie [bar] - 7

Pressure max [bar] - 13

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - DN 150 PN 40, 3" G

Weight [kg] - 900

Height [mm] - 3455

Lenght [mm] - 855

Width [mm] - 926

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 600

ACT 600

Flow capacity - 10000

Flow rate [m3/h] - 600

Ciśnienie [bar] - 7

Pressure max [bar] - 15

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 2

Max. ambient temp. [°C] - 46

Connection [BSP] - 2" G, 2" G

Weight [kg] - 115

Height [mm] - 2113

Lenght [mm] - 397

Width [mm] - 430

On order

Product prices will become visible after signing in.

Activated carbon tower RACT 75

ACT 75

Flow capacity - 1250

Flow rate [m3/h] - 75

Ciśnienie [bar] - 7

Pressure max [bar] - 14

Inlet temp. [⁰C] - 50

Min. ambient temp. [°C] - 1

Max. ambient temp. [°C] - 46

Connection [BSP] - 3/4" G, 1" G

Weight [kg] - 20

Height [mm] - 890

Lenght [mm] - 267

Width [mm] - 255

On order

Product prices will become visible after signing in.

Compressed air filter FM 100 CF, aluminium

F 0010CF

Filtration grade - CF - Activated Carbon Filtration

Connection [BSP] - 1/2"

Flow rate [m3/h] - 70

Efficiency [l/min] - 1170

Height [mm] - 220

Width [mm] - 90

Lenght [mm] - 25

Weight [kg] - 0.6

On order

Product prices will become visible after signing in.

Compressed air filter FM 100 HF, aluminium

F 0010HF

Filtration grade - HF - High Efficiency Oil Removal Filtration

Connection [BSP] - 1/2"

Flow rate [m3/h] - 70

Efficiency [l/min] - 1170

Height [mm] - 220

Width [mm] - 90

Lenght [mm] - 25

Weight [kg] - 0.6

On order

Product prices will become visible after signing in.

Compressed air filter FM 100 PF, aluminium

F 0010PF

Filtration grade - PF - General purpose Protection Filtration

Connection [BSP] - 1/2"

Flow rate [m3/h] - 70

Efficiency [l/min] - 1170

Height [mm] - 220

Width [mm] - 90

Lenght [mm] - 25

Weight [kg] - 0.6

On order

Product prices will become visible after signing in.

Compressed air filter FM 100 QF, aluminium

F 0010QF

Filtration grade - QF - Dust Filtration

Connection [BSP] - 1/2"

Flow rate [m3/h] - 70

Efficiency [l/min] - 1170

Height [mm] - 220

Width [mm] - 90

Lenght [mm] - 25

Weight [kg] - 0.6

On order

Product prices will become visible after signing in.

Compressed air filter FM 1250 CF, aluminium

F 0125CF

Filtration grade - CF - Activated Carbon Filtration

Connection [BSP] - 2"

Flow rate [m3/h] - 770

Efficiency [l/min] - 12800

Height [mm] - 500

Width [mm] - 165

Lenght [mm] - 54

Weight [kg] - 3.7

On order

Product prices will become visible after signing in.

Compressed air filter FM 1250 HF, aluminium

F 0125HF

Filtration grade - HF - High Efficiency Oil Removal Filtration

Connection [BSP] - 2"

Flow rate [m3/h] - 770

Efficiency [l/min] - 12800

Height [mm] - 500

Width [mm] - 165

Lenght [mm] - 54

Weight [kg] - 3.7

On order

Product prices will become visible after signing in.

Compressed air filter FM 1250 PF, aluminium

F 0125PF

Filtration grade - PF - General purpose Protection Filtration

Connection [BSP] - 2"

Flow rate [m3/h] - 770

Efficiency [l/min] - 12800

Height [mm] - 500

Width [mm] - 165

Lenght [mm] - 54

Weight [kg] - 3.7

On order

Product prices will become visible after signing in.

Compressed air filter FM 1250 QF, aluminium

F 0125QF

Filtration grade - QF - Dust Filtration

Connection [BSP] - 2"

Flow rate [m3/h] - 770

Efficiency [l/min] - 12800

Height [mm] - 500

Width [mm] - 165

Lenght [mm] - 54

Weight [kg] - 3.7

On order

Product prices will become visible after signing in.

Compressed air filter FM 12500 CF, carbon steel

F 1250CF

Filtration grade - CF - Activated Carbon Filtration

Connection [BSP] - DN 150

Flow rate [m3/h] - 7500

Efficiency [l/min] - 125000

Height [mm] - 1430

Width [mm] - 676

Lenght [mm] - 310

Weight [kg] - 264

On order

Product prices will become visible after signing in.

Compressed air filter FM 12500 HF, carbon steel

F 1250HF

Filtration grade - HF - High Efficiency Oil Removal Filtration

Connection [BSP] - DN 150

Flow rate [m3/h] - 7500

Efficiency [l/min] - 125000

Height [mm] - 1430

Width [mm] - 676

Lenght [mm] - 310

Weight [kg] - 264

On order

Product prices will become visible after signing in.

Compressed air filter FM 12500 PF, carbon steel

F 1250PF

Filtration grade - PF - General purpose Protection Filtration

Connection [BSP] - DN 150

Flow rate [m3/h] - 7500

Efficiency [l/min] - 125000

Height [mm] - 1430

Width [mm] - 676

Lenght [mm] - 310

Weight [kg] - 264

On order

Product prices will become visible after signing in.

Compressed air filter FM 12500 QF, carbon steel

F 1250QF

Filtration grade - QF - Dust Filtration

Connection [BSP] - DN 150

Flow rate [m3/h] - 7500

Efficiency [l/min] - 125000

Height [mm] - 1430

Width [mm] - 676

Lenght [mm] - 310

Weight [kg] - 264

On order

Product prices will become visible after signing in.
