Oil-free pump systems CBL 106/300

CBL 106/300

Motor power [KW] 1~/3~) - 3,3

Nominal capacity [m3/h] - 239 ÷ 282

Noise level pump [Db (A)] - 72

Max pressure difference during continuous operation [mbar] - 0,006 ÷ 1013

Total final pressure [mbar-hPa] - 6 x 10^3

Pump intake / outlet [DN] - 80 / 1”1/4

Weight [Kg[N]] (1~/3~) - 206

Required room temp. for place of installation [°C] - 12 ÷ 40

Fluid temperature [°C] - 12 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free pump systems CBL 205/500

CBL 205/500

Motor power [KW] 1~/3~) - 7,7

Nominal capacity [m3/h] - 450 ÷ 528

Noise level pump [Db (A)] - 74

Max pressure difference during continuous operation [mbar] - 0,009 ÷ 1013

Total final pressure [mbar-hPa] - 9 x 10^3

Pump intake / outlet [DN] - 100 / 2”

Weight [Kg[N]] (1~/3~) - 350

Required room temp. for place of installation [°C] - 12 ÷ 40

Fluid temperature [°C] - 12 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free pump systems CBL 2X305/2000

CBL 2X305/2000

Motor power [KW] 1~/3~) - 20,5

Nominal capacity [m3/h] - 1760 ÷ 2075

Noise level pump [Db (A)] - 76

Max pressure difference during continuous operation [mbar] - 0,009 ÷ 1013

Total final pressure [mbar-hPa] - 9 x 10^3

Pump intake / outlet [DN] - 150 / 2"

Weight [Kg[N]] (1~/3~) - 846

Required room temp. for place of installation [°C] - 12 ÷ 40

Fluid temperature [°C] - 12 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free pump systems CBL 305/1000

CBL 305/1000

Motor power [KW] 1~/3~) - 11,5

Nominal capacity [m3/h] - 858 ÷ 1022

Noise level pump [Db (A)] - 75

Max pressure difference during continuous operation [mbar] - 0,009 ÷ 1013

Total final pressure [mbar-hPa] - 9 x 10^3

Pump intake / outlet [DN] - 100 / 2”

Weight [Kg[N]] (1~/3~) - 470

Required room temp. for place of installation [°C] - 12 ÷ 40

Fluid temperature [°C] - 12 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free pump systems CBL 305/1500

CBL 2x305/1500

On order

Product prices will become visible after signing in.

Oil-free pump systems CBL 3X305/3000

CBL 3X305/3000

Motor power [KW] 1~/3~) - 30

Nominal capacity [m3/h] - 2575 ÷ 3100

Noise level pump [Db (A)] - 78

Max pressure difference during continuous operation [mbar] - 0,009 ÷ 1013

Total final pressure [mbar-hPa] - 9 x 10^3

Pump intake / outlet [DN] - 150 / 2"

Weight [Kg[N]] (1~/3~) - 1066

Required room temp. for place of installation [°C] - 12 ÷ 40

Fluid temperature [°C] - 12 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

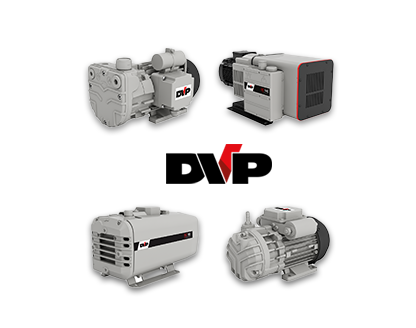

Oil-free rotary vane vacuum pumps CB 10

CB 10

Nominal capacity [m3/h] - 10

Maximum overpressure [bar-105Pa] - 0,6

Motor power [KW] 1~/3~) - 0,37 / 0,37

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 64

Weight [Kg[N]] (1~/3~) - 15,5 [152] / 14 [137,3]

Pump intake / outlet - 1/2”G / 1/2"G

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps CB 12

CB 12

Nominal capacity [m3/h] - 12

Maximum overpressure [bar-105Pa] - 0,6

Motor power [KW] 1~/3~) - 0,37 / 0,45

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 64

Weight [Kg[N]] (1~/3~) - 14,5 [142,2] / 13,5 [132,4]

Pump intake / outlet - 1/2”G / 1/2"G

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps CC 100

CC 100

Nominal capacity [m3/h] - 100

Maximum overpressure [bar-105Pa] - 1,3

Motor power [KW] 1~/3~) - (-/4,0)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 73

Weight [Kg[N]] (1~/3~) - (-/93 [912,3])

Pump intake / outlet - 1-1/2”G / 1-1/2”G

Operating temperature [°C] - 80 ÷ 85

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps CC 140

CC 140

Nominal capacity [m3/h] - 130

Maximum overpressure [bar-105Pa] - 1,3

Motor power [KW] 1~/3~) - (-/5,5)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 76

Weight [Kg[N]] (1~/3~) - (-/97 [951,5])

Pump intake / outlet - 1-1/2”G / 1-1/2”G

Operating temperature [°C] - 85 ÷ 90

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps CC 60

CC 60

Nominal capacity [m3/h] - 60

Maximum overpressure [bar-105Pa] - 1,0

Motor power [KW] 1~/3~) - (-/ 2,2)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 70

Weight [Kg[N]] (1~/3~) - (-/ 70 [686,7])

Pump intake / outlet - 1”G / 1”G

Operating temperature [°C] - 60 ÷ 65

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps CC 80

CC 80

Nominal capacity [m3/h] - 80

Maximum overpressure [bar-105Pa] - 1,2

Motor power [KW] 1~/3~) - (-/3,4)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 72

Weight [Kg[N]] (1~/3~) - (-/ 74 [725,9])

Pump intake / outlet - 1”G / 1”G

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SB 10

SB 10

Nominal capacity [m3/h] - 10

Maximum overpressure [bar-105Pa] - 120

Motor power [KW] 1~/3~) - 0,37 / 0,37

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 64

Weight [Kg[N]] (1~/3~) - 15,5 [152] / 14 [137]

Pump intake / outlet - 1/2”G / - - -

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SB 10TV

SB 10TV

Nominal capacity [m3/h] - 10

Maximum overpressure [bar-105Pa] - 120

Motor power [KW] 1~/3~) - 0,37 / 0,37

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 64

Weight [Kg[N]] (1~/3~) - 15,5 [152] / 14 [137]

Pump intake / outlet - 1/2”G / 1/2”G

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SB 12

SB 12

Nominal capacity [m3/h] - 12

Maximum overpressure [bar-105Pa] - 120

Motor power [KW] 1~/3~) - 0,37 / 0,37

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 64

Weight [Kg[N]] (1~/3~) - 14,5 [142,2] / 13,5 [132,4]

Pump intake / outlet - 1/2"G / - - -

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 100

SC 100

Nominal capacity [m3/h] - 100

Total final pressure [mbar-hPa] - 150

Maximum overpressure [bar-105Pa] - -

Motor power [KW] 1~/3~) - (-/3,4)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 73

Noise level compressor [Db (A)] - -

Weight [Kg[N]] (1~/3~) - (-/87 [853,4])

Pump intake / outlet - 1-1/2”G

Oil quantity [dm3] - -

Operating temperature [°C] - 80 ÷ 85

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000s.l.m

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 140

SC 140

Nominal capacity [m3/h] - 130

Total final pressure [mbar-hPa] - 150

Maximum overpressure [bar-105Pa] - -

Motor power [KW] 1~/3~) - (-/3,4)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 76

Noise level compressor [Db (A)] - -

Weight [Kg[N]] (1~/3~) - (-/95 [931,9])

Pump intake / outlet - 1-1/2”G

Oil quantity [dm3] - -

Operating temperature [°C] - 85 ÷ 90

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 16

SC 16

Nominal capacity [m3/h] - 16

Total final pressure [mbar-hPa] - 120

Maximum overpressure [bar-105Pa] - 1

Motor power [KW] 1~/3~) - 0,75/ 0,75

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 63

Noise level compressor [Db (A)] - 63

Weight [Kg[N]] (1~/3~) - 31 [304.1] / 33 [323.7]

Pump intake / outlet - 1/2''G/ (1/2''G)

Operating temperature [°C] - 55 ÷ 60

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 25

SC 25

Nominal capacity [m3/h] - 25

Total final pressure [mbar-hPa] - 120

Maximum overpressure [bar-105Pa] - 0,6

Motor power [KW] 1~/3~) - 0,75/ 0,75

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 65

Noise level compressor [Db (A)] - 65

Weight [Kg[N]] (1~/3~) - 30.5 [299,2] / 32.5 [318.8]

Pump intake / outlet - 3/4”G/ (1/2''G)

Operating temperature [°C] - 65 ÷ 70

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 40

SC 40

Nominal capacity [m3/h] - 40

Total final pressure [mbar-hPa] - 120

Maximum overpressure [bar-105Pa] - 0,6

Motor power [KW] 1~/3~) - 1,3/1,3

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 67

Noise level compressor [Db (A)] - 67

Weight [Kg[N]] (1~/3~) - 41.5 [407.1] / 45 [441.4]

Pump intake / outlet - 1”G / (1”G)

Oil quantity [dm3] - -

Operating temperature [°C] - 5 75 ÷ 80

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 5

SC 5

Nominal capacity [m3/h] - 5

Total final pressure [mbar-hPa] - 120

Maximum overpressure [bar-105Pa] - 0,8

Motor power [KW] 1~/3~) - 0,12/ 0,12

Nominal r.p.m [n/min] - 2800

Noise level pump [Db (A)] - 59

Noise level compressor [Db (A)] - 62

Weight [Kg[N]] (1~/3~) - 5,4 [52,9]/ 5,4 [52,9]

Pump intake / outlet - Ø9mm (1/8”G) / 1/8”G

Oil quantity [dm3] - -

Operating temperature [°C] - 65 ÷ 70

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 5CC

SC 5CC

Nominal capacity [m3/h] - 5

Total final pressure [mbar-hPa] - 150

Maximum overpressure [bar-105Pa] - 0,5

Motor power [KW] 1~/3~) - 0,09-24V

Nominal r.p.m [n/min] - 2500

Noise level pump [Db (A)] - 59

Noise level compressor [Db (A)] - 62

Weight [Kg[N]] (1~/3~) - 4,5 [44,1]- 24V

Pump intake / outlet - Ø9mm (1/8”G) / 1/8”G

Oil quantity [dm3] - -

Operating temperature [°C] - 65 ÷ 70

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 60

SC 60

Nominal capacity [m3/h] - 60

Total final pressure [mbar-hPa] - 150

Maximum overpressure [bar-105Pa] - -

Motor power [KW] 1~/3~) - (-/1,5)

Nominal r.p.m [n/min] - 1400

Noise level pump [Db (A)] - 70

Noise level compressor [Db (A)] - -

Weight [Kg[N]] (1~/3~) - (-/66 [647,4])

Pump intake / outlet - 1”G / - - -

Oil quantity [dm3] - -

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m.

On order

Product prices will become visible after signing in.

Oil-free rotary vane vacuum pumps SC 8

SC 8

Nominal capacity [m3/h] - 8

Total final pressure [mbar-hPa] - 150

Maximum overpressure [bar-105Pa] - 0,8

Motor power [KW] 1~/3~) - 0,25/ 0,25

Nominal r.p.m [n/min] - 2800

Noise level pump [Db (A)] - 59

Noise level compressor [Db (A)] - 60

Weight [Kg[N]] (1~/3~) - 8,5 [83,4] / 8,5 [83,4]

Pump intake / outlet - 3/8”G / (1/2”G)

Oil quantity [dm3] - -

Operating temperature [°C] - 70 ÷ 75

Required room temp. for place of installation [°C] - 0 ÷ 40

max humidity/ altitude - 80% / 1000m s.l.m

On order

Product prices will become visible after signing in.

Filters

Oil-free pump systems CBL 106/300

Oil-free pump systems CBL 205/500

Oil-free pump systems CBL 2X305/2000

Oil-free pump systems CBL 305/1000

Oil-free pump systems CBL 305/1500

Oil-free pump systems CBL 3X305/3000

Oil-free rotary vane vacuum pumps CB 10

Oil-free rotary vane vacuum pumps CB 12

Oil-free rotary vane vacuum pumps CC 100

Oil-free rotary vane vacuum pumps CC 140

Oil-free rotary vane vacuum pumps CC 60

Oil-free rotary vane vacuum pumps CC 80

Oil-free rotary vane vacuum pumps SB 10

Oil-free rotary vane vacuum pumps SB 10TV

Oil-free rotary vane vacuum pumps SB 12

Oil-free rotary vane vacuum pumps SC 100

Oil-free rotary vane vacuum pumps SC 140

Oil-free rotary vane vacuum pumps SC 16

Oil-free rotary vane vacuum pumps SC 25

Oil-free rotary vane vacuum pumps SC 40

Oil-free rotary vane vacuum pumps SC 5

Oil-free rotary vane vacuum pumps SC 5CC

Oil-free rotary vane vacuum pumps SC 60

Oil-free rotary vane vacuum pumps SC 8
