Side channel blowers

Airknife L=1300mm

25LAALHRH-1300

On order

Product prices will become visible after signing in.

Airknife L=600mm

25LAALHRH-0600

Available

Product prices will become visible after signing in.

Airknife L=900mm

25LAALHRH-0900

On order

Product prices will become visible after signing in.

Ball valve VM3, 1"

25VM3

On order

Product prices will become visible after signing in.

Ball valve VM4, 1" 1/4

25VM4

On order

Product prices will become visible after signing in.

Ball valve VM5, 1" 1/2

25VM5

On order

Product prices will become visible after signing in.

Ball valve VM6, 2"

25VM6

On order

Product prices will become visible after signing in.

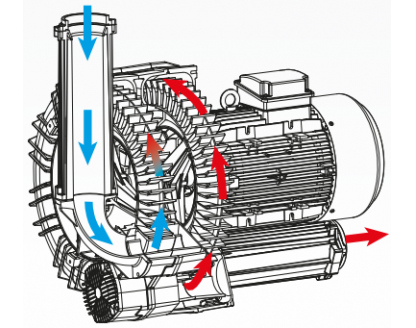

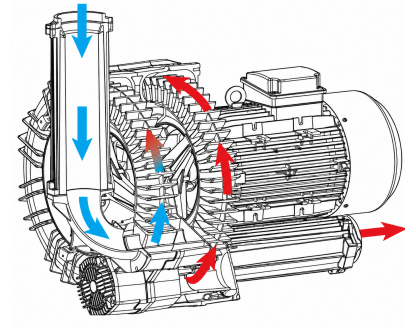

Blower SCL K05TD, 2 impellers, 220-240/345-415 V - 50 Hz, 4 kW, IE3

SK05TD50+0033

Power [kW] - 4

Power supply [V/Hz] - 220-240, 245-415/50

Speed [rpm] - 2910

Flow rate [m3/h] - 215

Suction [mbar] - 400

Compression [mbar] - 475

Noise level [dB(A)] - 70.6

Weight [kg] - 45.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K06TD, 2 impellers, 220-240/345-415 V - 50 Hz, 4 kW, IE3

SK06TD50+0029

Power [kW] - 4

Power supply [V/Hz] - 220-240, 245-415/50

Speed [rpm] - 2910

Flow rate [m3/h] - 312

Suction [mbar] - 275

Compression [mbar] - 275

Noise level [dB(A)] - 72.6

Weight [kg] - 52.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K06TD, 2 impellers, 345-415/600-720 V - 50 Hz, 5,5 kW, IE3

SK06TD50+0028

Power [kW] - 5.5

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 312

Suction [mbar] - 400

Compression [mbar] - 425

Noise level [dB(A)] - 72.6

Weight [kg] - 68.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K06TD, 2 impellers, 345-415/600-720 V - 50 Hz, 7,5 kW, IE3

SK06TD50+0030

Power [kW] - 7.5

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 312

Suction [mbar] - 550

Compression [mbar] - 550

Noise level [dB(A)] - 72.6

Weight [kg] - 73.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K07TD, 2 impellers, 345-415/600-720 V - 50 Hz, 5,5 kW, IE3

SK07TD00+0017

Power [kW] - 5.5

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 416

Suction [mbar] - 350

Compression [mbar] - 320

Noise level [dB(A)] - 74.6

Weight [kg] - 89.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K07TD, 2 impellers, 345-415/600-720 V - 50 Hz, 7,5 kW, IE3

SK07TD00+0018

Power [kW] - 7.5

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 416

Suction [mbar] - 400

Compression [mbar] - 475

Noise level [dB(A)] - 74.6

Weight [kg] - 94.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K07TD, 2 impellers, 345-415/600-720 V - 50 Hz, 9,2 kW, IE3

SK07TD00+0019

Power [kW] - 9.2

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 518

Suction [mbar] - 375

Compression [mbar] - 325

Noise level [dB(A)] - 77

Weight [kg] - 100.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K08TD, 2 impellers, 345-415/600-720 V - 50 Hz, 11 kW, IE3

SK08TD00+0042

Power [kW] - 11

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 518

Suction [mbar] - 550

Compression [mbar] - 550

Noise level [dB(A)] - 77

Weight [kg] - 112

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K08TD, 2 impellers, 345-415/600-720 V - 50 Hz, 15 kW, IE3

SK08TD00+0043

Moc [kW] - 15

Zasilanie [V/Hz] - 345-415, 600-720/50

Prędkość obr. [obr./min] - 2940

Wydajność [m3/h] - 518

Ssanie [mbar] - 625

Sprężanie [mbar] - 625

Poziom hałasu [dB(A)] - 77

Waga [kg] - 129

Klasa silnika - IE3

Zabezpieczenie [IP] - 55

Izolacja - F

On order

Product prices will become visible after signing in.

Blower SCL K08TD, 2 impellers, 345-415/600-720 V - 50 Hz, 7,5 kW, IE3

SK08TD00+0039

Moc [kW] - 7.5

Zasilanie [V/Hz] - 345-415, 600-720/50

Prędkość obr. [obr./min] - 2940

Wydajność [m3/h] - 518

Ssanie [mbar] - 375

Sprężanie [mbar] - 325

Poziom hałasu [dB(A)] - 77

Waga [kg] - 100.5

Klasa silnika - IE3

Zabezpieczenie [IP] - 55

Izolacja - F

On order

Product prices will become visible after signing in.

Blower SCL K08TD, 2 impellers, 345-415/600-720 V - 50 Hz, 9,2 kW, IE3

SK08TD00+0041

Power [kW] - 9.2

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 518

Suction [mbar] - 425

Compression [mbar] - 425

Noise level [dB(A)] - 77

Weight [kg] - 100.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K09TD, 2 impellers, 345-415/600-720 V - 50 Hz, 11 kW, IE3

SK09TD00+0030

Power [kW] - 11

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 657

Suction [mbar] - 390

Compression [mbar] - 390

Noise level [dB(A)] - 79.9

Weight [kg] - 130.5

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K09TD, 2 impellers, 345-415/600-720 V - 50 Hz, 15 kW, IE3

SK09TD00+0031

Power [kW] - 15

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 657

Suction [mbar] - 450

Compression [mbar] - 550

Noise level [dB(A)] - 79.9

Weight [kg] - 151

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K09TD, 2 impellers, 345-415/600-720 V - 50 Hz, 18,5 kW, IE3

SK09TD00+0032

Power [kW] - 18.5

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 657

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K10TD, 2 impellers, 345-415/600-720 V - 50 Hz, 11 kW, IE3

SK10TD00+0027

Power [kW] - 11

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 804

Suction [mbar] - 325

Compression [mbar] - 325

Noise level [dB(A)] - 83.9

Weight [kg] - 137

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K10TD, 2 impellers, 345-415/600-720 V - 50 Hz, 15 kW, IE3

SK10TD00+0028

Power [kW] - 15

Power supply [V/Hz] - 345-415, 600-720/50

Speed [rpm] - 2940

Flow rate [m3/h] - 804

Suction [mbar] - 450

Compression [mbar] - 450

Noise level [dB(A)] - 83.9

Weight [kg] - 154

Class - IE3

Protection class [IP] - 55

Insulation Class - F

On order

Product prices will become visible after signing in.

Blower SCL K11TD, 2 impellers, 345-415/600-720 V - 50 Hz, 15 kW, IE3

SK11TD00+0028

Moc [kW] - 15

Zasilanie [V/Hz] - 345-415, 600-720/50

Prędkość obr. [obr./min] - 2940

Wydajność [m3/h] - 903

Ssanie [mbar] - 350

Sprężanie [mbar] - 375

Poziom hałasu [dB(A)] - 84.2

Waga [kg] - 167.5

Klasa silnika - IE3

Zabezpieczenie [IP] - 55

Izolacja - F

On order

Product prices will become visible after signing in.

The most distinguishing features of the side channel blowers offered by Vervo are:

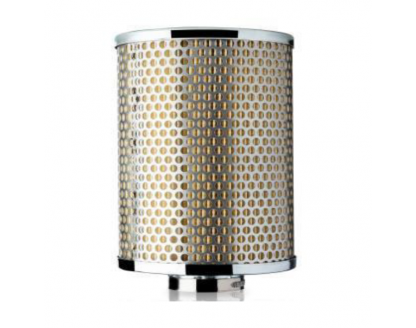

Vervo's offer also includes accessories for side channel blowers, including:
