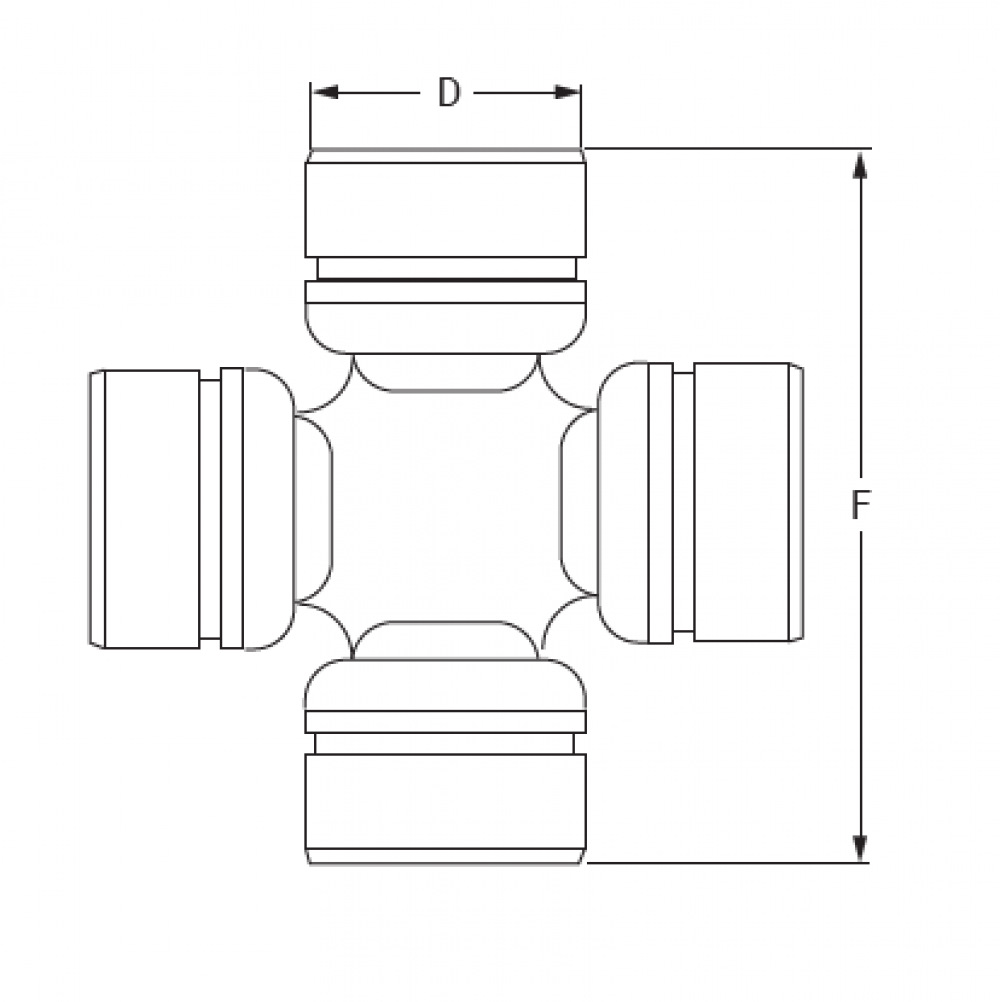

Cardan joint SB.CA 2255

Name: Cardan joint SB.CA 2255
SKU: SB.CA 2255-MTM

Availability: Available

product code: SB.CA 2255-MTM

product ean: 5907772129210

D [mm]	22
F [mm]	55
Weight [kg]	0.2

Download as PDF

Cardan joint SB.CA 30,2x80

SB.CA 30,2x80-MTM

D [mm] - 30.2

F [mm] - 80

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 170-200-15

SIMMERING 170-200-15-MTM

internal dimension [mm] - 170

external dimension [mm] - 200

height [mm] - 15

Available

Product prices will become visible after signing in.

Cardan joint SB.CA 27x81,7

SB.CA 27x81,7-MTM

D [mm] - 27

F [mm] - 81,7

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 40-52-7

SIMMERING 40-52-7-MTM

internal dimension [mm] - 40

external dimension [mm] - 52

height [mm] - 7

Available

Product prices will become visible after signing in.

Adapter sleeve H305

H305-MTM

d1 [mm] - 20

d [mm] - 25

D [mm] - 38

B1 [mm] - 29

B2 [mm] - 8

G [mm] - M25x1,00

Weight [kg] - 0,071

Nut model - KM 05

Washer model - MB 05

Self-aligning ball bearing model - 1305K / 2205K

Spherical bearing model - 21305K / 22205K

Available

Product prices will become visible after signing in.

Linear Bearings LM13 UU

LM13-UU-MTM

d [mm] - 13

D [mm] - 23

B [mm] - 32

W [mm] - 23

B1 [mm] - 1,3

D1 [mm] - 22

Weight [kg] - 0,0430

load rating dynam. [N] - 770

load rating stat. [N] - 500

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP205

UCP205-MTM

d [mm] - 25

h [mm] - 36,5

a [mm] - 140

e [mm] - 105

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 15

W [mm] - 71

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Adapter sleeve H309

H309-MTM

d1 [mm] - 40

d [mm] - 45

D [mm] - 65

B1 [mm] - 39

B2 [mm] - 11

G [mm] - M45 x 1,50

Weight [kg] - 0,230

Nut model - KM 09

Washer model - MB 09

Self-aligning ball bearing model - 1309K / 2209K

Spherical bearing model - 21309K / 22209K

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP208

UCP208-MTM

d [mm] - 40

h [mm] - 49,2

a [mm] - 184

e [mm] - 137

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 18

W [mm] - 100

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL209

UCFL209-MTM

d [mm] - 45

a [mm] - 188

e [mm] - 148

i [mm] - 22

g [mm] - 15

l [mm] - 38

S [mm] - 19

b [mm] - 108

z [mm] - 52,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP209

UCP209-MTM

d [mm] - 45

h [mm] - 54

a [mm] - 190

e [mm] - 146

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 20

W [mm] - 106

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA206

UCPA206-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 94

e [mm] - 66

b [mm] - 50

t [mm] - M14

r [mm] - 18

g [mm] - 12

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14 x 2,00

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
