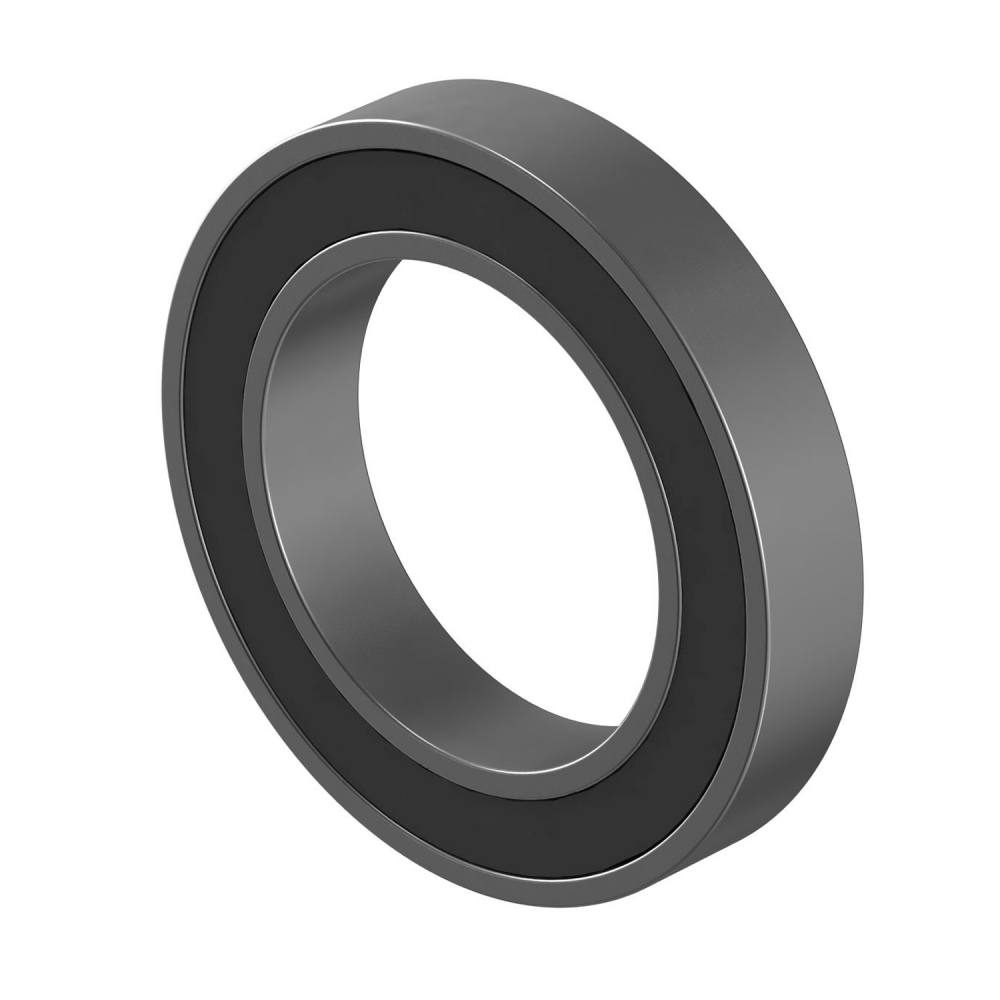

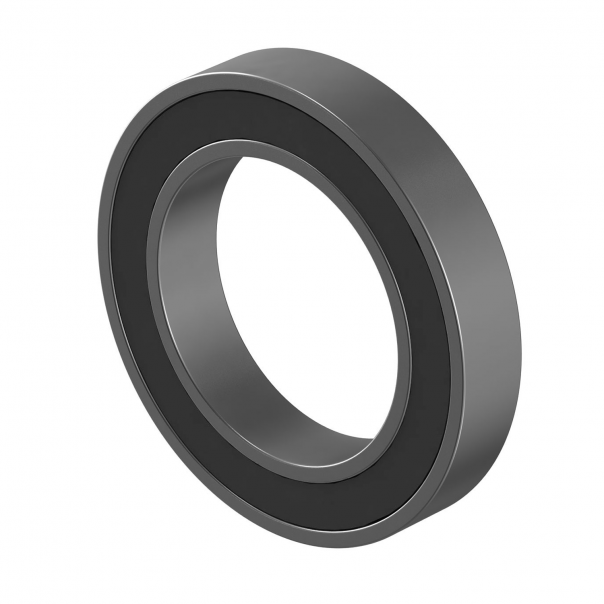

Deep groove ball bearing 61906 2RS

Name: Deep groove ball bearing 61906 2RS
SKU: 61906 (6906)-2RS-MTM

Availability: On order

product code: 61906 (6906)-2RS-MTM

product ean: 5907772112823

Product prices will become visible after signing in.

d [mm]	30
D [mm]	47
B [mm]	9
nośność dynam. [N]	7280
nośność stat. [N]	4550
Waga [kg]	0,051

Download as PDF

Deep groove ball bearing 61904 2RS

61904 (6904)-2RS-MTM

d [mm] - 20

D [mm] - 37

B [mm] - 9

nośność dynam. [N] - 6370

nośność stat. [N] - 3650

Waga [kg] - 0,038

Available

Product prices will become visible after signing in.

Linear Bearing SMA20 GUU

SMA20-GUU-MTM

h [mm] - 21

E [mm] - 27

W [mm] - 54

L [mm] - 50

F [mm] - 41

G [mm] - 35

T [mm] - 11

B [mm] - 40

C [mm] - 40

K [mm] - 7

S1 [mm] - M6 x 12

S2 [mm] - 5,2

Weight [kg] - 0,255

load rating dynam. [N] - 882

load rating stat. [N] - 1370

Available

Product prices will become visible after signing in.

Double row angular contact ball bearing 3205 2RS TVP

3205-2RS-TVP-MTM

d [mm] - 25

D [mm] - 52

B [mm] - 20,6

load rating dynam. [N] - 20300

load rating stat. [N] - 14000

Weight [kg] - 0,180

Available

Product prices will become visible after signing in.

Double row angular contact ball bearing 3206 2RS TVP

3206-2RS-TVP-MTM

d [mm] - 30

D [mm] - 62

B [mm] - 23,8

nośność dynam. [N] - 28100

nośność stat. [N] - 20000

Waga [kg] - 0,290

Available

Product prices will become visible after signing in.

Spherical plain bearing GE025 ES2RS

GE025-ES2RS-MTM

d [mm] - 25

D [mm] - 42

B [mm] - 20

C [mm] - 16

dk [mm] - 35.5

Weight [kg] - 0.115

load rating dynam. [N] - 48000

load rating stat. [N] - 240000

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61908 2RS

61908 (6908)-2RS-MTM

d [mm] - 40

D [mm] - 62

B [mm] - 12

load rating dynam. [N] - 13800

load rating stat. [N] - 9300

Weight [kg] - 0,12

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP205

UCP205-MTM

d [mm] - 25

h [mm] - 36,5

a [mm] - 140

e [mm] - 105

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 15

W [mm] - 71

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Linear Bearing SMA12 GUU

SMA12-GUU-MTM

h [mm] - 15

E [mm] - 21

W [mm] - 42

L [mm] - 36

F [mm] - 28

G [mm] - 24

T [mm] - 8

B [mm] - 30,5

C [mm] - 26

K [mm] - 5,75

S1 [mm] - M5 x 12

S2 [mm] - 4,3

Waga [kg] - 0,112

nośność dynam. [N] - 470

nośność stat. [N] - 723

On order

Product prices will become visible after signing in.

Spherical roller bearings 22322 MW33

22322-MW33-MTM

d [mm] - 110

D [mm] - 240

B [mm] - 80

nośność dynam. [N] - 725000

nośność stat. [N] - 965000

Waga [kg] - 17,50

Available

Product prices will become visible after signing in.

Linear Bearing SHF20

SHF20-MTM

⌀ Wałka - 20

W [mm] - 60

L [mm] - 20

T [mm] - 8

F [mm] - 37

G [mm] - 34

B [mm] - 48

S [mm] - 7

Zacisk śruby - M5

Montaż śruby - M6

Waga [kg] - 0,040

On order

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

On order

Product prices will become visible after signing in.

Deep groove ball bearing 61803 (6803) 2RS

61803 (6803)-2RS-MTM

d [mm] - 17

D [mm] - 26

B [mm] - 5

load rating dynam. [N] - 1680

load rating stat. [N] - 930

Weight [kg] - 0,008

Available

Product prices will become visible after signing in.
