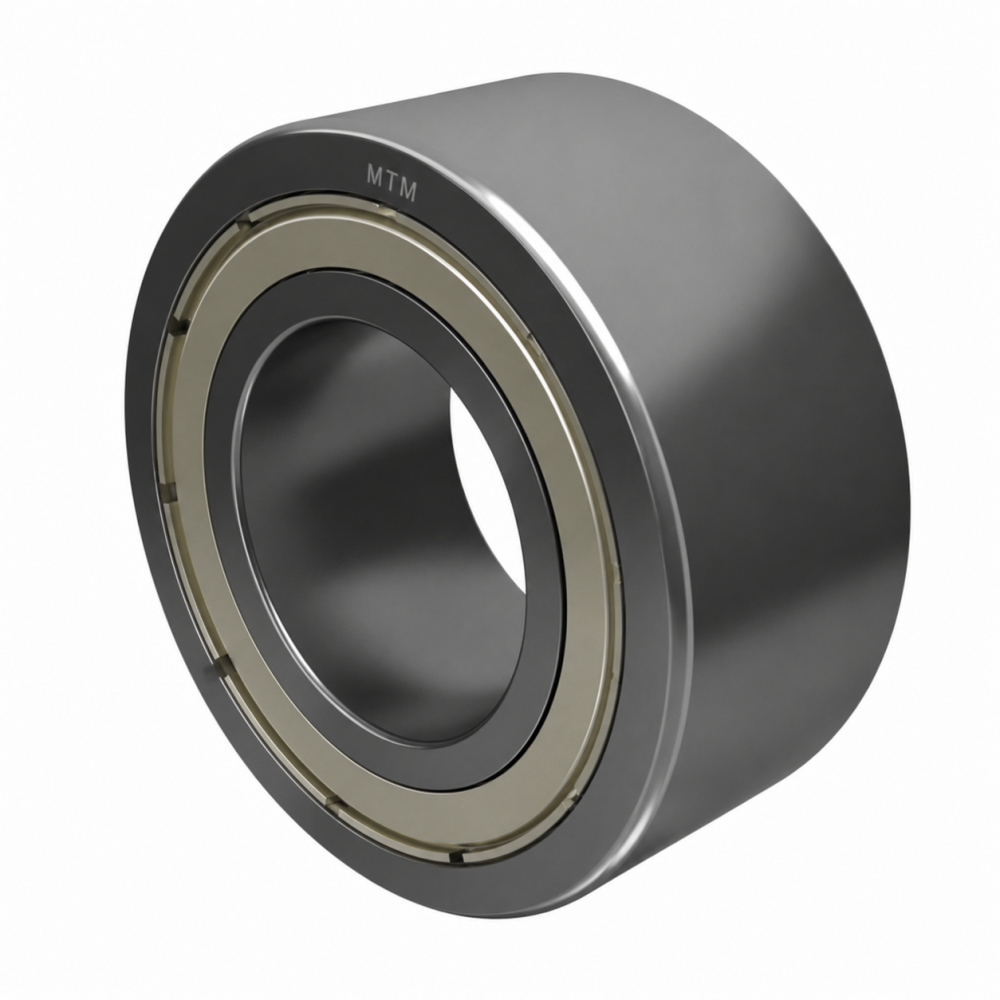

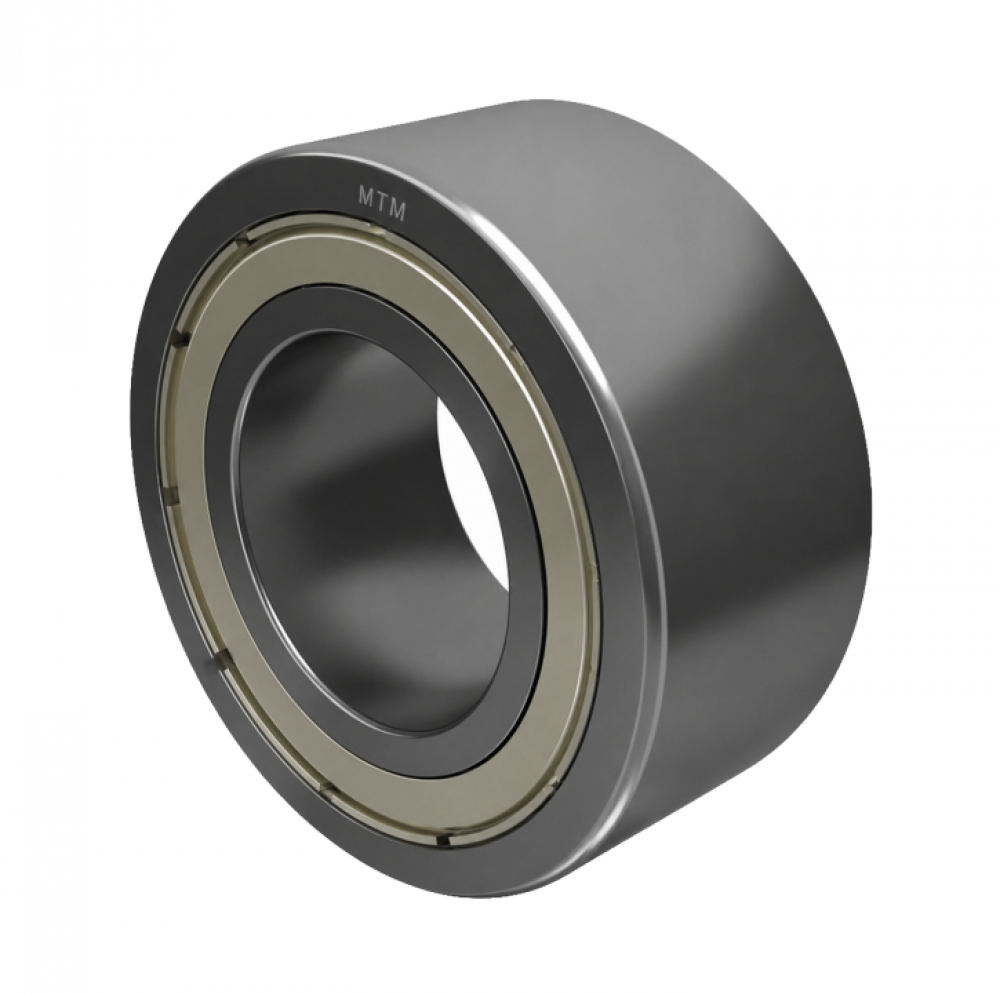

Double row angular contact ball bearing 3206 ZZ TVP

Name: Double row angular contact ball bearing 3206 ZZ TVP
SKU: 3206-ZZ-TVP-MTM

Availability: Available

product code: 3206-ZZ-TVP-MTM

product ean: 5907772106051

Product prices will become visible after signing in.

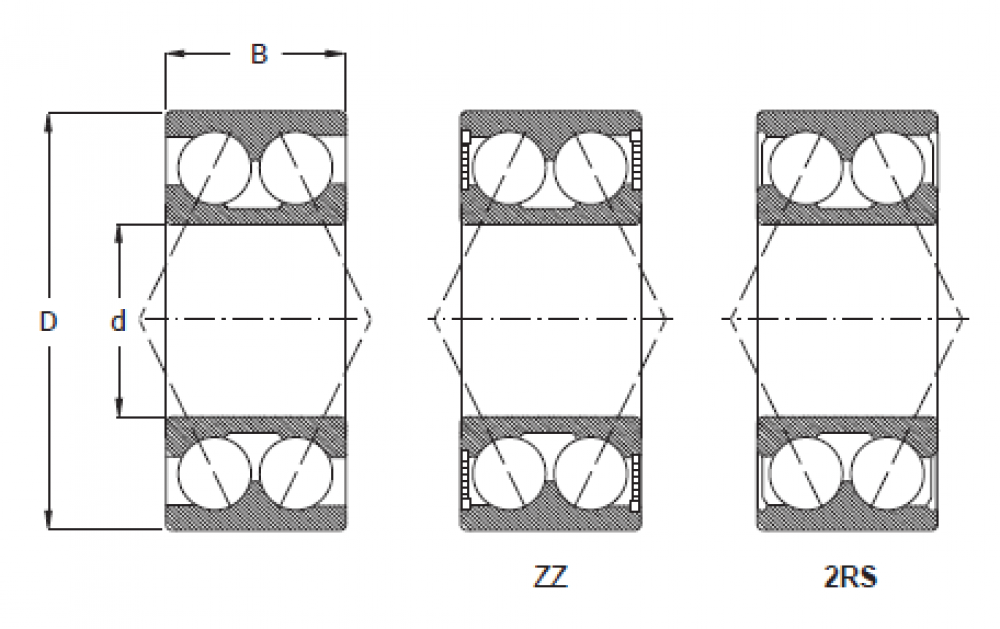

d [mm]	30
D [mm]	62
B [mm]	23,8
nośność dynam. [N]	28100
nośność stat. [N]	20000
Waga [kg]	0,290
