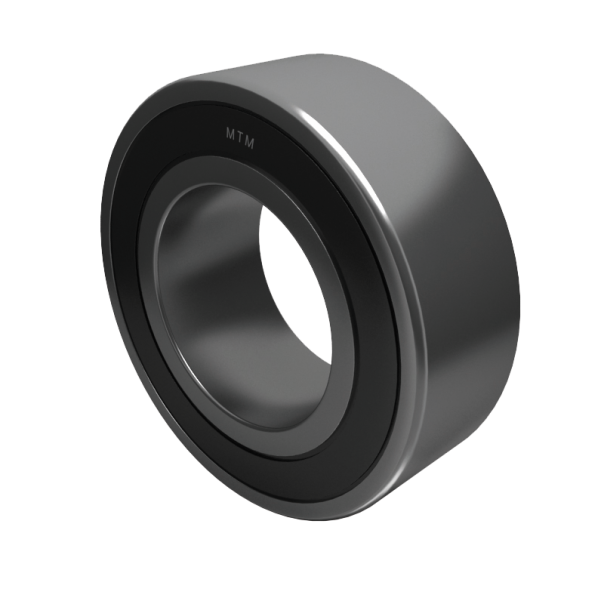

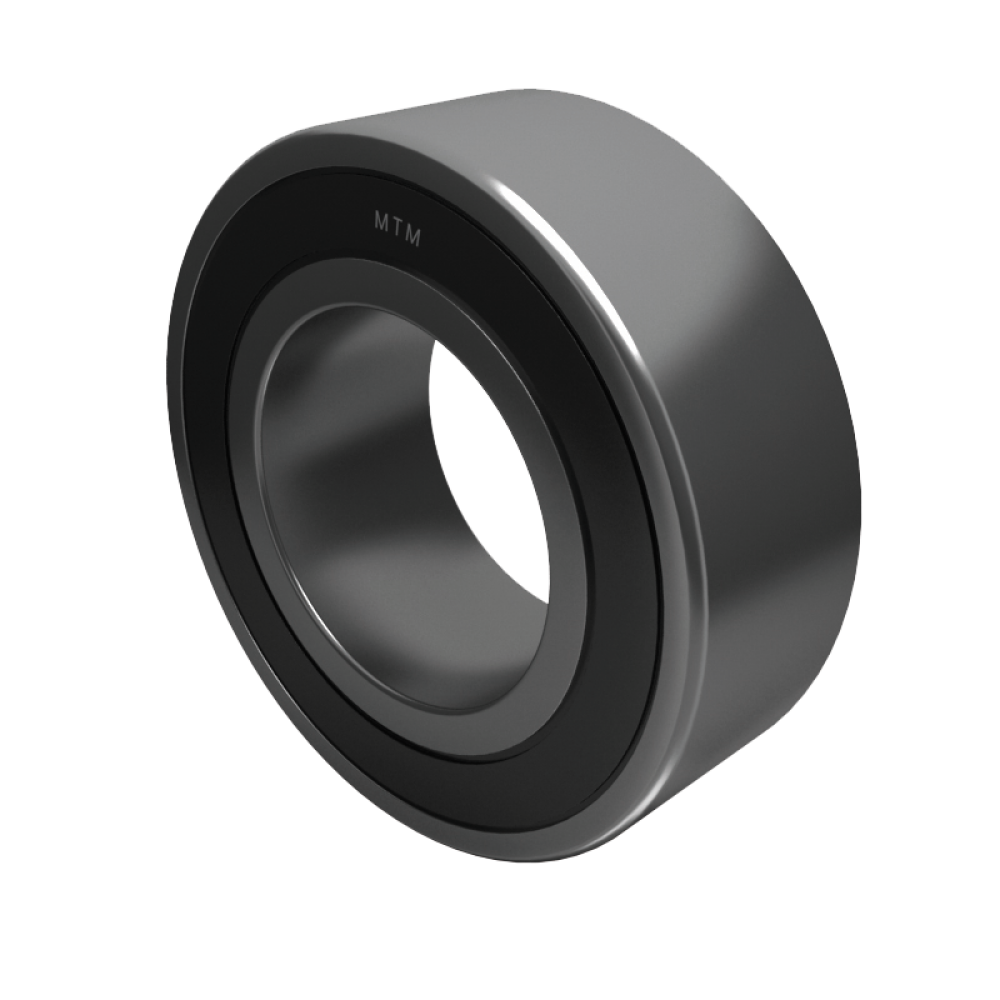

Double row angular contact ball bearing 3208 2RS TVP

Name: Double row angular contact ball bearing 3208 2RS TVP
SKU: 3208-2RS-TVP-MTM

Availability: Available

product code: 3208-2RS-TVP-MTM

product ean: 5907772106099

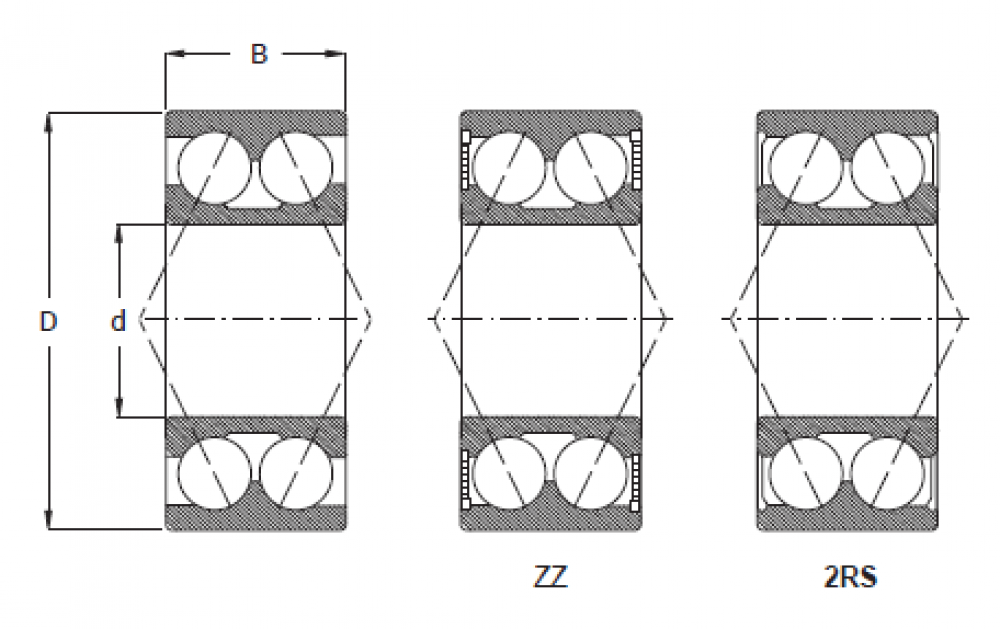

d [mm]	40
D [mm]	80
B [mm]	30,2
load rating dynam. [N]	44900
load rating stat. [N]	33500
Weight [kg]	0,590

Download as PDF

Thrust ball bearing 51112

51112-MTM

d [mm] - 60

D [mm] - 85

T [mm] - 17

load rating dynam. [N] - 36400

load rating stat. [N] - 93000

Weight [kg] - 0,330

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Double row angular contact ball bearing 3203 2RS TVP

3203-2RS-TVP-MTM

d [mm] - 17

D [mm] - 40

B [mm] - 17,5

load rating dynam. [N] - 14000

load rating stat. [N] - 8650

Weight [kg] - 0,096

Available

Product prices will become visible after signing in.

Pillow Block Stainless Steel Thermoplastic SUCF204-TP

SUCF204-TP-MTM

d [mm] - 20

a [mm] - 86

e [mm] - 63,5

i [mm] - 15

g [mm] - 12

l [mm] - 25,5

s [mm] - 12

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Available

Product prices will become visible after signing in.

Linear Bearing SHF30

SHF30-MTM

⌀ Diameter - 30

W [mm] - 80

L [mm] - 30

T [mm] - 12

F [mm] - 50

G [mm] - 46

B [mm] - 64

S [mm] - 9

Bolt bracket - M6

Bolt assembly - M8

Weight [kg] - 0,110

Available

Product prices will become visible after signing in.

Linear Bearing SHF08

SHF08-MTM

⌀ Diameter - 8

W [mm] - 43

L [mm] - 10

T [mm] - 5

F [mm] - 24

G [mm] - 20

B [mm] - 32

S [mm] - 5,5

Bolt bracket - M4

Bolt assembly - M5

Weight [kg] - 0,013

Available

Product prices will become visible after signing in.

Insert ball bearing stainless SUC207

SUC207-MTM

d [mm] - 35

D [mm] - 72

Bi [mm] - 42,9

Be [mm] - 20

r [mm] - 2

n [mm] - 17,5

m [mm] - 25,4

G [mm] - 6

ds [mm] - M8 x 1,00

T [mm] - 5,8

W [mm] - 48

load rating dynam. [N] - 5780

load rating stat. [N] - 3460

Weight [kg] - 0,47

Available

Product prices will become visible after signing in.

Pillow Block Stainless Steel Thermoplastic SUCP206-TP

SUCP206-TP-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 163

e [mm] - 119

b [mm] - 46

S1 [mm] - 14

S2 [mm] - 18

g [mm] - 17,8

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Śruba - M10

Uwaga - -

Available

Product prices will become visible after signing in.

Linear Bearing SMA12L UU

SMA12L-UU-MTM

h [mm] - 15

E [mm] - 21

W [mm] - 42

L [mm] - 70

F [mm] - 28

G [mm] - 24

T [mm] - 8

B [mm] - 30,5

C [mm] - 50

K [mm] - 5,75

S1 [mm] - M5 x 12

S2 [mm] - 4,3

Weight [kg] - 0,205

load rating dynam. [N] - 750

load rating stat. [N] - 1450

Available

Product prices will become visible after signing in.

Linear Bearings LM08 UU

LM08-UU-MTM

d [mm] - 8

D [mm] - 15

B [mm] - 24

W [mm] - 17,5

B1 [mm] - 1,1

D1 [mm] - 14,3

Weight [kg] - 0,0150

load rating dynam. [N] - 400

load rating stat. [N] - 260

Available

Product prices will become visible after signing in.

Linear Bearing LMF08 UU

LMF08-UU-MTM

d [mm] - 8

D [mm] - 15

L [mm] - 24

D1 [mm] - 32

H [mm] - 5

h [mm] - 3,1

d1 [mm] - 3,5

d2 [mm] - 6

PCD [mm] - 24

Weight [kg] - 0,035

load rating dynam. [N] - 260

load rating stat. [N] - 400

Available

Product prices will become visible after signing in.

Linear Bearings LMK50 UU

LMK50-UU-MTM

d [mm] - 50

D [mm] - 80

L [mm] - 100

D1 [mm] - 116

H [mm] - 13

h [mm] - 8,1

d1 [mm] - 9

d2 [mm] - 14

K [mm] - 92

PCD [mm] - 98

Waga [kg] - 1,720

nośność dynam. [N] - 3820

nośność stat. [N] - 7830

Available

Product prices will become visible after signing in.
