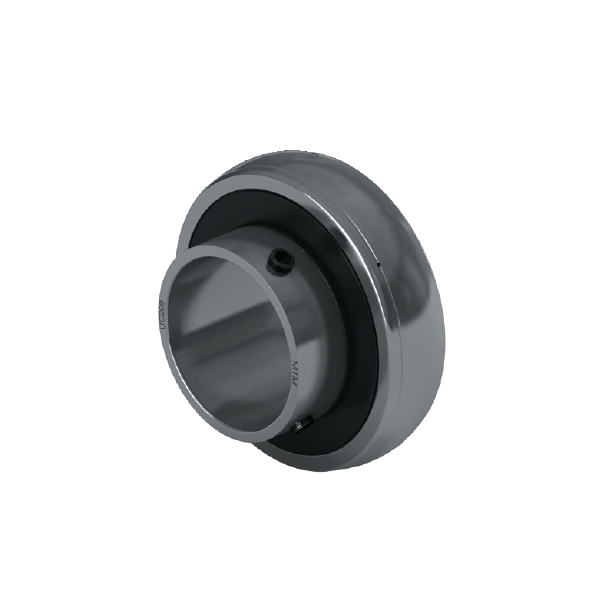

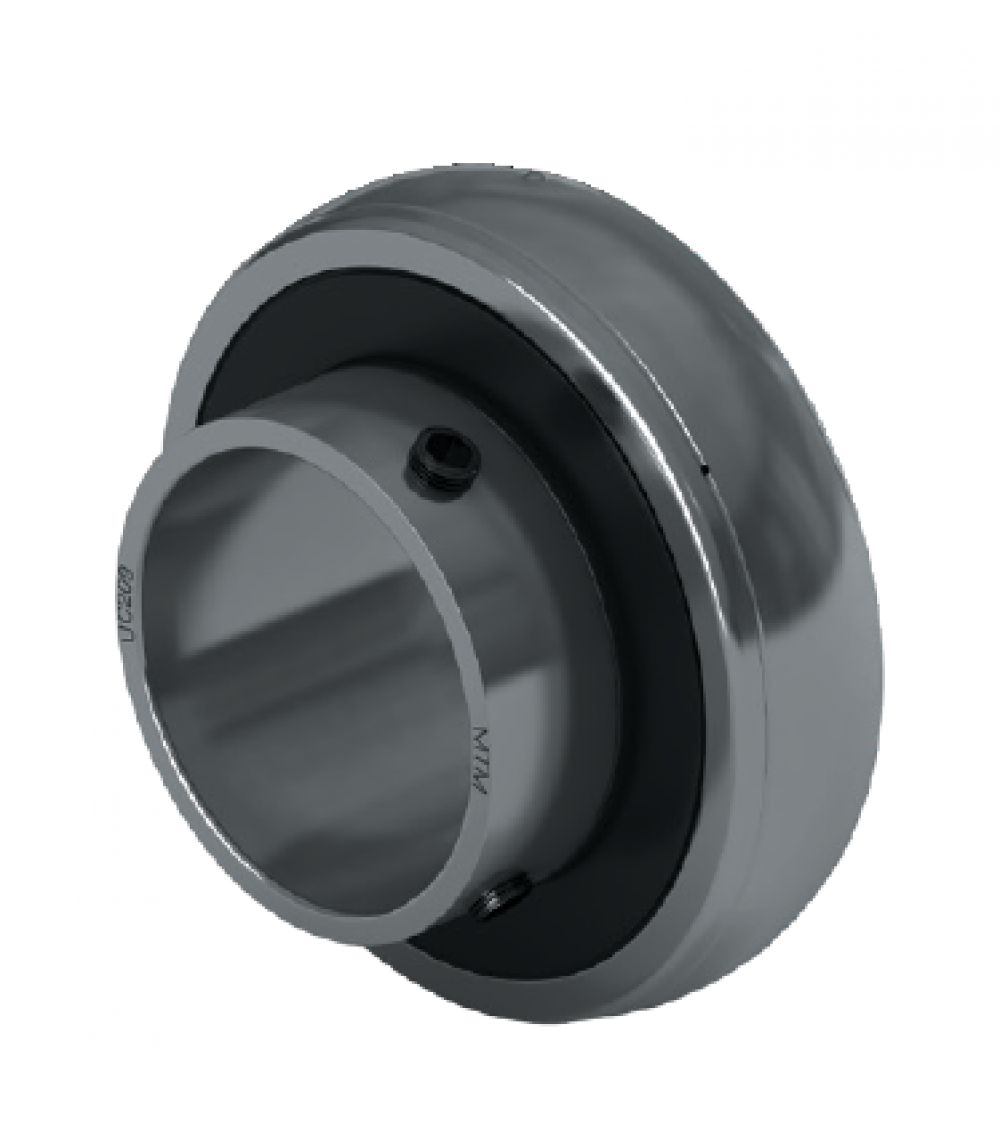

Insert ball bearing UC308
Available
UC308-MTM
5907772148235

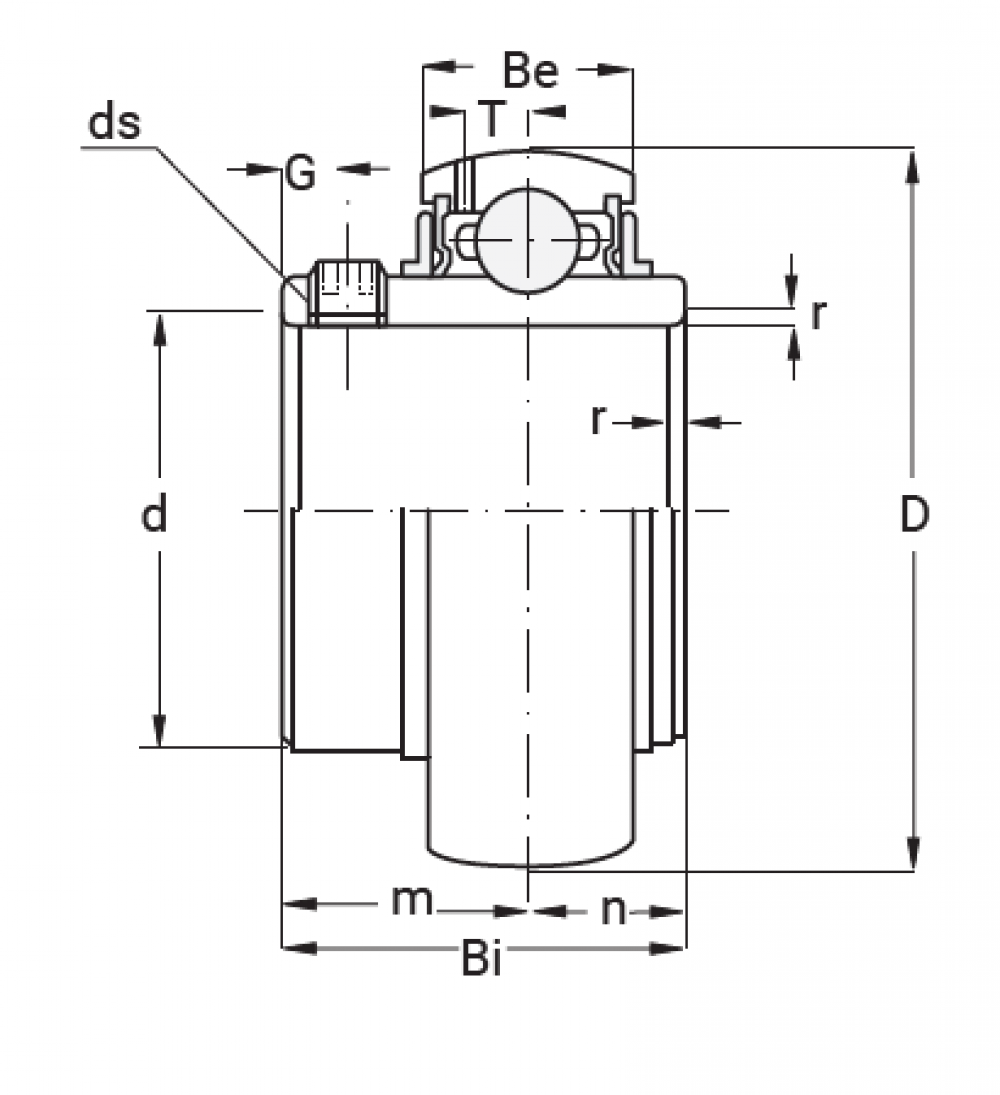

Parametry techniczne
| d [mm] | 40 |
| D [mm] | 90 |
| Bi [mm] | 52 |
| Be [mm] | 27 |
| r [mm] | 2,5 |
| n [mm] | 19 |
| m [mm] | 33 |
| G [mm] | 10 |
| ds [mm] | M10x1,25 |
| T [mm] | 8,2 |
| nośność dynam. [N] | 31200 |
| nośność stat. [N] | 22200 |
| Waga [kg] | 1,00 |
