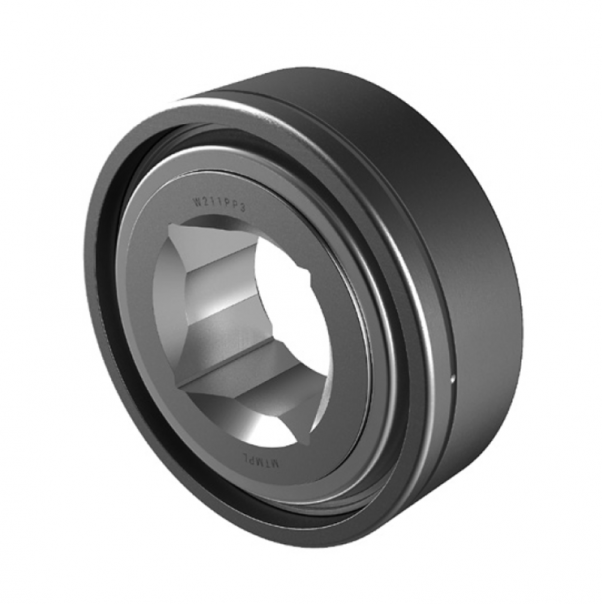

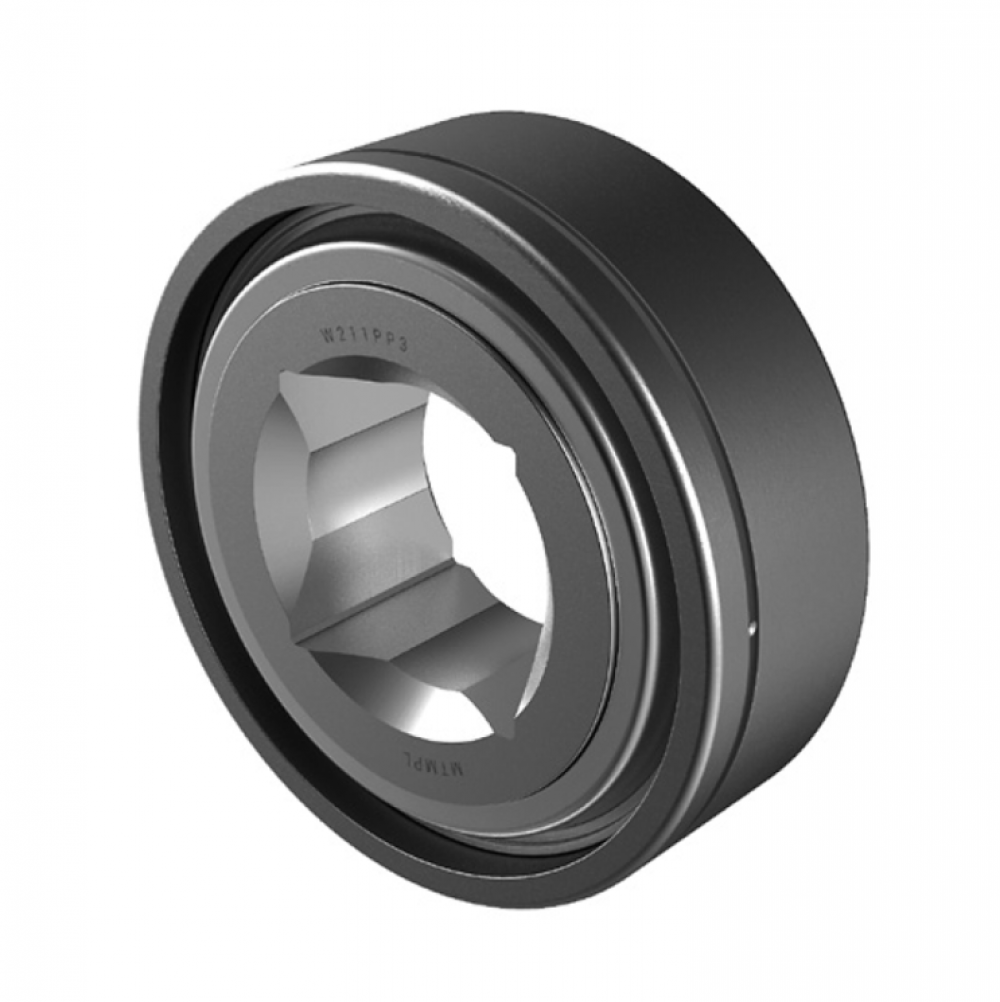

Ball bearing with square bore GW211 PP3

Name: Ball bearing with square bore GW211 PP3
SKU: GW211-PP3-MTM

Availability: Available

product code: GW211-PP3-MTM

product ean: 5907772120019

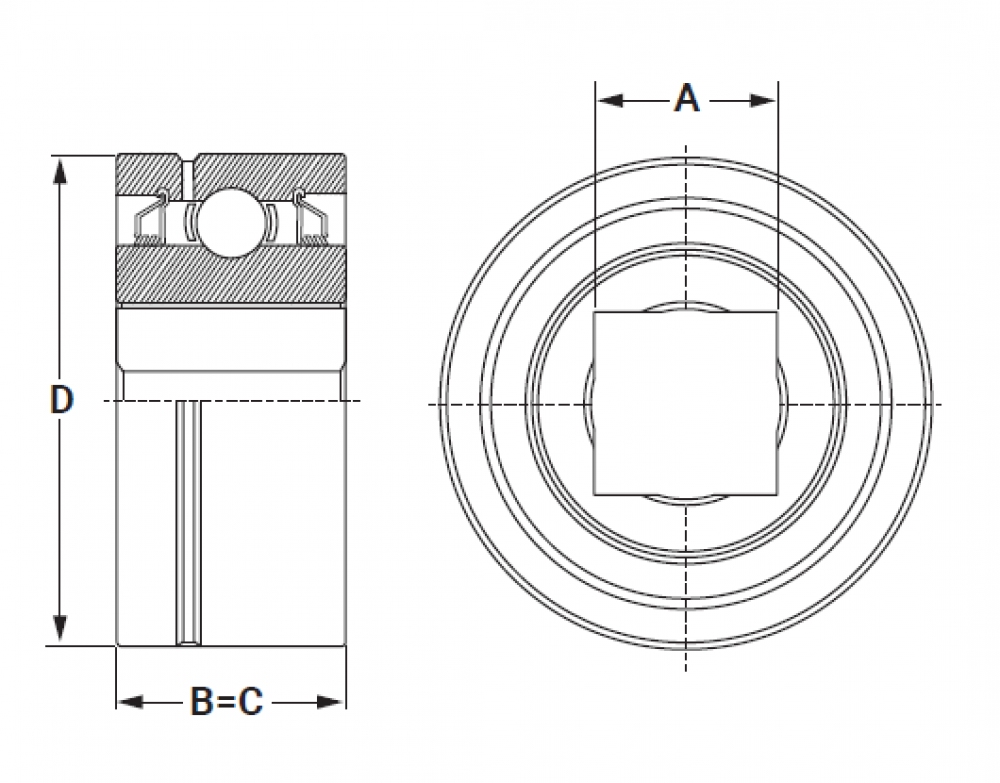

d [mm]	39.890
A [mm]	39.100
D g6 [mm]	100.000
B [mm]	33.325
C [mm]	33.325
Waga [kg]	1.270
nośność dynam. [N]	39800
nośność stat. [N]	23900

Download as PDF
