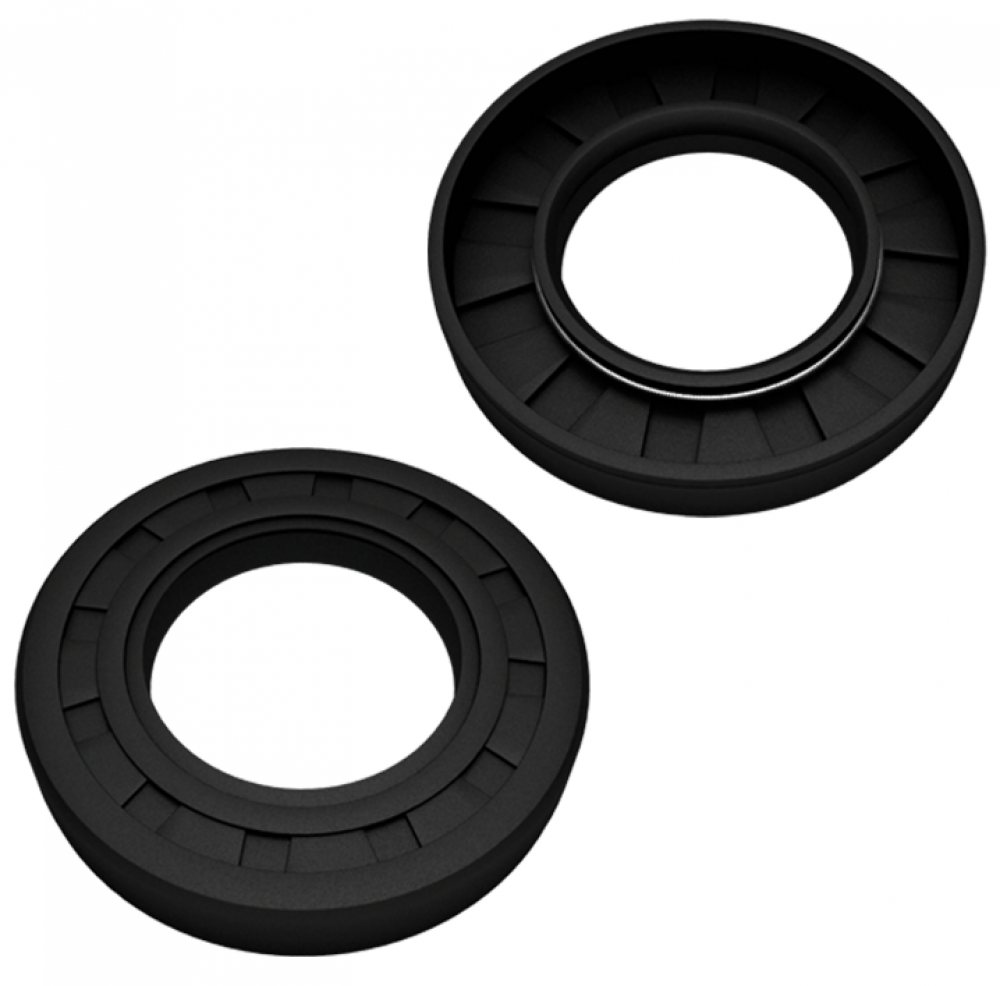

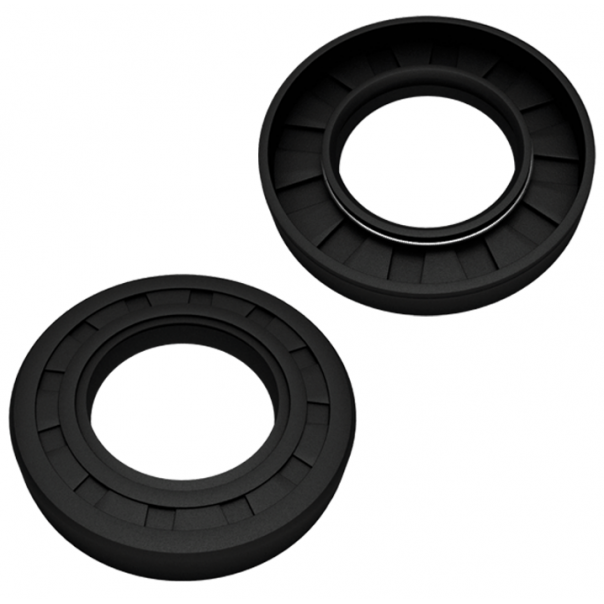

Oil Seal SIMMERING 45-70-10

Name: Oil Seal SIMMERING 45-70-10
SKU: SIMMERING 45-70-10-MTM

Availability: Available

product code: SIMMERING 45-70-10-MTM

product ean: 5907772135280

wymiar wewnętrzny [mm]	45
wymiar zewnętrzny [mm]	70
wysokość [mm]	10

Download as PDF

Oil Seal SIMMERING 70-95-10

SIMMERING 70-95-10-MTM

internal dimension [mm] - 70

external dimension [mm] - 95

height [mm] - 10

Available

Product prices will become visible after signing in.

Rod 60mm length 2m

Rod 60mm (2m.)-MTM

⌀ Wałka - 60

L [mm] - 2000

Waga [kg/m] - 44,5

Tolerancja średnicy ISO g6 [μm] - -10/-29

Tolerancja okrągłości T1 [μm] - <8

Tolerancja równoległości T2 [μm] - 19

Tolerancja prostoliniowości T3 [μm] - 0,15

Grubość warstwy hartowanej [mm] - ≥3

Twardość [HRC] - 58±2

Chropowatość powierzchni [Ra.] - 0,4-0,8

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 30-62-7

SIMMERING 30-62-7-MTM

internal dimension [mm] - 30

external dimension [mm] - 62

height [mm] - 7

Available

Product prices will become visible after signing in.

Spherical plain bearing GE060 ES2RS

GE060-ES2RS-MTM

d [mm] - 60

D [mm] - 90

B [mm] - 44

C [mm] - 36

dk [mm] - 80

Weight [kg] - 1,030

load rating dynam. [N] - 245000

load rating stat. [N] - 1220000

Available

Product prices will become visible after signing in.

Pressed Housing Flange Unit

PF205-MTM

A [mm] - 95

E [mm] - 76

M [mm] - 9

S [mm] - 9

T [mm] - 2

Bolt - M8

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 35-52-10

SIMMERING 35-52-10-MTM

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF207

UCF207-MTM

d [mm] - 35

a [mm] - 117

e [mm] - 92

i [mm] - 19

g [mm] - 16

l [mm] - 34

S [mm] - 14

Z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Sliding bush TUP1/60x60

TUP1/60x60-MTM

axle diameter [mm] - 60

hole [mm] - 65

lenght [mm] - 30

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 20-34-7

SIMMERING 20-34-7-MTM

internal dimension [mm] - 20

external dimension [mm] - 34

height [mm] - 7

Available

Product prices will become visible after signing in.

Retaining ring SEGZ40(100pcs)

SEGZ40(100szt)-MTM

d1 [mm] - 40

d2 [mm] - 37,5

d3 [mm] - 36,5

d5 min [mm] - 2,5

amax [mm] - 6

~b [mm] - 4,4

s +/- 4% [mm] - 1,75

m H13 [mm] - 1,85

n min [mm] - 3,8

Available

Product prices will become visible after signing in.

Adapter sleeve H316

H316-MTM

d1 [mm] - 70

d [mm] - 80

D [mm] - 105

B1 [mm] - 59

B2 [mm] - 17

G [mm] - M80 x 2,0

Waga [kg] - 0,950

Model nakrętki - KM 16

Model podkładki - MB16

Model łożyska kulkowo-wahliwego - 1316K / 2216K

Model łożyska baryłkowego - 21316K / 22216K

Available

Product prices will become visible after signing in.

Chain V08B-1

V08B-1-MTM

ISO DIN - 08B-1

Podziałka P [cale] - 1/2"

Podziałka P [mm] - 12.7

⌀ Rolki d1 max [mm] - 8.51

Wewnętrzny wymiar roboczy b1 min [mm] - 7.75

⌀ sworznia d2 max [mm] - 4.45

Długość sworznia L max [mm] - 17

Długość sworznia ogniwa łączącego Lc max [cale] - 20.9

Wysokość płytki wewnętrznej H max [mm] - 11.81

Obciążenie zrywające Q min [KN] - 17.8

Waga [kg/m] - 0.69

Available

Product prices will become visible after signing in.
