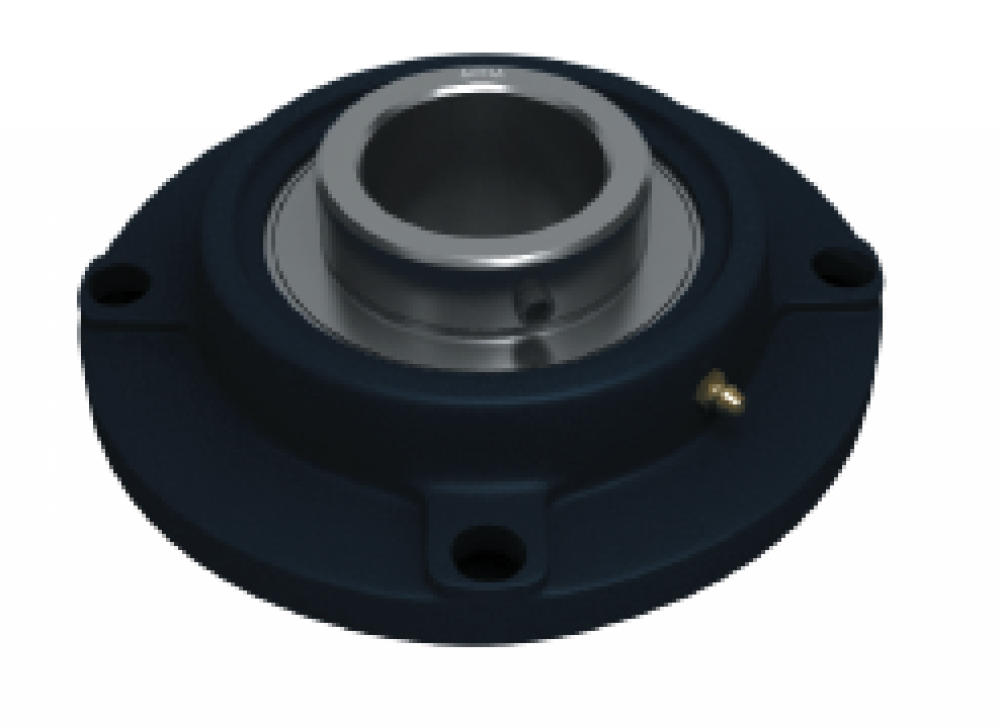

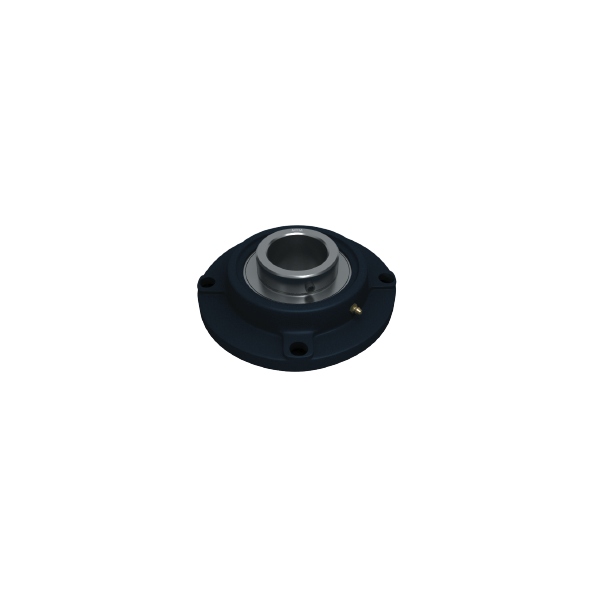

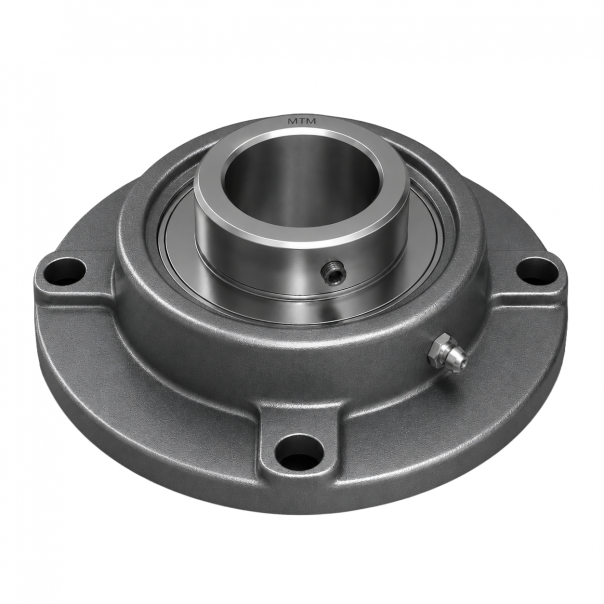

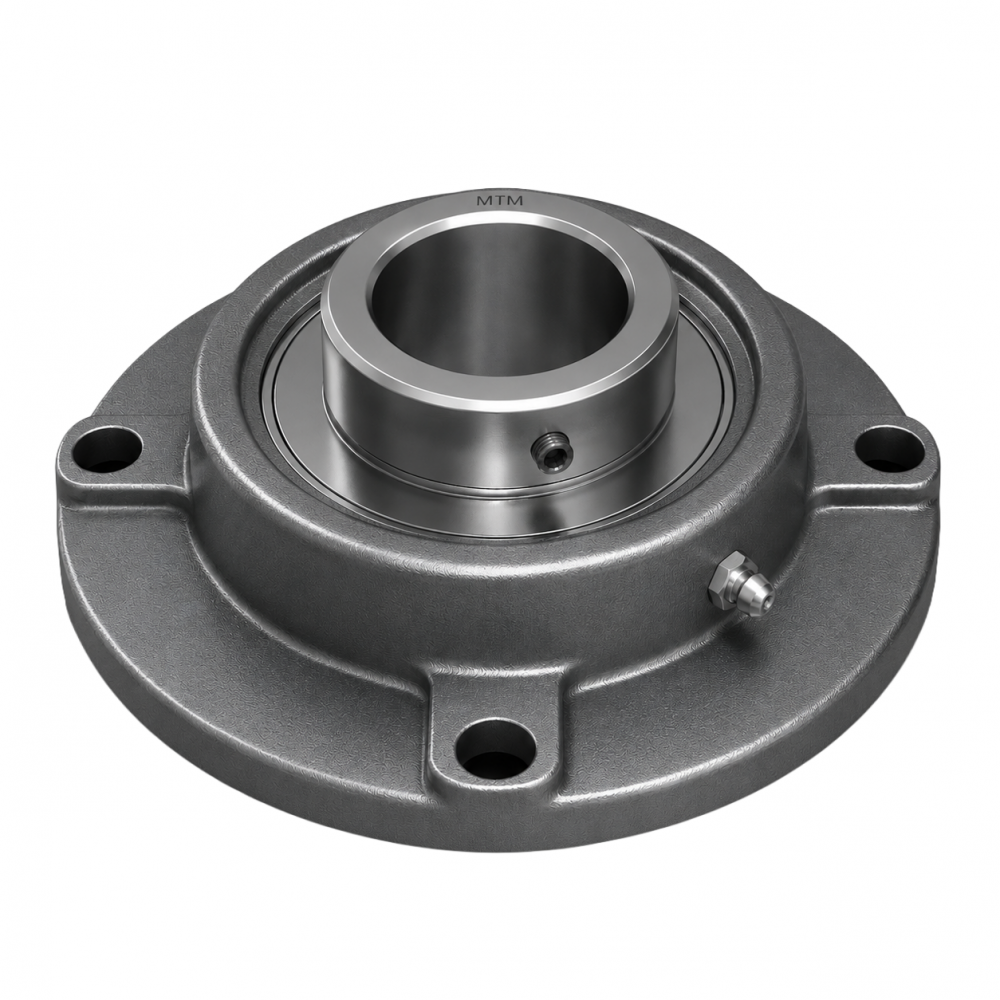

Stainless Bearing Unit SSUCFC205

Name: Stainless Bearing Unit SSUCFC205
SKU: SSUCFC205-MTM

Availability: Available

product code: SSUCFC205-MTM

product ean: 5907772149096

Download as PDF

Insert ball bearing UC209

UC209-MTM

d [mm] - 45

D [mm] - 85

Bi [mm] - 49,2

Be [mm] - 22

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,5

W [mm] - 57,3

load rating dynam. [N] - 24500

load rating stat. [N] - 17500

Weight [kg] - 0,67

Available

Product prices will become visible after signing in.

Ball Bearing 6205 2RS

6205-2RS-MTM

d [mm] - 25

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 14000

load rating stat. [N] - 7800

Weight [kg] - 0,128

Available

Product prices will become visible after signing in.

Half-cell ZPV 08B-1

ZPV 08B-1-08B-1OL-MTM

Available

Product prices will become visible after signing in.

Half-cell ZPV 12B-1

ZPV 12B-1-12B-1OL-MTM

Available

Product prices will become visible after signing in.

Insert ball bearing UC203

UC203-MTM

d [mm] - 17

D [mm] - 47

Bi [mm] - 31

Be [mm] - 17

r [mm] - 1

n [mm] - 12,7

m [mm] - 18,3

G [mm] - 4,5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 29

load rating dynam. [N] - 9880

load rating stat. [N] - 6180

Weight [kg] - 0,18

Available

Product prices will become visible after signing in.

Half-cell ZPV 06B-1

ZPV 06B-1-06B-1OL-MTM

Available

Product prices will become visible after signing in.

Insert ball bearing UC207

UC207-MTM

d [mm] - 35

D [mm] - 72

Bi [mm] - 42,9

Be [mm] - 20

r [mm] - 2

n [mm] - 17,5

m [mm] - 25,4

G [mm] - 6

ds [mm] - M8 x 1,00

T [mm] - 5,8

W [mm] - 48

load rating dynam. [N] - 19800

load rating stat. [N] - 13500

Weight [kg] - 0,48

Available

Product prices will become visible after signing in.

Chain V10B-1

V10B-1-MTM

ISO DIN - 10B-1

Pitch P [inch] - 5/8"

Pitch P [mm] - 15.875

⌀ Roller d1 max [mm] - 10.16

Inner working dimension b1 min [mm] - 9.65

⌀ pin d2 max [mm] - 5.08

Pin lenght L max [mm] - 19.6

Connecting pin lenght Lc max [inch] - 23.7

Inner plate depth H max [mm] - 14.73

Breaking load rating Q min [KN] - 22.2

Waga [kg/m] - 0.93

Available

Product prices will become visible after signing in.

Cell ZV 08B-1

ZV 08B-1-08B-1CL-MTM

Available

Product prices will become visible after signing in.

Ball Bearing 6206 2RS

6206-2RS-MTM

d [mm] - 30

D [mm] - 62

B [mm] - 16

load rating dynam. [N] - 19500

load rating stat. [N] - 11200

Weight [kg] - 0,200

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCFC207

SSUCFC207-MTM

Available

Product prices will become visible after signing in.

Half-cell ZPV 10B-1

ZPV 10B-1-10B-1OL-MTM

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCFC205
