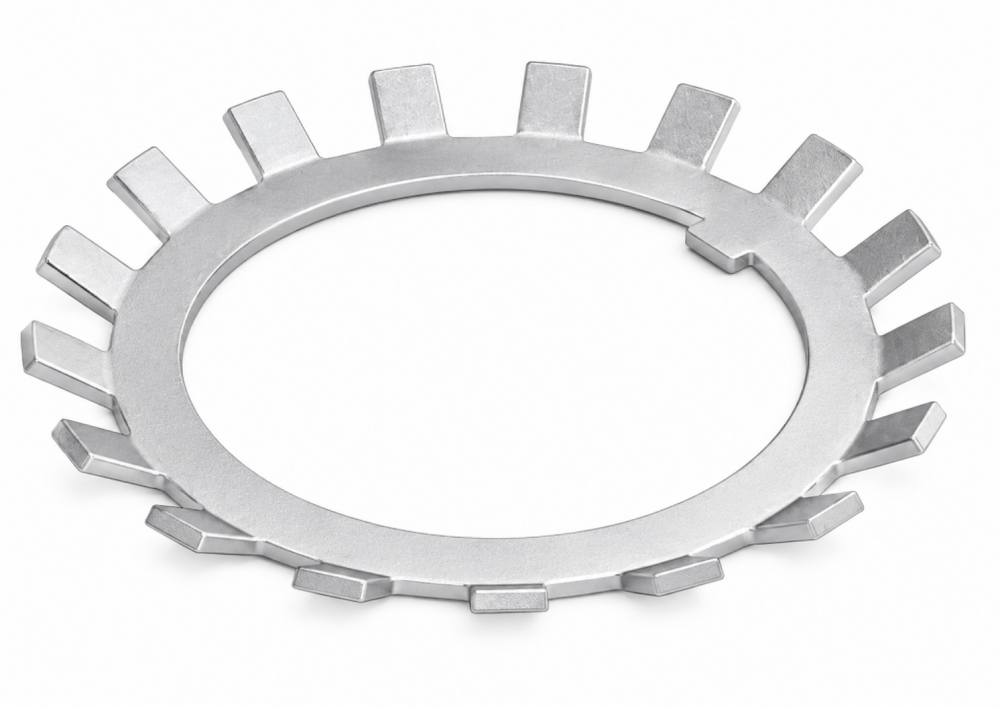

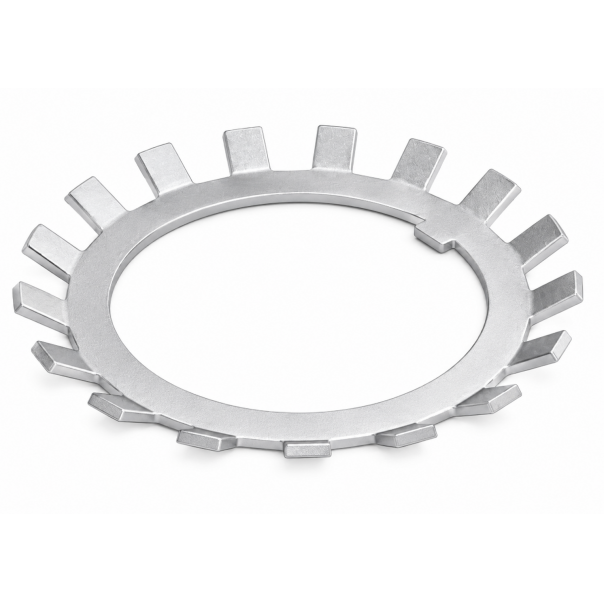

Lock washer MB21

Name: Lock washer MB21
SKU: MB21-MTM

Availability: Available

product code: MB21-MTM

product ean: 5907772125236

d [mm]	105
D1 [mm]	126
D [mm]	145
S [mm]	1,75
E [mm]	12
F [mm]	100,5
B [mm]	12
Waga [kg]	0,08260

Download as PDF

Oil Seal SIMMERING 85-110-12

SIMMERING 85-110-12-MTM

internal dimension [mm] - 85

external dimension [mm] - 110

height [mm] - 12

Available

Product prices will become visible after signing in.

Chain V16B-1

V16B-1-MTM

ISO DIN - 16B-1

Pitch P [inch] - 1"

Pitch P [mm] - 25.4

⌀ Roller d1 max [mm] - 15.88

Inner working dimension b1 min [mm] - 17.02

⌀ pin d2 max [mm] - 8.28

Pin lenght L max [mm] - 36.1

Connecting pin lenght Lc max [inch] - 41.5

Inner plate depth H max [mm] - 21.08

Breaking load rating Q min [KN] - 60

Waga [kg/m] - 2,71

Available

Product prices will become visible after signing in.

Lock washer MB22

MB22-MTM

d [mm] - 110

D1 [mm] - 133

D [mm] - 154

S [mm] - 1,75

E [mm] - 12

F [mm] - 105,5

B [mm] - 12

Waga [kg] - 0,09400

Available

Product prices will become visible after signing in.

Ball Bearing 6202

6202-MTM

d [mm] - 15

D [mm] - 35

B [mm] - 11

nośność dynam. [N] - 7800

nośność stat. [N] - 3750

Waga [kg] - 0.045

Available

Product prices will become visible after signing in.

Ball Bearing 6206 ZZ

6206-ZZ-MTM

d [mm] - 30

D [mm] - 62

B [mm] - 16

load rating dynam. [N] - 19500

load rating stat. [N] - 11200

Weight [kg] - 0,200

Available

Product prices will become visible after signing in.

Chain V12B-1

V12B-1-MTM

ISO DIN - 12B-1

Pitch P [inch] - 3/4"

Pitch P [mm] - 19.05

⌀ Roller d1 max [mm] - 12.07

Inner working dimension b1 min [mm] - 1.68

⌀ pin d2 max [mm] - 5.72

Pin lenght L max [mm] - 22.7

Connecting pin lenght Lc max [inch] - 27.3

Inner plate depth H max [mm] - 16.13

Breaking load rating Q min [KN] - 28.9

Waga [kg/m] - 1.15

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6015 2RS

6015-2RS-MTM

d [mm] - 75

D [mm] - 115

B [mm] - 20

nośność dynam. [N] - 39700

nośność stat. [N] - 33500

Waga [kg] - 0,639

Available

Product prices will become visible after signing in.

Ball Bearing 6213 2RS

6213-2RS-MTM

d [mm] - 65

D [mm] - 120

B [mm] - 23

nośność dynam. [N] - 55900

nośność stat. [N] - 40500

Waga [kg] - 0,989

Available

Product prices will become visible after signing in.

Lock washer MB08

MB08-MTM

d [mm] - 40

D1 [mm] - 50

D [mm] - 62

S [mm] - 1,25

E [mm] - 6

F [mm] - 37,5

B [mm] - 6

Waga [kg] - 0,01230

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL210

UCFL210-MTM

d [mm] - 50

a [mm] - 197

e [mm] - 157

i [mm] - 22

g [mm] - 15

l [mm] - 40

S [mm] - 19

b [mm] - 115

z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Śruba - M16

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6006 2RS

6006-2RS-MTM

d [mm] - 30

D [mm] - 55

B [mm] - 13

nośność dynam. [N] - 13300

nośność stat. [N] - 8300

Waga [kg] - 0,116

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP206

UCP206-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 160

e [mm] - 121

b [mm] - 44

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 17

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
