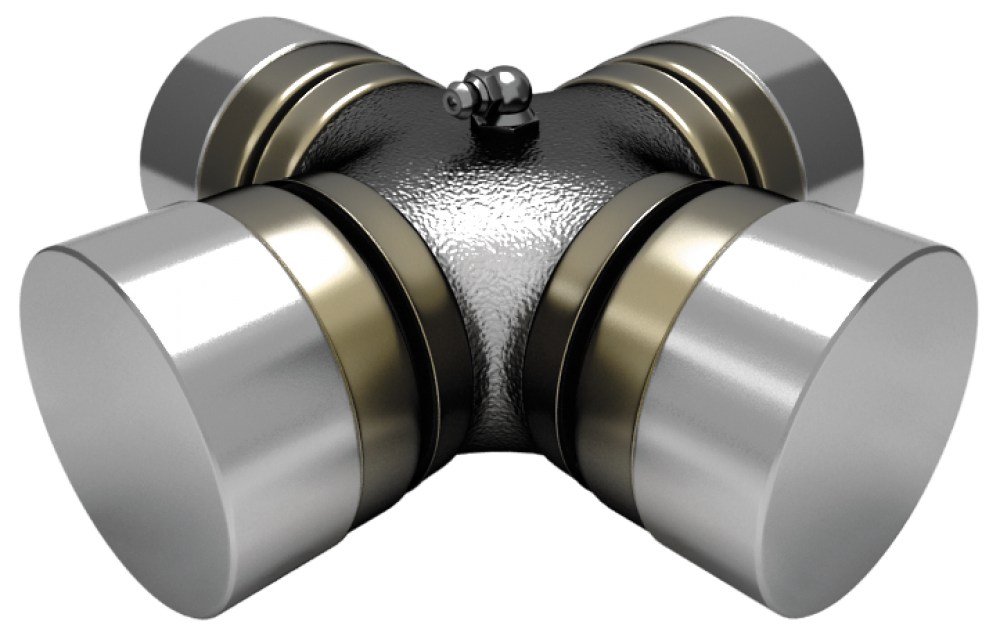

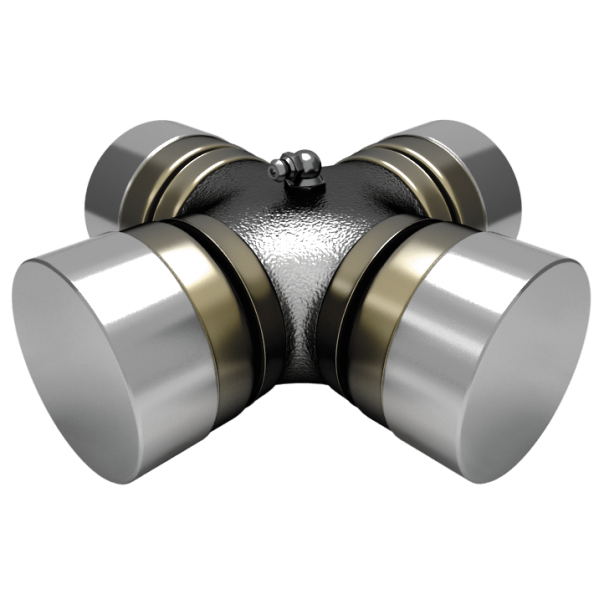

Cardan joint SB.CA 2254

Name: Cardan joint SB.CA 2254
SKU: SB.CA 2254-MTM

Availability: Available

product code: SB.CA 2254-MTM

product ean: 5907772129203

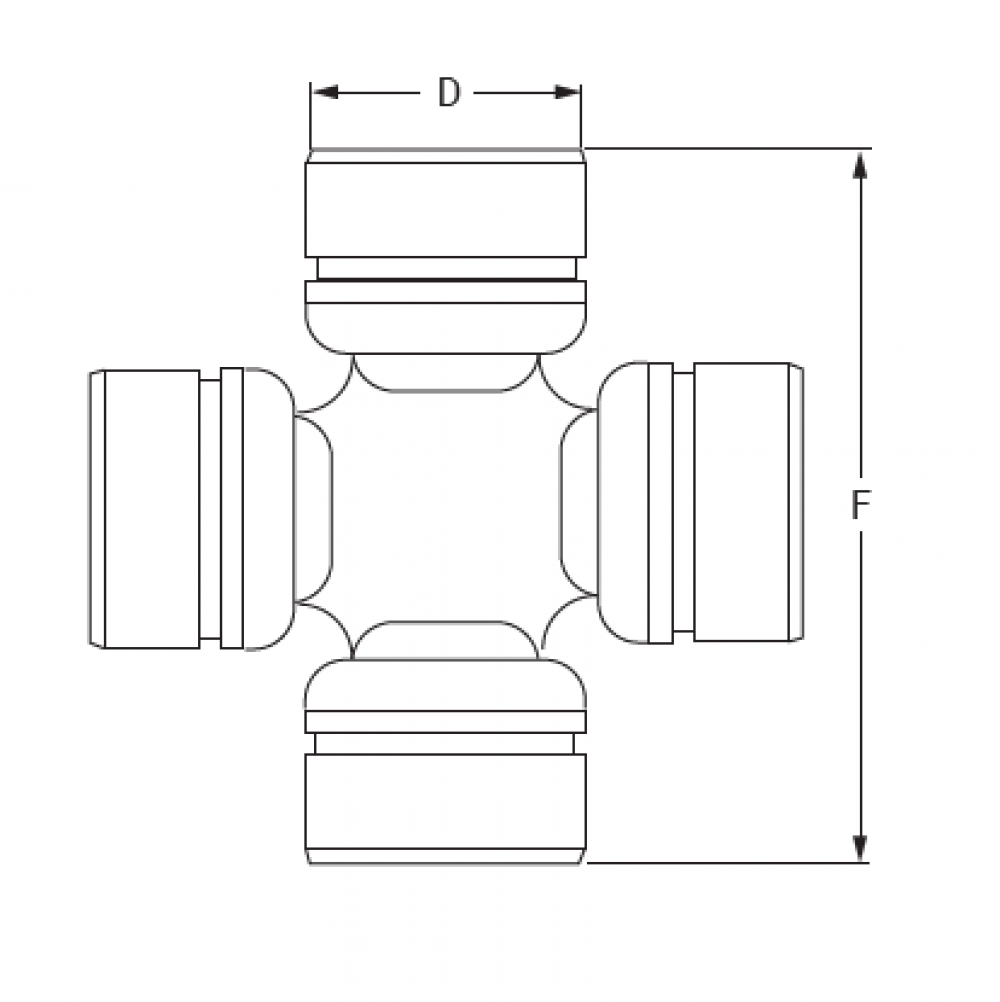

D [mm]	22
F [mm]	54
Weight [kg]	0.195

Download as PDF
