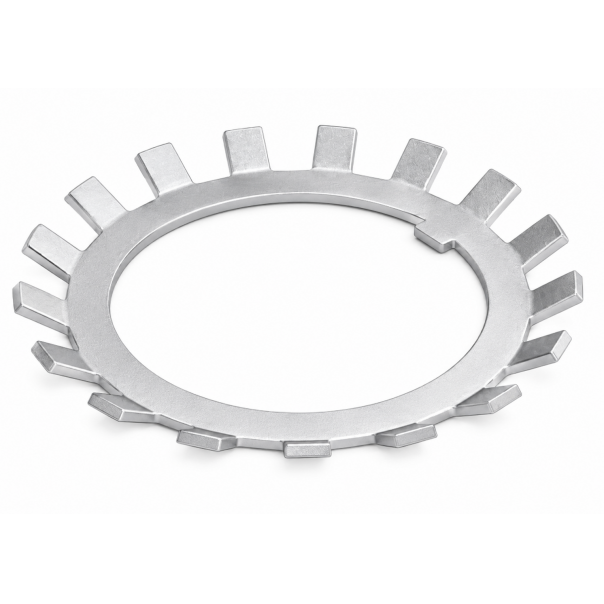

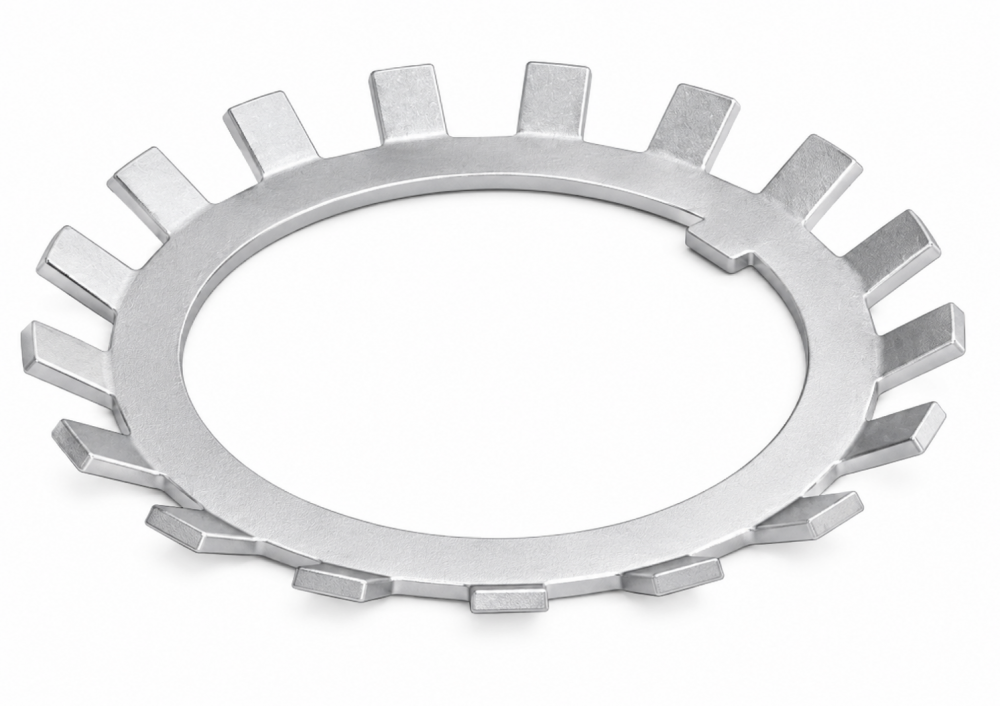

Lock washer MB06

Name: Lock washer MB06
SKU: MB06-MTM

Availability: Available

product code: MB06-MTM

product ean: 5907772125083

d [mm]	30
D1 [mm]	38
D [mm]	49
S [mm]	1,25
E [mm]	5
F [mm]	27,5
B [mm]	5
Weight [kg]	0,00780

Download as PDF

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Lock washer MB12

MB12-MTM

d [mm] - 60

D1 [mm] - 73

D [mm] - 86

S [mm] - 1,5

E [mm] - 8

F [mm] - 57,5

B [mm] - 7

Weight [kg] - 0,02530

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Lock nut KM12

KM12-MTM

d [mm] - 73

D [mm] - 80

B [mm] - 11

G [mm] - M60 x 2,00

m [mm] - 7

n [mm] - 3

Weight [kg] - 0,160

Washer model - MB12

Available

Product prices will become visible after signing in.

Lock nut KM06

KM06-MTM

d [mm] - 38

D [mm] - 45

B [mm] - 7

G [mm] - M30 x 1,50

m [mm] - 5

n [mm] - 2

Weight [kg] - 0,038

Washer model - MB06

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Split Unit SN513

SN513-MTM

d [mm] - 60

E [mm] - 230

L [mm] - 110

D [mm] - 120

b [mm] - 80

F [mm] - 43

G [mm] - 30

H [mm] - 150

u [mm] - 18

v [mm] - 23

A [mm] - 80

B [mm] - 275

M [mm] - M12

S [mm] - M16

uwaga - szczegółowe informacje - patrz Pliki do pobrania

On order

Product prices will become visible after signing in.

Lock washer MB11

MB11-MTM

d [mm] - 55

D1 [mm] - 67

D [mm] - 81

S [mm] - 1,5

E [mm] - 8

F [mm] - 52,5

B [mm] - 7

Weight [kg] - 0,01960

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF209

UCF209-MTM

d [mm] - 45

a [mm] - 137

e [mm] - 105

i [mm] - 22

g [mm] - 18

l [mm] - 38

S [mm] - 16

Z [mm] - 52,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL207

UCFL207-MTM

d [mm] - 35

a [mm] - 161

e [mm] - 130

i [mm] - 19

g [mm] - 14

l [mm] - 34

S [mm] - 16

b [mm] - 90

z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Spherical plain bearing GE025 ES

GE025-ES-MTM

d [mm] - 25

D [mm] - 42

B [mm] - 20

C [mm] - 16

dk [mm] - 35.5

Weight [kg] - 0.115

load rating dynam. [N] - 48000

load rating stat. [N] - 240000

Available

Product prices will become visible after signing in.
