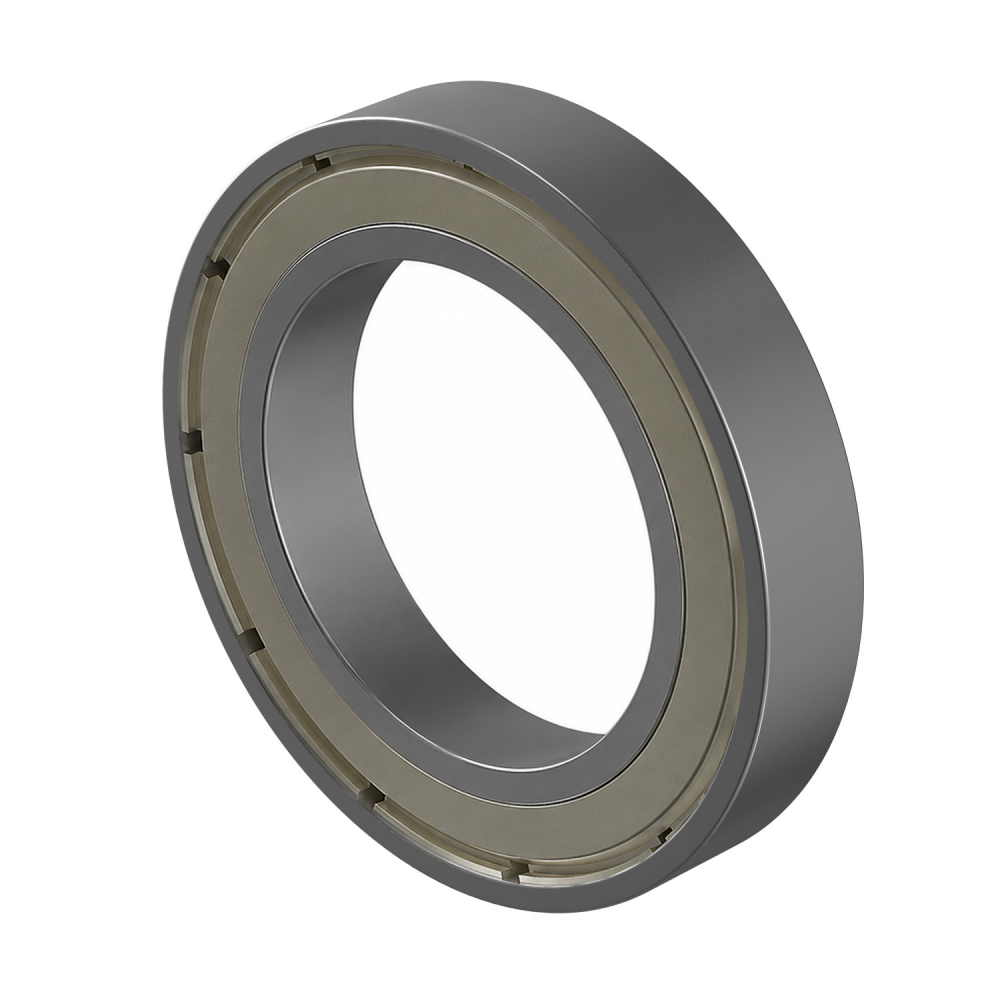

Deep groove stainless ball bearing 61807 (6807) ZZSS

Name: Deep groove stainless ball bearing 61807 (6807) ZZSS
SKU: 61807 (6807)-ZZSS-MTM

Availability: Available

product code: 61807 (6807)-ZZSS-MTM

product ean: 5907772111710

Product prices will become visible after signing in.

d [mm]	35
D [mm]	47
B [mm]	7
nośność dynam. [N]	4750
nośność stat. [N]	3200
Waga [kg]	0,030

Download as PDF

Spherical roller bearings 23026 MW33

23026-MW33-MTM

d [mm] - 130

D [mm] - 200

B [mm] - 52

nośność dynam. [N] - 374000

nośność stat. [N] - 610000

Waga [kg] - 6,10

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61908 ZZSS

61908 (6908)-ZZSS-MTM

d [mm] - 40

D [mm] - 62

B [mm] - 12

load rating dynam. [N] - 13800

load rating stat. [N] - 9300

Weight [kg] - 0,12

Available

Product prices will become visible after signing in.

Spherical roller bearings 22310 CW33

22310-CW33-MTM

d [mm] - 50

D [mm] - 110

B [mm] - 40

nośność dynam. [N] - 176000

nośność stat. [N] - 200000

Waga [kg] - 1,85

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6005 2RS

6005-2RS-MTM

d [mm] - 25

D [mm] - 47

B [mm] - 12

load rating dynam. [N] - 11200

load rating stat. [N] - 6550

Weight [kg] - 0,080

Available

Product prices will become visible after signing in.

Ball bearing W211 PP2

W211-PP2-MTM

d [mm] - 55.575

D g6 [mm] - 100.000

B [mm] - 33.325

C [mm] - 33.325

Weight [kg] - 1.060

load rating dynam. [N] - 39800

load rating stat. [N] - 23900

Available

Product prices will become visible after signing in.

Chain V06B-1

V06B-1-MTM

ISO DIN - 06B-1

Pitch P [inch] - 3/8"

Pitch P [mm] - 9.525

⌀ Roller d1 max [mm] - 6.35

Inner working dimension b1 min [mm] - 5.72

⌀ pin d2 max [mm] - 3.28

Pin lenght L max [mm] - 13.5

Connecting pin lenght Lc max [inch] - 16.8

Inner plate depth H max [mm] - 8.26

Breaking load rating Q min [KN] - 8.9

Waga [kg/m] - 0.41

Available

Product prices will become visible after signing in.

Ball bearing with square bore W209 PPB5

W209-PPB5-MTM

d [mm] - 32.776

A [mm] - 31.750

D g6 [mm] - 85.000

B [mm] - 36.525

C [mm] - 30.175

Weight [kg] - 0.800

load rating dynam. [N] - 30100

load rating stat. [N] - 17000

Available

Product prices will become visible after signing in.

Chain V10B-1

V10B-1-MTM

ISO DIN - 10B-1

Pitch P [inch] - 5/8"

Pitch P [mm] - 15.875

⌀ Roller d1 max [mm] - 10.16

Inner working dimension b1 min [mm] - 9.65

⌀ pin d2 max [mm] - 5.08

Pin lenght L max [mm] - 19.6

Connecting pin lenght Lc max [inch] - 23.7

Inner plate depth H max [mm] - 14.73

Breaking load rating Q min [KN] - 22.2

Waga [kg/m] - 0.93

Available

Product prices will become visible after signing in.

Ball bearing W210 PP2

W210-PP2-MTM

d [mm] - 49.225

D g6 [mm] - 90.000

B [mm] - 30.175

C [mm] - 30.175

Weight [kg] - 0.770

load rating dynam. [N] - 32200

load rating stat. [N] - 19000

Available

Product prices will become visible after signing in.

Cardan joint SB.CA 3075

SB.CA 3075-MTM

D [mm] - 30

F [mm] - 75

Weight [kg] - 0.505

Available

Product prices will become visible after signing in.

Ball bearing with square bore W211 PP5

W211-PP5-MTM

d [mm] - 38.890

A [mm] - 38.100

D g6 [mm] - 101.600

B [mm] - 44.450

C [mm] - 36.525

Waga [kg] - 1.530

nośność dynam. [N] - 39800

nośność stat. [N] - 23900

Available

Product prices will become visible after signing in.

Ball bearing with square bore W208 PP5

W208-PP5-MTM

Available

Product prices will become visible after signing in.
