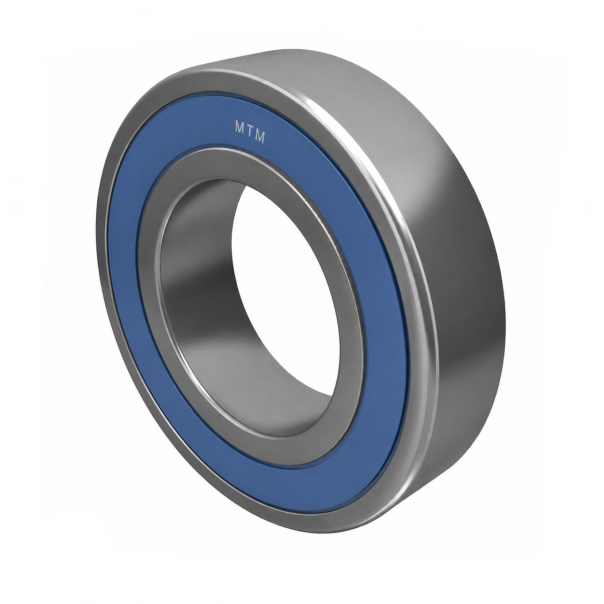

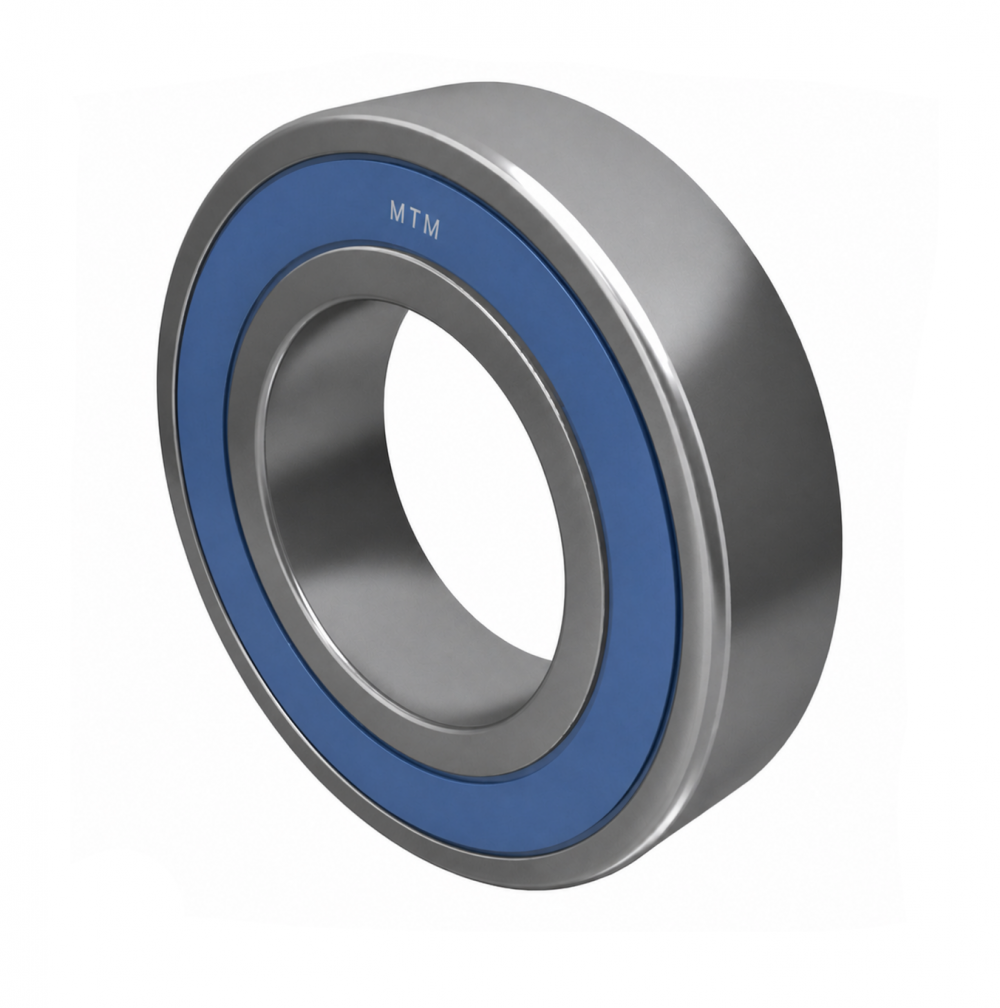

Ball Bearing 6202 2RSSS

Name: Ball Bearing 6202 2RSSS
SKU: 6202-2RSSS-MTM

Availability: Available

product code: 6202-2RSSS-MTM

product ean: 5907772113424

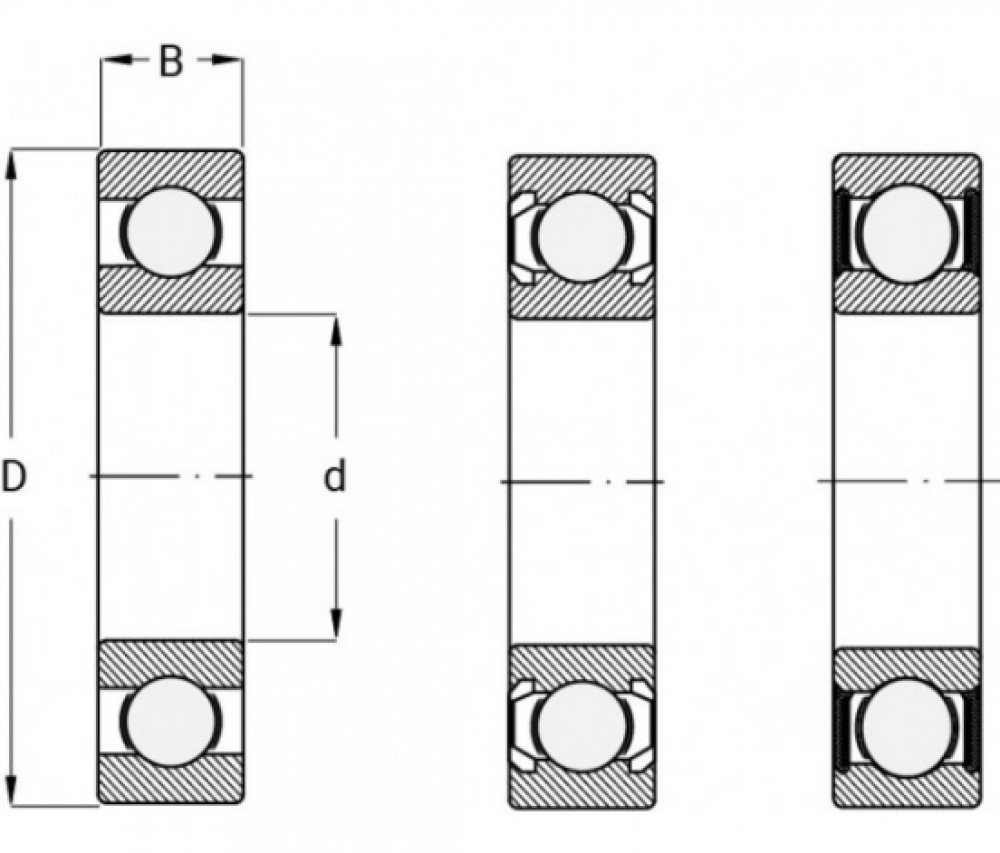

d [mm]	15
D [mm]	35
B [mm]	11
nośność dynam. [N]	7800
nośność stat. [N]	3750
Waga [kg]	0,045

Download as PDF

Deep groove stainless ball bearing 6003 2RSSS

6003-2RSSS-MTM

d [mm] - 17

D [mm] - 35

B [mm] - 10

nośność dynam. [N] - 6050

nośność stat. [N] - 3250

Waga [kg] - 0,039

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RSSS

6204-2RSSS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

nośność dynam. [N] - 12700

nośność stat. [N] - 6550

Waga [kg] - 0,106

Available

Product prices will become visible after signing in.

Ball Bearing 6205 2RSSS

6205-2RSSS-MTM

d [mm] - 25

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 14000

load rating stat. [N] - 7800

Weight [kg] - 0,128

Available

Product prices will become visible after signing in.

Sliding bush TUF 1 06.070

TUF 1 06.070-MTM

Available

Product prices will become visible after signing in.

Rod End SI06 T/K

SI06-T/K-MTM

D [mm] - 6

B [mm] - 9

M [mm] - 6,75

A [mm] - 20

F [mm] - 30

L [mm] - 40

K [mm] - 13

J [mm] - 10

O [mm] - 8,9

G [mm] - M6 x 1,00

GL [mm] - 12

Sw +10/-5% [mm] - 11

Waga [kg] - 0,022

nośność dynam. [N] - 7200

nośność stat. [N] - 7650

Available

Product prices will become visible after signing in.

Rod End SIL06 T/K

SIL06-T/K-MTM

D [mm] - 6

B [mm] - 9

M [mm] - 6,75

A [mm] - 20

F [mm] - 30

L [mm] - 40

K [mm] - 13

J [mm] - 10

O [mm] - 8,9

G [mm] - M6 x 1,00

GL [mm] - 12

Sw +10/-5% [mm] - 11

Waga [kg] - 0,022

nośność dynam. [N] - 7200

nośność stat. [N] - 7650

Available

Product prices will become visible after signing in.

Rod End SI20 T/K

SI20-T/K-MTM

D [mm] - 20

B [mm] - 25

M [mm] - 18

A [mm] - 50

F [mm] - 77

L [mm] - 102

K [mm] - 34

J [mm] - 27,5

O [mm] - 24,3

G [mm] - M20 x 1,50

GL [mm] - 33

Sw +10/-5% [mm] - 30

Weight [kg] - 0,420

load rating dynam. [N] - 42500

load rating stat. [N] - 57000

Available

Product prices will become visible after signing in.

Rod End SA20 T/K

SA20-T/K-MTM

D [mm] - 20

B [mm] - 25

M [mm] - 18

A [mm] - 50

F [mm] - 78

L [mm] - 103

O [mm] - 24,3

G [mm] - M20 x 1,50

GL [mm] - 47

Weight [kg] - 0,380

load rating dynam. [N] - 42500

load rating stat. [N] - 57000

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210 Triple seal

UCF210-TS-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - -

Available

Product prices will become visible after signing in.

Rod End SAL18 T/K

SAL18-T/K-MTM

D [mm] - 18

B [mm] - 23

M [mm] - 16,5

A [mm] - 46

F [mm] - 72

L [mm] - 95

O [mm] - 21,8

G [mm] - M18 x 1,50

GL [mm] - 44

Waga [kg] - 0,280

nośność dynam. [N] - 42500

nośność stat. [N] - 47500

Available

Product prices will become visible after signing in.

Sliding bush TUF 1 14.170

TUF 1 14.170-MTM

Available

Product prices will become visible after signing in.

Ball Bearing 6302 2RSSS

6302-2RSSS-MTM

d [mm] - 15

D [mm] - 42

B [mm] - 13

nośność dynam. [N] - 11400

nośność stat. [N] - 5400

Waga [kg] - 0,082

Available

Product prices will become visible after signing in.
