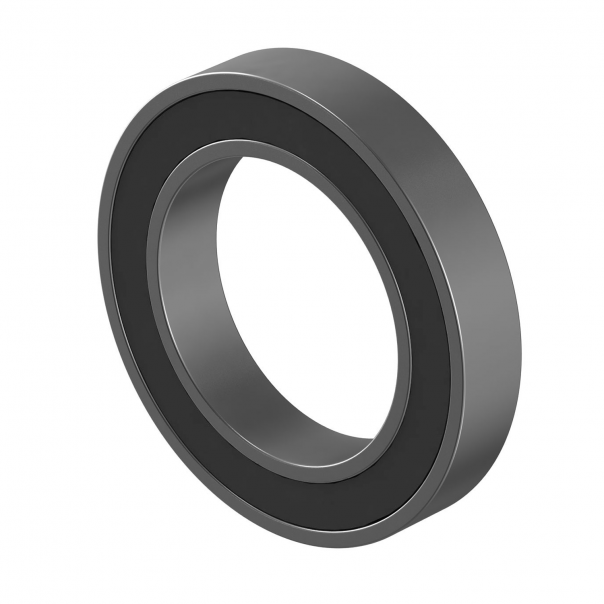

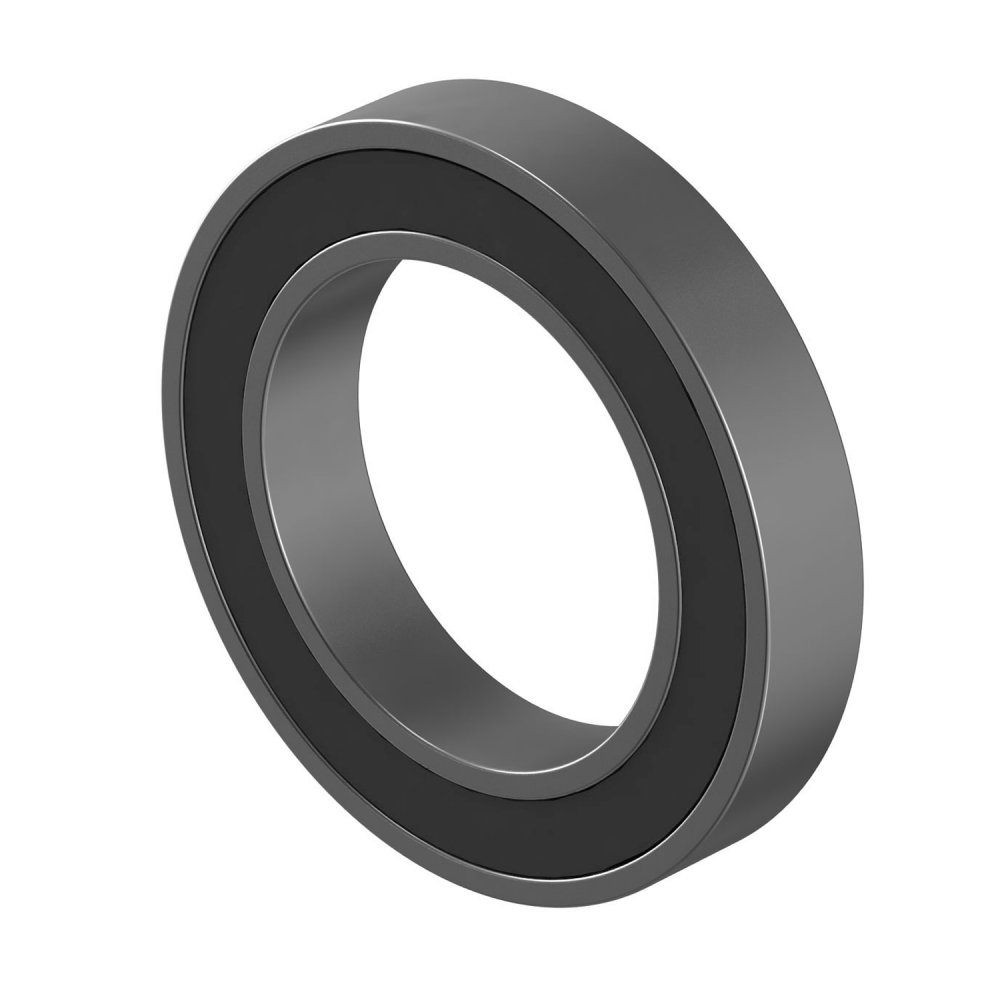

Deep groove ball bearing 61804 (6804) 2RS

Name: Deep groove ball bearing 61804 (6804) 2RS
SKU: 61804 (6804)-2RS-MTM

Availability: Available

product code: 61804 (6804)-2RS-MTM

product ean: 5907772111512

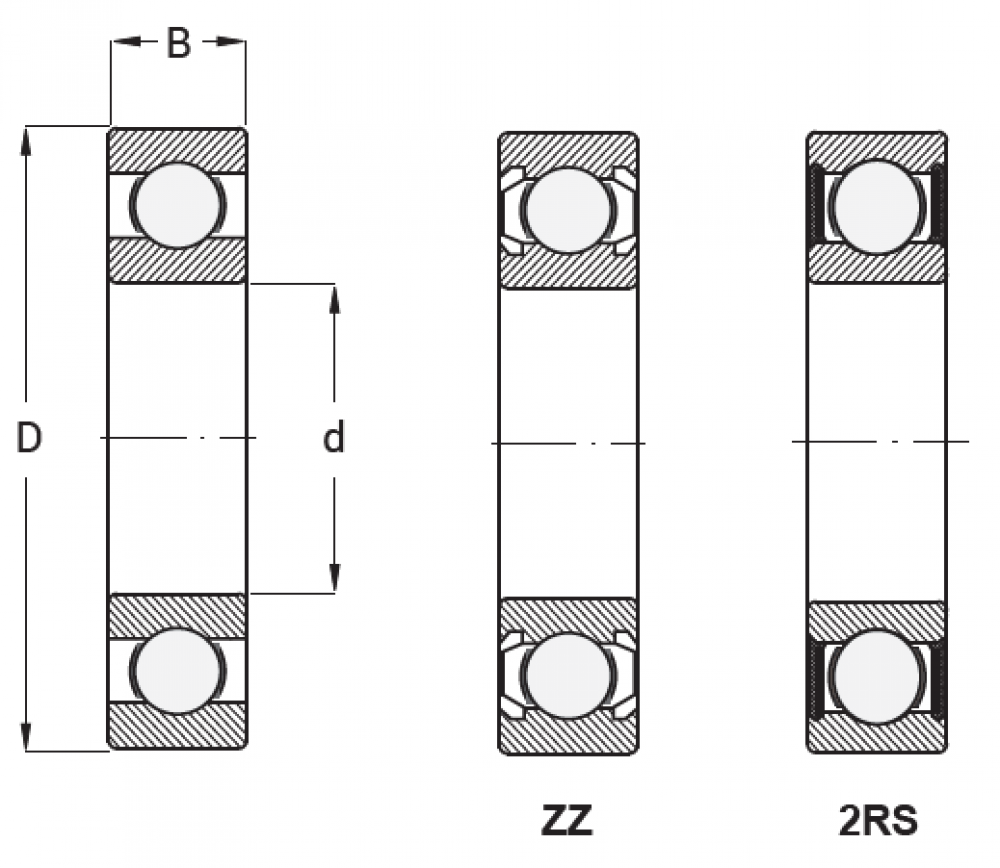

d [mm]	20
D [mm]	32
B [mm]	7
load rating dynam. [N]	2700
load rating stat. [N]	1500
Weight [kg]	0,018

Download as PDF

Pillow Block Bearing UCF204

UCF204-MTM

d [mm] - 20

a [mm] - 86

e [mm] - 64

i [mm] - 15

g [mm] - 12

l [mm] - 25,5

S [mm] - 12

Z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Śruba - M10

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Ball Bearing 61801 (6801) 2RS

61801 (6801)-2RS-MTM

d [mm] - 12

D [mm] - 21

B [mm] - 5

nośność dynam. [N] - 1430

nośność stat. [N] - 670

Waga [kg] - 0,006

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP205

UCP205-MTM

d [mm] - 25

h [mm] - 36,5

a [mm] - 140

e [mm] - 105

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 15

W [mm] - 71

Bi [mm] - 34,1

n [mm] - 14,3

Śruba - M10

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61802 (6802) 2RS

61802 (6802)-2RS-MTM

d [mm] - 15

D [mm] - 24

B [mm] - 5

load rating dynam. [N] - 1560

load rating stat. [N] - 800

Weight [kg] - 0,007

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCP204

UCP204-MTM

d [mm] - 20

h [mm] - 33,3

a [mm] - 127

e [mm] - 95

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 14

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Linear Bearing SMA12 GUU

SMA12-GUU-MTM

h [mm] - 15

E [mm] - 21

W [mm] - 42

L [mm] - 36

F [mm] - 28

G [mm] - 24

T [mm] - 8

B [mm] - 30,5

C [mm] - 26

K [mm] - 5,75

S1 [mm] - M5 x 12

S2 [mm] - 4,3

Weight [kg] - 0,112

load rating dynam. [N] - 470

load rating stat. [N] - 723

Available

Product prices will become visible after signing in.

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Split Unit SN524

SN524-MTM

d [mm] - 110

E [mm] - 350

L [mm] - 185

D [mm] - 215

b [mm] - 120

F [mm] - 86

G [mm] - 45

H [mm] - 270

u [mm] - 26

v [mm] - 34

A [mm] - 140

B [mm] - 410

M [mm] - M20

S [mm] - M24

uwaga - szczegółowe informacje - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61902 2RS

61902 (6902)-2RS-MTM

d [mm] - 15

D [mm] - 28

B [mm] - 7

load rating dynam. [N] - 4030

load rating stat. [N] - 2040

Weight [kg] - 0,016

Available

Product prices will become visible after signing in.

Adapter sleeve H3128

H3128-MTM

d1 [mm] - 125

d [mm] - 140

D [mm] - 180

B1 [mm] - 97

B2 [mm] - 24

G [mm] - M140 x 2,00

Waga [kg] - 4,100

Model nakrętki - KM 28

Model podkładki - MB 28

Model łożyska baryłkowego - 22228K / 23128K

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.
