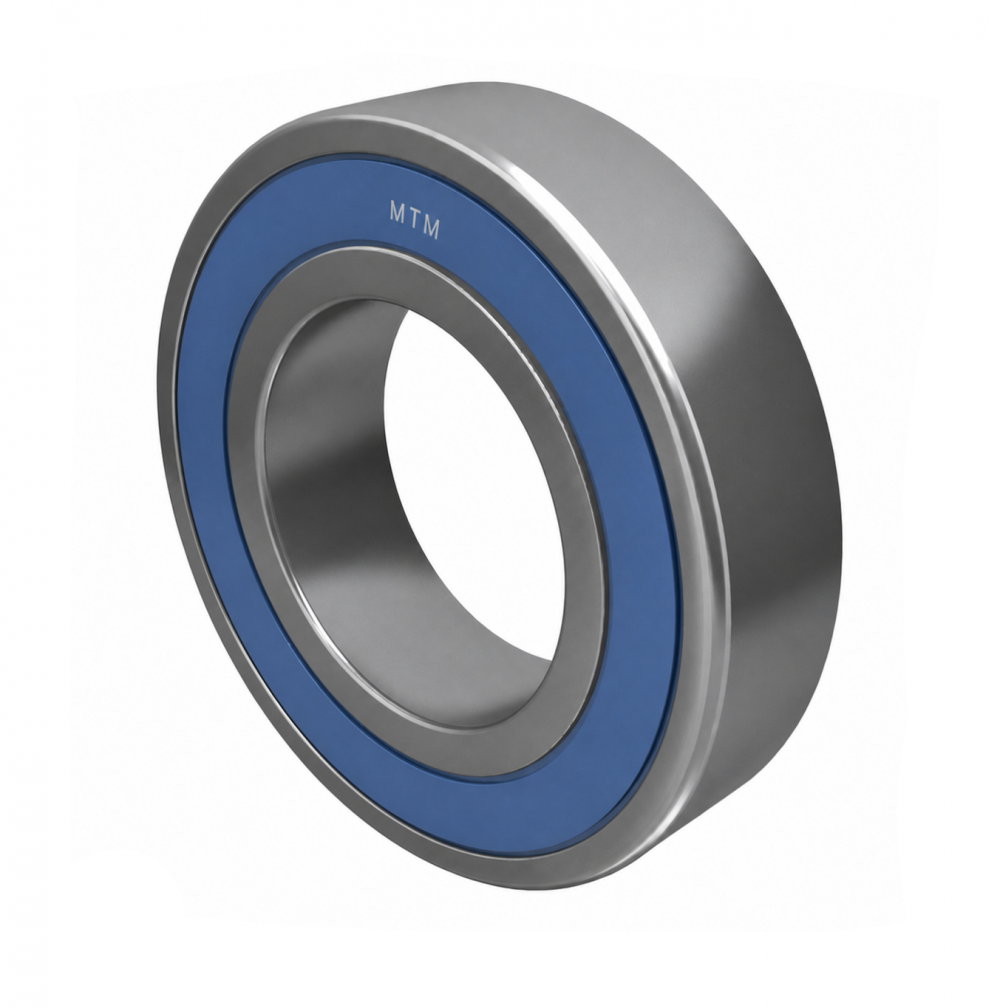

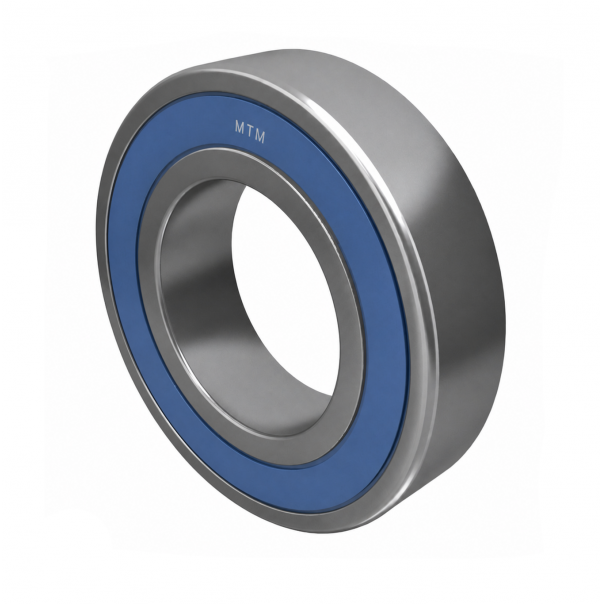

Ball Bearing 6302 2RSSS

Name: Ball Bearing 6302 2RSSS
SKU: 6302-2RSSS-MTM

Availability: Available

product code: 6302-2RSSS-MTM

product ean: 5907772115886

Product prices will become visible after signing in.

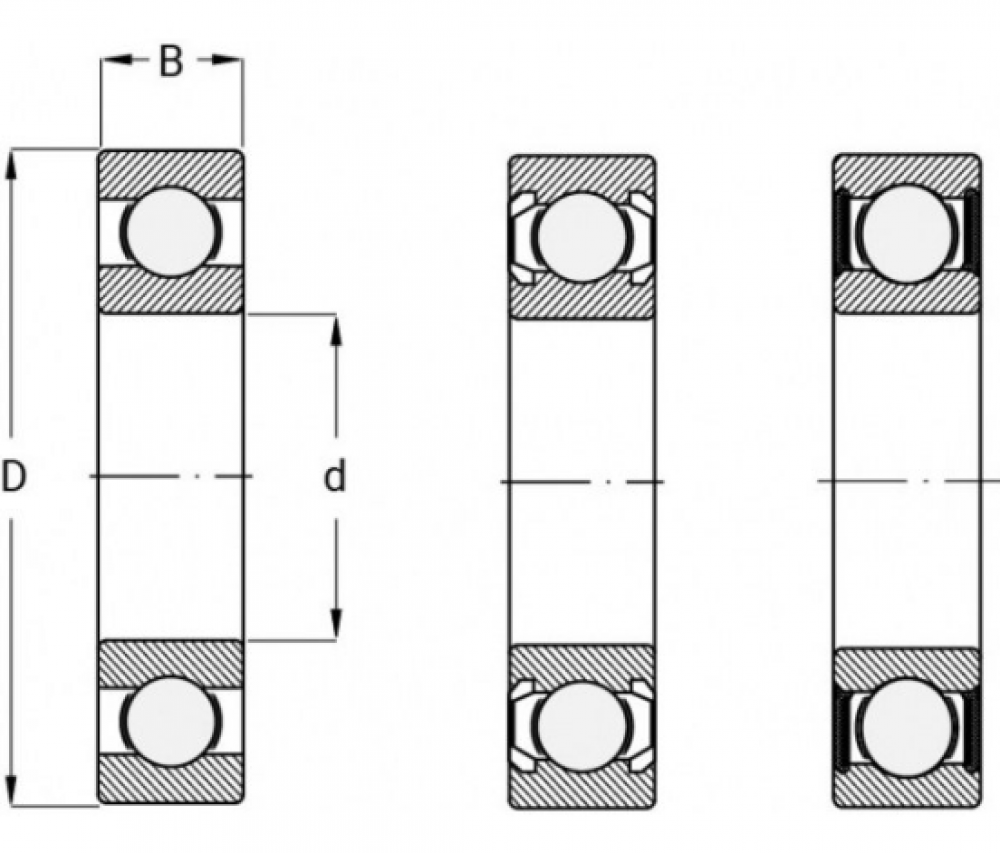

d [mm]	15
D [mm]	42
B [mm]	13
nośność dynam. [N]	11400
nośność stat. [N]	5400
Waga [kg]	0,082

Download as PDF
