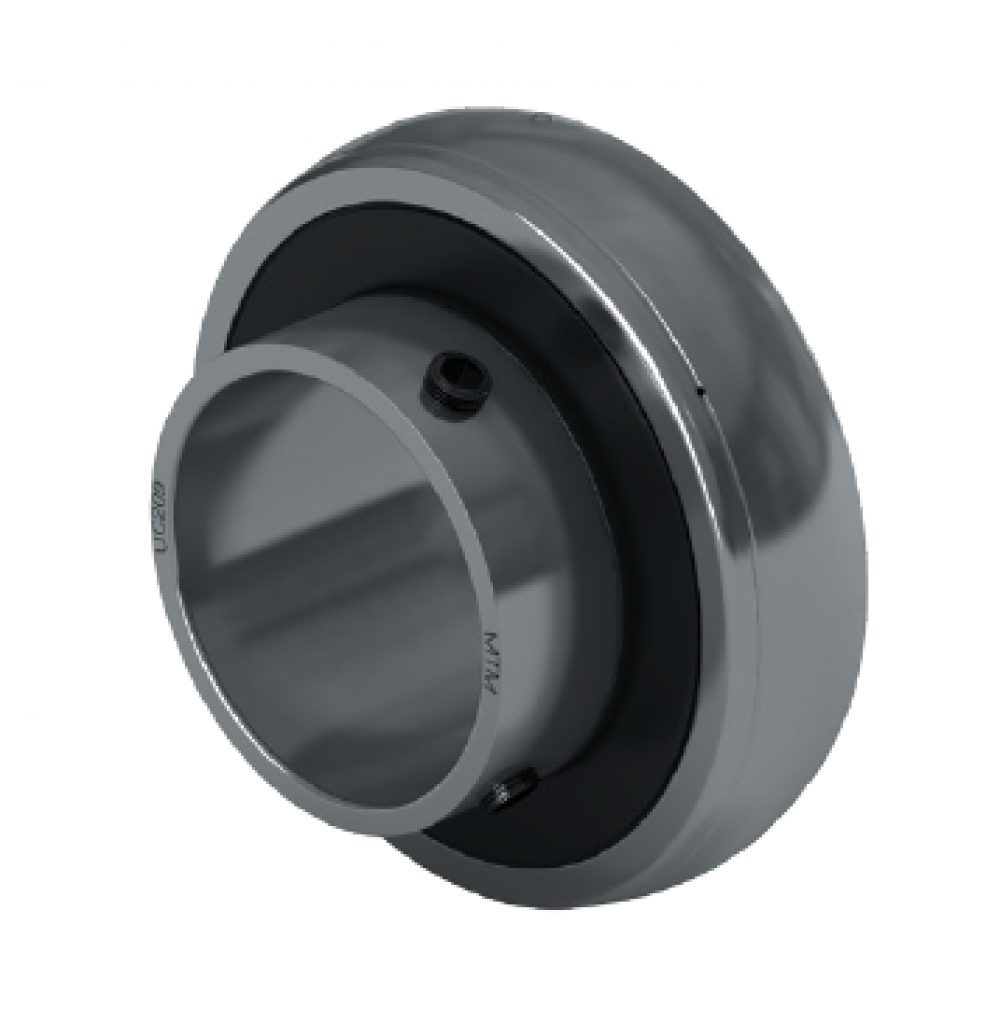

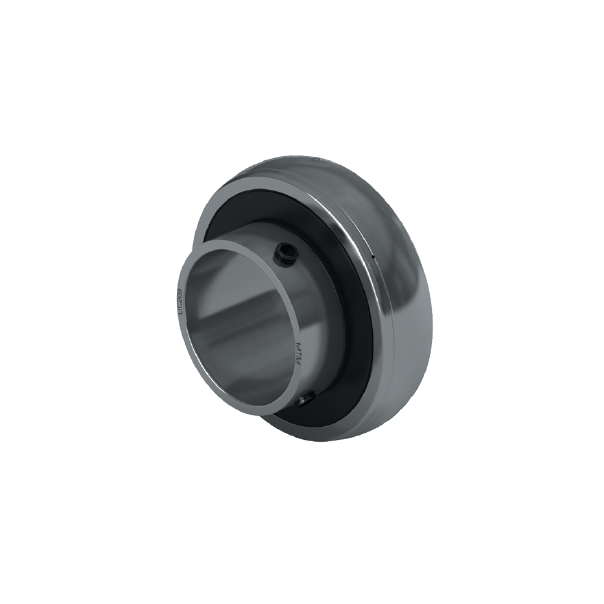

Insert ball bearing UC210

Name: Insert ball bearing UC210
SKU: UC210-MTM

Availability: Available

product code: UC210-MTM

product ean: 5907772141151

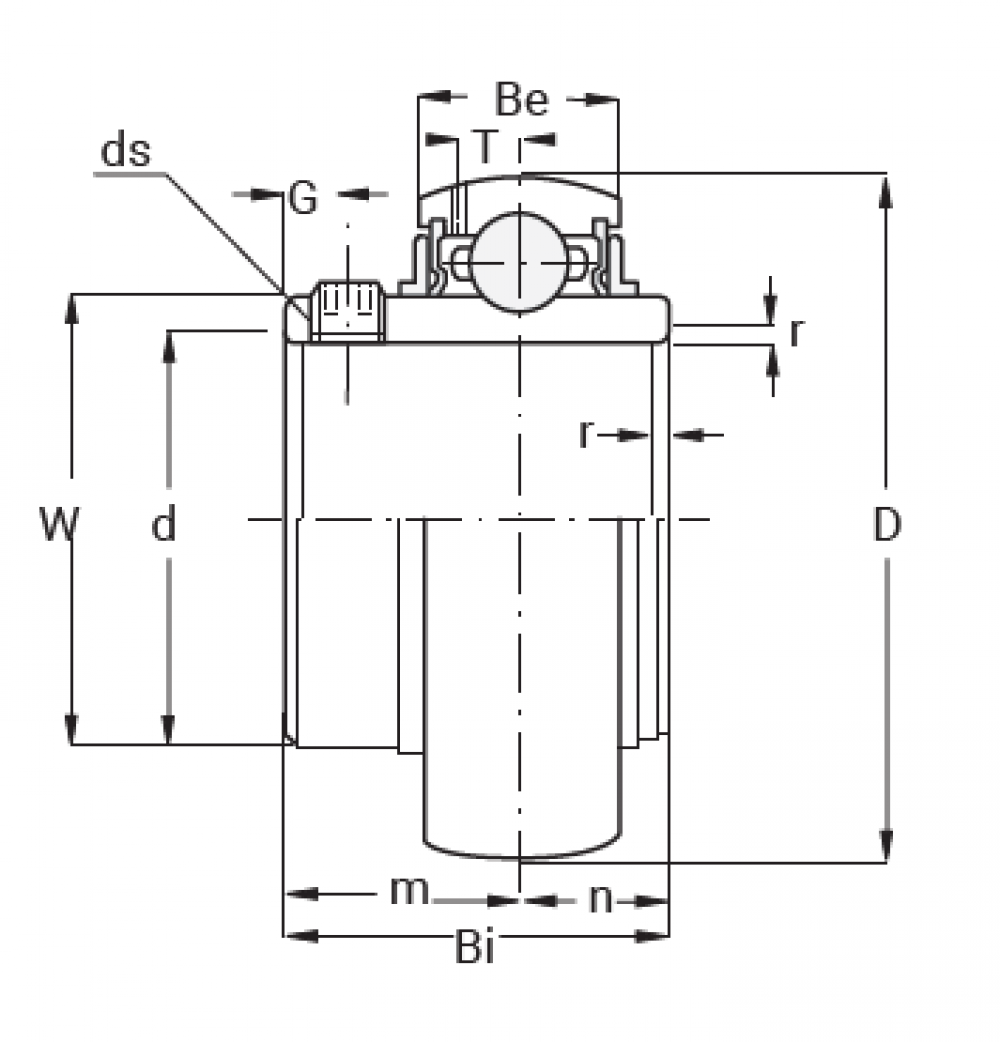

d [mm]	50
D [mm]	90
Bi [mm]	51,6
Be [mm]	23
r [mm]	2
n [mm]	19
m [mm]	32,6
G [mm]	9
ds [mm]	M10 x 1,25
T [mm]	6,5
W [mm]	63
load rating dynam. [N]	27000
load rating stat. [N]	19800
Weight [kg]	0,78

Download as PDF

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6001 2RS

6001-2RS-MTM

d [mm] - 12

D [mm] - 28

B [mm] - 8

load rating dynam. [N] - 5070

load rating stat. [N] - 2360

Weight [kg] - 0,022

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC208

UC208-MTM

d [mm] - 40

D [mm] - 80

Bi [mm] - 49,2

Be [mm] - 21

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,2

W [mm] - 53

nośność dynam. [N] - 22800

nośność stat. [N] - 15800

Waga [kg] - 0,62

On order

Product prices will become visible after signing in.

Deep groove ball bearing 61802 (6802) 2RS

61802 (6802)-2RS-MTM

d [mm] - 15

D [mm] - 24

B [mm] - 5

load rating dynam. [N] - 1560

load rating stat. [N] - 800

Weight [kg] - 0,007

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC207

UC207-MTM

d [mm] - 35

D [mm] - 72

Bi [mm] - 42,9

Be [mm] - 20

r [mm] - 2

n [mm] - 17,5

m [mm] - 25,4

G [mm] - 6

ds [mm] - M8 x 1,00

T [mm] - 5,8

W [mm] - 48

load rating dynam. [N] - 19800

load rating stat. [N] - 13500

Weight [kg] - 0,48

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61805 (6805) 2RS

61805 (6805)-2RS-MTM

d [mm] - 25

D [mm] - 37

B [mm] - 7

load rating dynam. [N] - 4360

load rating stat. [N] - 2600

Weight [kg] - 0,022

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP202

UCP202-MTM

d [mm] - 15

h [mm] - 30,2

a [mm] - 127

e [mm] - 95

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 14

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC206

UC206-MTM

d [mm] - 30

D [mm] - 62

Bi [mm] - 38,1

Be [mm] - 19

r [mm] - 1,5

n [mm] - 15,9

m [mm] - 22,2

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 5,1

W [mm] - 40,5

load rating dynam. [N] - 15000

load rating stat. [N] - 10000

Weight [kg] - 0,31

Available

Product prices will become visible after signing in.
