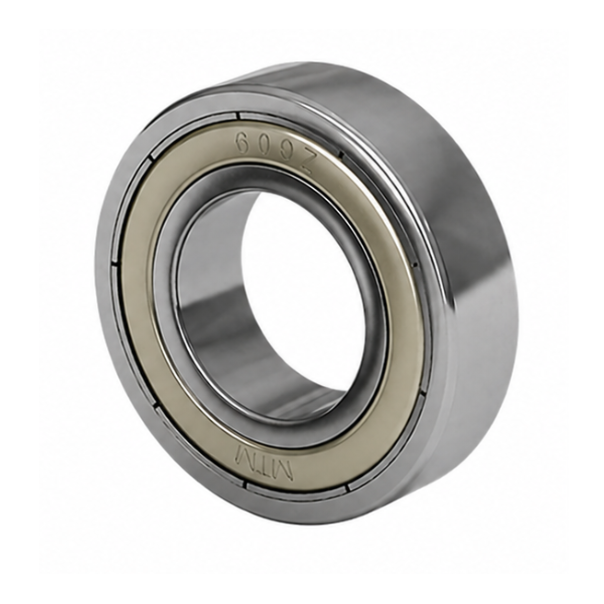

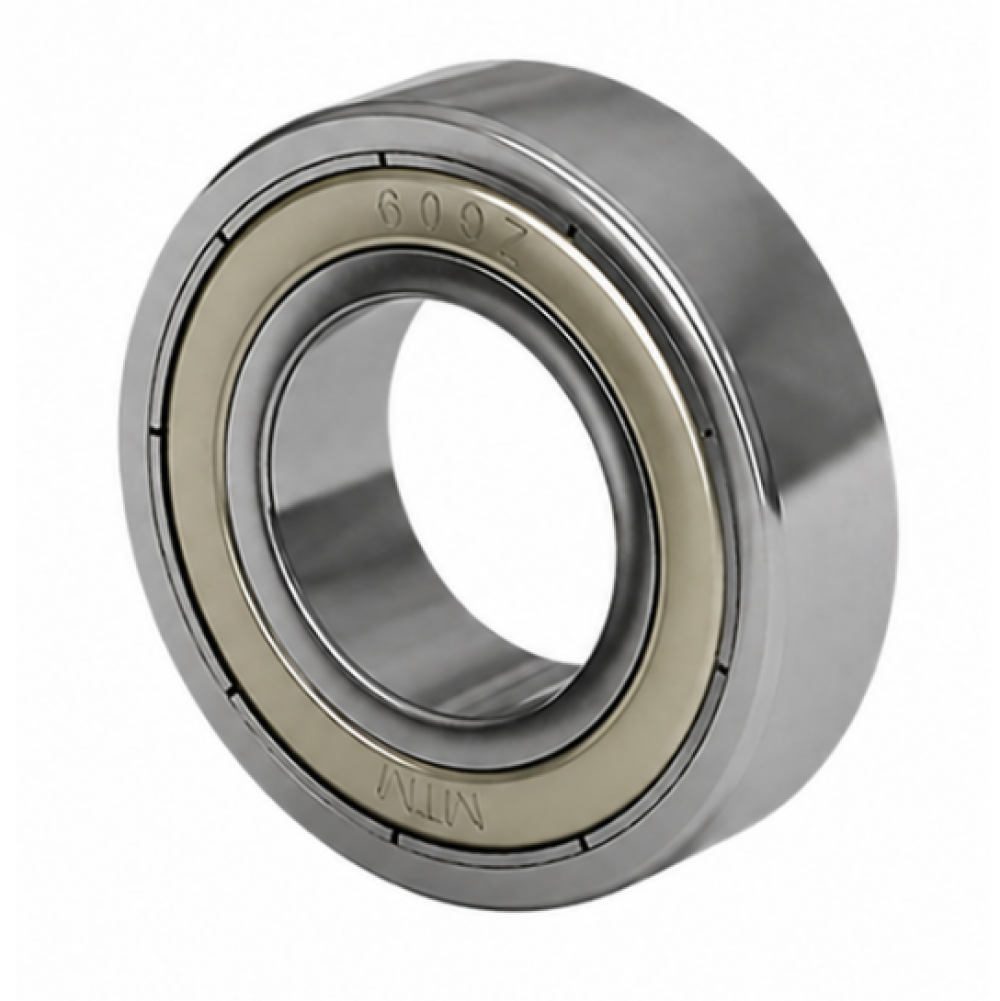

Small ball bearing 609 ZZ

Name: Small ball bearing 609 ZZ
SKU: 609-ZZ-MTM

Availability: Available

product code: 609-ZZ-MTM

product ean: 5907772110997

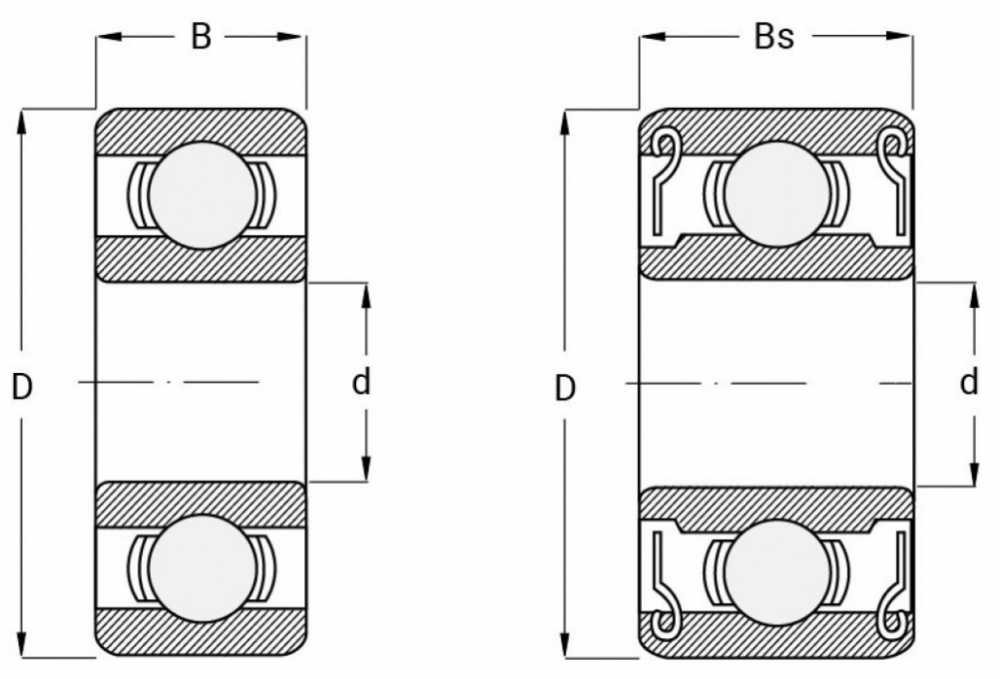

d [mm]	9
D [mm]	24
B [mm]	7,0
Bs [mm]	7,0
nośność dynam. [N]	3710
nośność stat. [N]	1660
Waga [kg]	0,01400

Download as PDF

Deep groove ball bearing 61900 2RS

61900 (6900)-2RS-MTM

d [mm] - 10

D [mm] - 22

B [mm] - 6

load rating dynam. [N] - 1950

load rating stat. [N] - 750

Weight [kg] - 0,01

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61800 (6800) 2RS

61800 (6800)-2RS-MTM

d [mm] - 10

D [mm] - 19

B [mm] - 5

nośność dynam. [N] - 1380

nośność stat. [N] - 585

Waga [kg] - 0,006

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61800 (6800) ZZ

61800 (6800)-ZZ-MTM

d [mm] - 10

D [mm] - 19

B [mm] - 5

nośność dynam. [N] - 1380

nośność stat. [N] - 585

Waga [kg] - 0,006

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61804 (6804) 2RS

61804 (6804)-2RS-MTM

d [mm] - 20

D [mm] - 32

B [mm] - 7

load rating dynam. [N] - 2700

load rating stat. [N] - 1500

Weight [kg] - 0,018

Available

Product prices will become visible after signing in.

Ball Bearing 6405 ZZ

6405-ZZ-MTM

d [mm] - 25

D [mm] - 80

B [mm] - 21

nośność dynam. [N] - 35800

nośność stat. [N] - 19300

Waga [kg] - 0,540

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

nośność dynam. [N] - 15900

nośność stat. [N] - 7800

Waga [kg] - 0,144

Available

Product prices will become visible after signing in.

Insert ball bearing UC206

UC206-MTM

d [mm] - 30

D [mm] - 62

Bi [mm] - 38,1

Be [mm] - 19

r [mm] - 1,5

n [mm] - 15,9

m [mm] - 22,2

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 5,1

W [mm] - 40,5

load rating dynam. [N] - 15000

load rating stat. [N] - 10000

Weight [kg] - 0,31

Available

Product prices will become visible after signing in.

Ball Bearing 6305 2RS

6305-2RS-MTM

d [mm] - 25

D [mm] - 62

B [mm] - 17

load rating dynam. [N] - 22500

load rating stat. [N] - 11600

Weight [kg] - 0,232

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 42-52-7

SIMMERING 42-52-7-MTM

wymiar wewnętrzny [mm] - 42

wymiar zewnętrzny [mm] - 52

wysokość [mm] - 7

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 25-62-10

SIMMERING 25-62-10-MTM

internal dimension [mm] - 25

external dimension [mm] - 62

height [mm] - 10

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCF204

UCF204-MTM

d [mm] - 20

a [mm] - 86

e [mm] - 64

i [mm] - 15

g [mm] - 12

l [mm] - 25,5

S [mm] - 12

Z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP211

UCP211-MTM

d [mm] - 55

h [mm] - 63,5

a [mm] - 219

e [mm] - 171

b [mm] - 60

S1 [mm] - 20

S2 [mm] - 23

g [mm] - 23

W [mm] - 125

Bi [mm] - 55,6

n [mm] - 22,2

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
