Ball Bearing 623 ZZ

Name: Ball Bearing 623 ZZ
SKU: 623-ZZ-MTM

Availability: Available

product code: 623-ZZ-MTM

product ean: 5907772115268

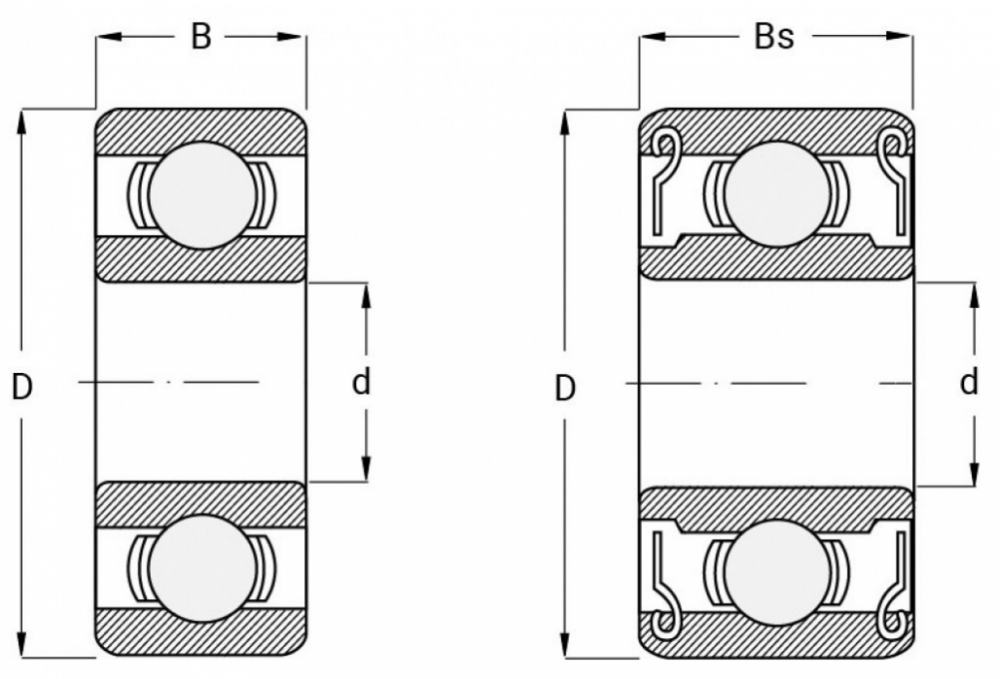

d [mm]	3
D [mm]	10
B [mm]	4,0
Bs [mm]	4,0
nośność dynam. [N]	488
nośność stat. [N]	146
Waga [kg]	0,00160

Download as PDF

Ball Bearing 6307 2RS

6307-2RS-MTM

d [mm] - 35

D [mm] - 80

B [mm] - 21

nośność dynam. [N] - 33200

nośność stat. [N] - 19000

Waga [kg] - 0,458

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61806 (6806) 2RS

61806 (6806)-2RS-MTM

d [mm] - 30

D [mm] - 42

B [mm] - 7

load rating dynam. [N] - 4490

load rating stat. [N] - 2900

Weight [kg] - 0,027

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Ball Bearing 6202 2RS

6202-2RS-MTM

d [mm] - 15

D [mm] - 35

B [mm] - 11

nośność dynam. [N] - 7800

nośność stat. [N] - 3750

Waga [kg] - 0,045

Available

Product prices will become visible after signing in.

Ball Bearing 6301 2RS

6301-2RS-MTM

d [mm] - 12

D [mm] - 37

B [mm] - 12

load rating dynam. [N] - 9750

load rating stat. [N] - 4150

Weight [kg] - 0,060

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61800 (6800) ZZ

61800 (6800)-ZZ-MTM

d [mm] - 10

D [mm] - 19

B [mm] - 5

load rating dynam. [N] - 1380

load rating stat. [N] - 585

Weight [kg] - 0,006

Available

Product prices will become visible after signing in.

Ball Bearing 6302 2RS

6302-2RS-MTM

d [mm] - 15

D [mm] - 42

B [mm] - 13

load rating dynam. [N] - 11400

load rating stat. [N] - 5400

Weight [kg] - 0,082

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP204

UCP204-MTM

d [mm] - 20

h [mm] - 33,3

a [mm] - 127

e [mm] - 95

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 14

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6003 ZZ

6003-ZZ-MTM

d [mm] - 17

D [mm] - 35

B [mm] - 10

nośność dynam. [N] - 6050

nośność stat. [N] - 3250

Waga [kg] - 0,039

Available

Product prices will become visible after signing in.

Ball bearing 607 ZZ

607-ZZ-MTM

d [mm] - 7

D [mm] - 19

B [mm] - 6,0

Bs [mm] - 6,0

load rating dynam. [N] - 1720

load rating stat. [N] - 620

Weight [kg] - 0,00800

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA207

UCPA207-MTM

d [mm] - 35

h [mm] - 47,6

a [mm] - 110

e [mm] - 80

b [mm] - 55

t [mm] - M14

r [mm] - 20

g [mm] - 13

W [mm] - 95

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14 x 2,00

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
