Ball Bearing 629 ZZ

Name: Ball Bearing 629 ZZ
SKU: 629-ZZ-MTM

Availability: Available

product code: 629-ZZ-MTM

product ean: 5907772115589

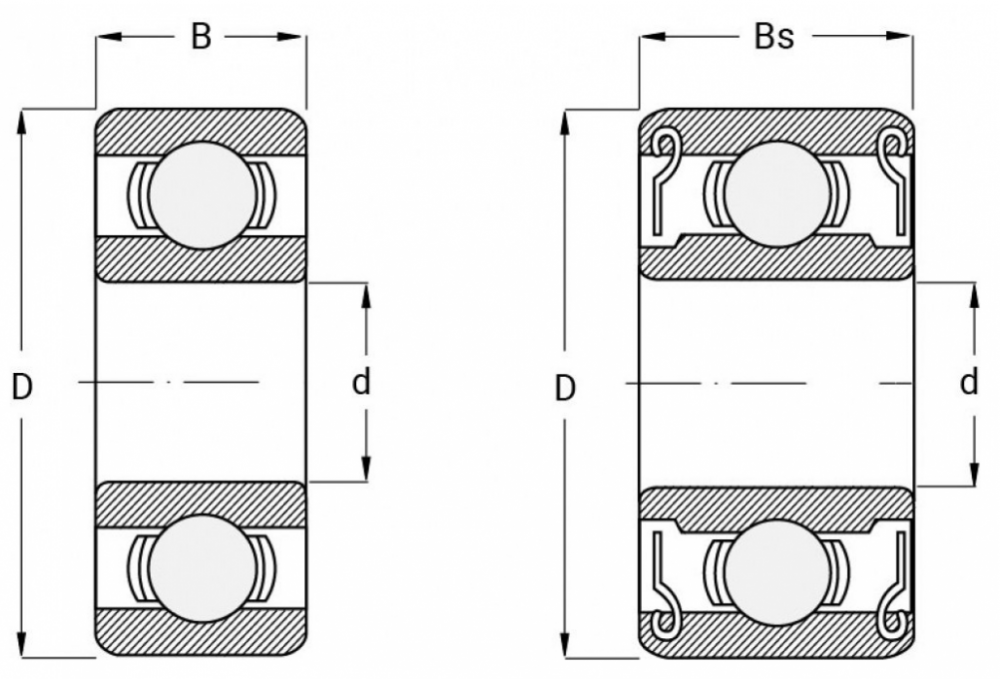

d [mm]	9
D [mm]	26
B [mm]	8,0
Bs [mm]	8,0
load rating dynam. [N]	4620
load rating stat. [N]	1960
Weight [kg]	0,01950

Download as PDF

Pillow Block Bearing UCP209

UCP209-MTM

d [mm] - 45

h [mm] - 54

a [mm] - 190

e [mm] - 146

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 20

W [mm] - 106

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6306 2RS

6306-2RS-MTM

d [mm] - 30

D [mm] - 72

B [mm] - 19

load rating dynam. [N] - 28100

load rating stat. [N] - 16000

Weight [kg] - 0,346

On order

Product prices will become visible after signing in.

Oil Seal SIMMERING 150-180-15

SIMMERING 150-180-15-MTM

internal dimension [mm] - 150

external dimension [mm] - 180

height [mm] - 15

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP211

UCP211-MTM

d [mm] - 55

h [mm] - 63,5

a [mm] - 219

e [mm] - 171

b [mm] - 60

S1 [mm] - 20

S2 [mm] - 23

g [mm] - 23

W [mm] - 125

Bi [mm] - 55,6

n [mm] - 22,2

Śruba - M16

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP212

UCP212-MTM

d [mm] - 60

h [mm] - 69,8

a [mm] - 241

e [mm] - 184

b [mm] - 70

S1 [mm] - 20

S2 [mm] - 23

g [mm] - 25

W [mm] - 138

Bi [mm] - 65,1

n [mm] - 25,4

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 25-40-7

SIMMERING 25-40-7-MTM

internal dimension [mm] - 25

external dimension [mm] - 40

height [mm] - 7

On order

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Small ball bearing 609 2RS

609-2RS-MTM

d [mm] - 9

D [mm] - 24

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3710

load rating stat. [N] - 1660

Weight [kg] - 0,01400

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL208

UCFL208-MTM

d [mm] - 40

a [mm] - 175

e [mm] - 144

i [mm] - 21

g [mm] - 14

l [mm] - 36

S [mm] - 16

b [mm] - 100

z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA207

UCPA207-MTM

d [mm] - 35

h [mm] - 47,6

a [mm] - 110

e [mm] - 80

b [mm] - 55

t [mm] - M14

r [mm] - 20

g [mm] - 13

W [mm] - 95

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14 x 2,00

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61800 (6800) ZZ

61800 (6800)-ZZ-MTM

d [mm] - 10

D [mm] - 19

B [mm] - 5

load rating dynam. [N] - 1380

load rating stat. [N] - 585

Weight [kg] - 0,006

Available

Product prices will become visible after signing in.
