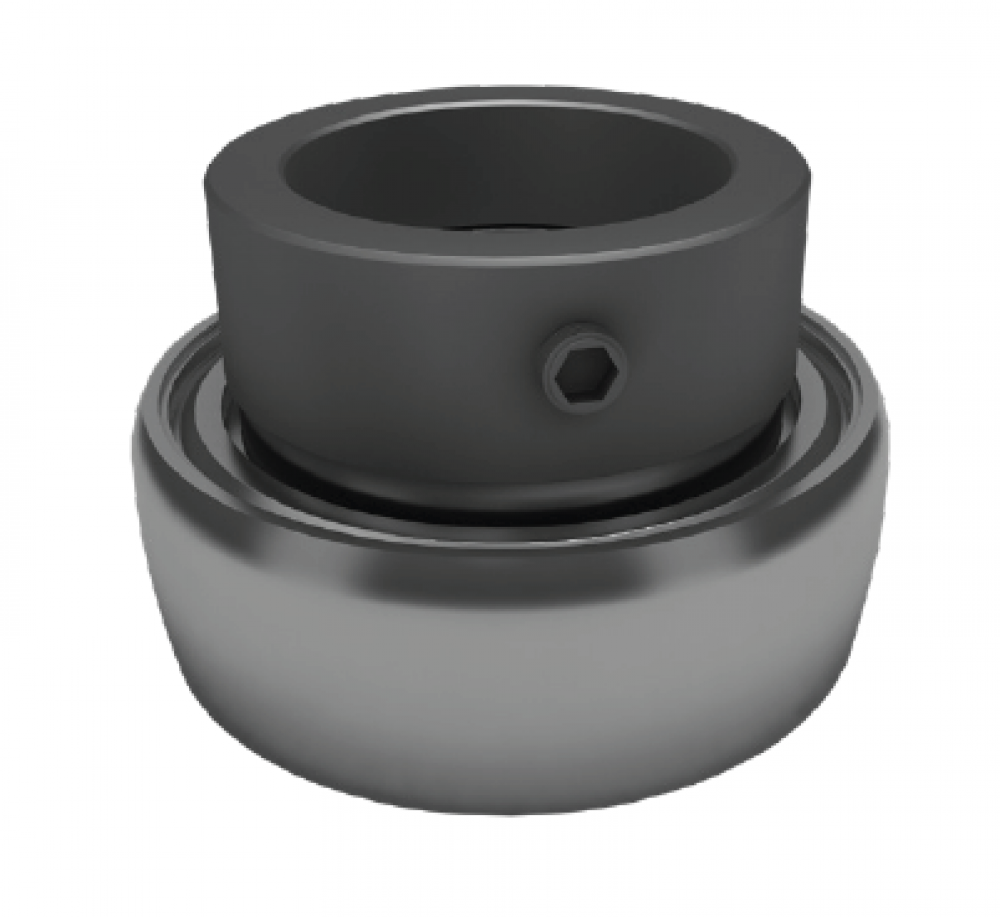

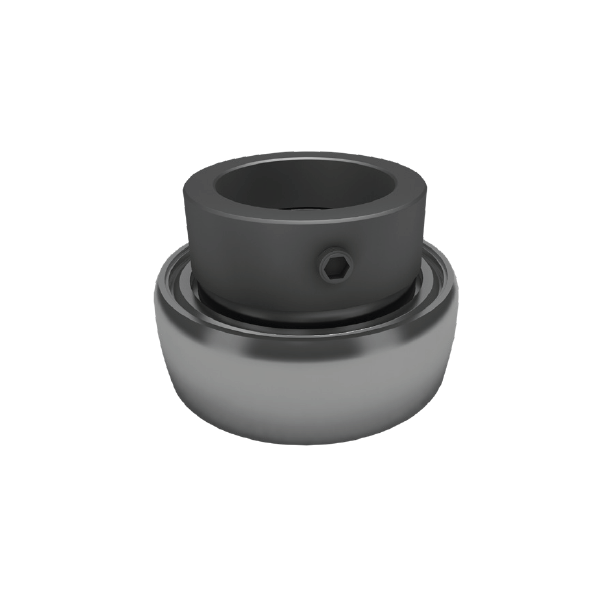

Insert ball bearing SA208

Name: Insert ball bearing SA208
SKU: SA208-MTM

Availability: Available

product code: SA208-MTM

product ean: 5907772129012

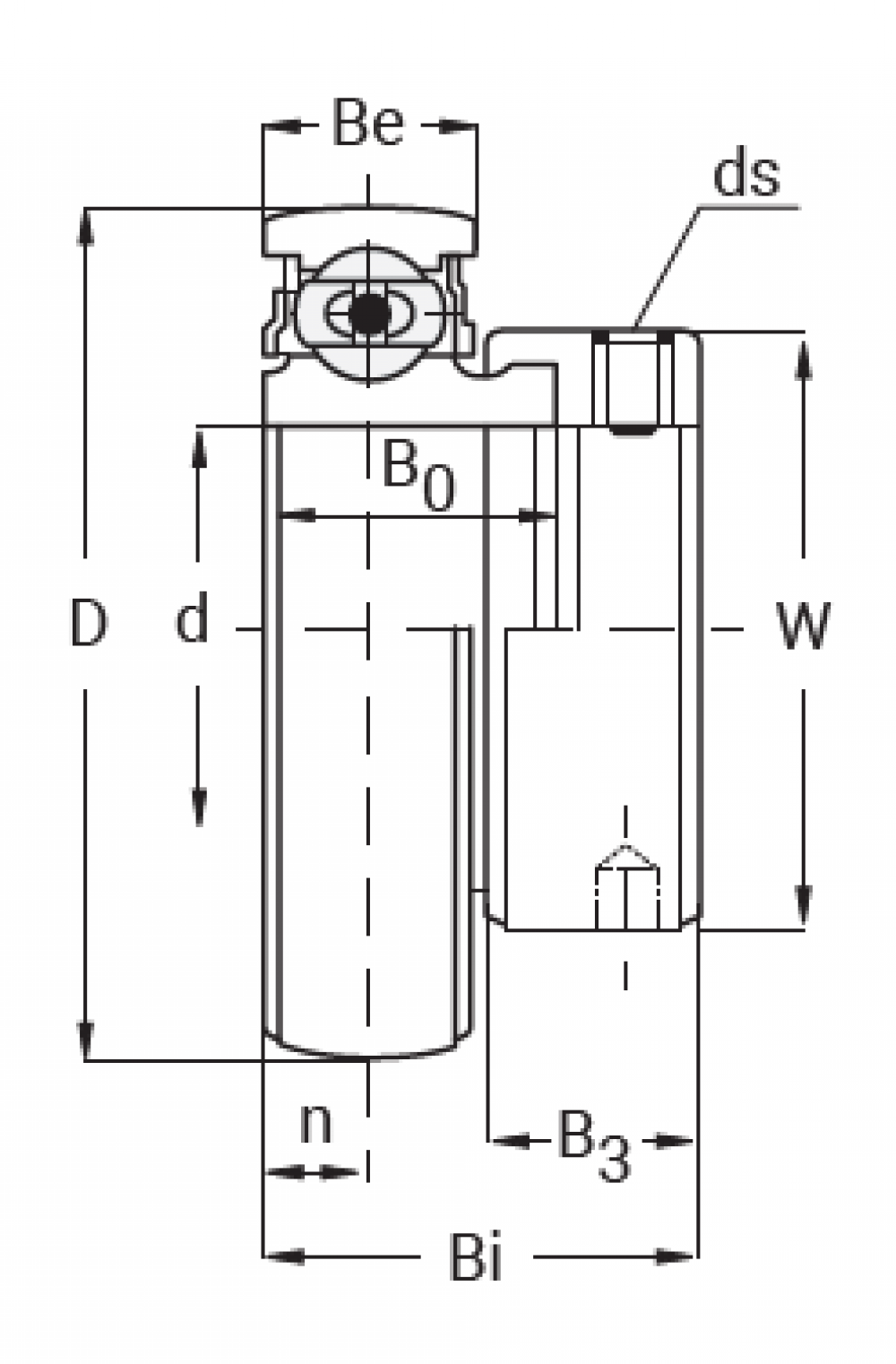

d [mm]	40
D [mm]	80
Be [mm]	18
n [mm]	9,5
Bi [mm]	41
b0 [mm]	27
b3 [mm]	18
W [mm]	60
ds [mm]	M8 x 1,00
load rating dynam. [N]	22800
load rating stat. [N]	15800
Weight [kg]	0,67

Download as PDF

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 30-52-7

SIMMERING 30-52-7-MTM

internal dimension [mm] - 30

external dimension [mm] - 52

height [mm] - 7

Available

Product prices will become visible after signing in.

Insert ball bearing K6209 2RS

K6209-2RS-MTM

d [mm] - 45

D [mm] - 85

Be [mm] - 19

nośność dynam. [N] - 24360

nośność stat. [N] - 17710

Waga [kg] - 0,395

On order

Product prices will become visible after signing in.

Insert ball bearing K6204 2RS

K6204-2RS-MTM

d [mm] - 20

D [mm] - 47

Be [mm] - 14

load rating dynam. [N] - 9880

load rating stat. [N] - 6180

Weight [kg] - 0,100

Available

Product prices will become visible after signing in.

Rod End SA25 T/K

SA25-T/K-MTM

D [mm] - 25

B [mm] - 31

M [mm] - 22

A [mm] - 60

F [mm] - 94

L [mm] - 124

O [mm] - 29,6

G [mm] - M24 x 2,00

GL [mm] - 58

Weight [kg] - 0,640

load rating dynam. [N] - 69000

load rating stat. [N] - 85000

Available

Product prices will become visible after signing in.

Needle Roller Bearing NA4907 2RS

NA4907-2RS-MTM

d [mm] - 35

D [mm] - 55

B [mm] - 20

Fw [mm] - 42

rsmin [mm] - 0,6

nośność dynam. [N] - 31900

nośność stat. [N] - 54000

Waga [kg] - 0,170

Available

Product prices will become visible after signing in.

Needle Roller Bearing NA4912 2RS

NA4912-2RS-MTM

d [mm] - 60

D [mm] - 85

B [mm] - 25

Fw [mm] - 68

nośność dynam. [N] -

nośność stat. [N] -

Available

Product prices will become visible after signing in.

Ball Bearing 6403 2RS

6403-2RS-MTM

d [mm] - 17

D [mm] - 62

B [mm] - 17

nośność dynam. [N] - 22900

nośność stat. [N] - 10800

Waga [kg] - 0,272

Available

Product prices will become visible after signing in.

Needle Roller Bearing NA4901 2RS

NA4901-2RS-MTM

d [mm] - 12

D [mm] - 24

B [mm] - 13

Fw [mm] - 16

rsmin [mm] - 0,3

load rating dynam. [N] - 9900

load rating stat. [N] - 12200

Weight [kg] - 0,026

Available

Product prices will become visible after signing in.

Split Unit SN512

SN512-MTM

d [mm] - 55

E [mm] - 210

L [mm] - 105

D [mm] - 110

b [mm] - 70

F [mm] - 38

G [mm] - 30

H [mm] - 135

u [mm] - 18

v [mm] - 23

A [mm] - 70

B [mm] - 255

M [mm] - M12

S [mm] - M16

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Insert ball bearing K6206 2RS

K6206-2RS-MTM

d [mm] - 30

D [mm] - 62

Be [mm] - 16

load rating dynam. [N] - 14970

load rating stat. [N] - 10040

Weight [kg] - 0,185

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCT209

UCT209-MTM

d [mm] - 45

o [mm] - 19

g [mm] - 16

p [mm] - 83

q [mm] - 49

S [mm] - 29

b [mm] - 83

k [mm] - 16

e [mm] - 102

a [mm] - 117

W [mm] - 144

j [mm] - 49

l [mm] - 35

h [mm] - 87

Bi [mm] - 49,2

n [mm] - 19

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
