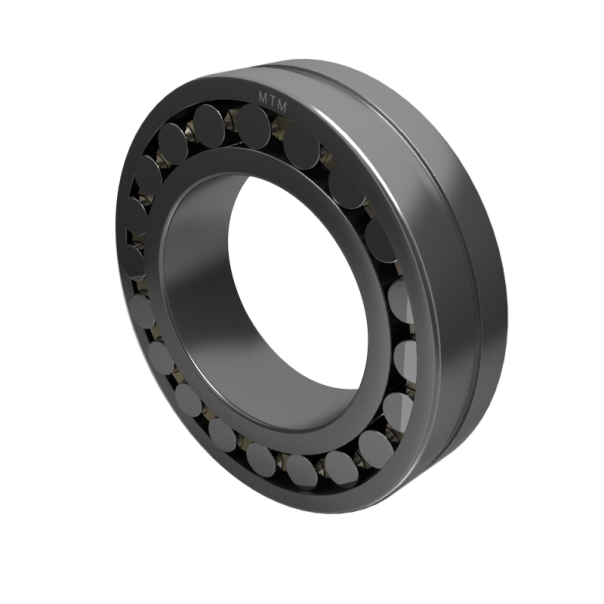

Spherical roller bearings 22213 KCW33

Name: Spherical roller bearings 22213 KCW33
SKU: 22213-KCW33-MTM

Availability: On order

product code: 22213-KCW33-MTM

product ean: 5907772102725

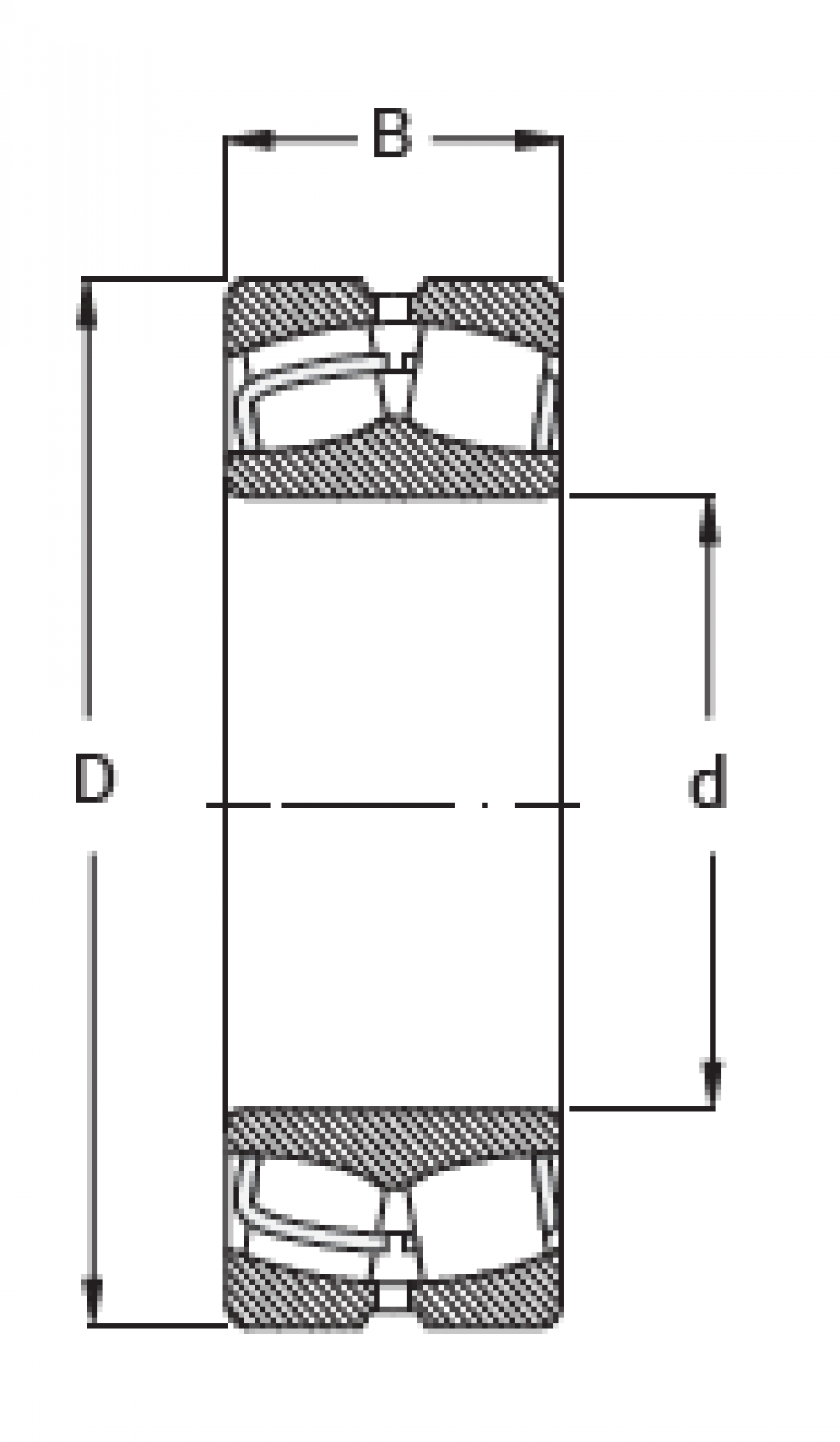

d [mm]	65
D [mm]	120
B [mm]	31
load rating dynam. [N]	148000
load rating stat. [N]	183000
Weight [kg]	1,45

Download as PDF

Adapter sleeve H313

H313-MTM

d1 [mm] - 60

d [mm] - 65

D [mm] - 85

B1 [mm] - 50

B2 [mm] - 14

G [mm] - M65 x 2,00

Waga [kg] - 0,420

Model nakrętki - KM 13

Model podkładki - MB 13

Model łożyska kulkowo-wahliwego - 1313K / 2213K

Model łożyska baryłkowego - 21313K / 22213K

Available

Product prices will become visible after signing in.

Split Unit SNH513 TG

SNH513-TG-MTM

d [mm] - 60

L [mm] - 110

D [mm] - 120

d2 [mm] - 77

d3 [mm] - 85,5

S [mm] - M16

f [mm] - 5

F [mm] - 51

G [mm] - 30

H [mm] - 147

u [mm] - 18

v [mm] - 24

A [mm] - 80

B [mm] - 275

b [mm] - 80

E [mm] - 230

On order

Product prices will become visible after signing in.

Spherical roller bearings 22222 KMW33

22222-KMW33-MTM

d [mm] - 110

D [mm] - 200

B [mm] - 53

load rating dynam. [N] - 408000

load rating stat. [N] - 560000

Weight [kg] - 7,00

On order

Product prices will become visible after signing in.

Adapter sleeve H308

H308-MTM

d1 [mm] - 35

d [mm] - 40

D [mm] - 58

B1 [mm] - 36

B2 [mm] - 10

G [mm] - M40 x 1,50

Weight [kg] - 0,170

Nut model - KM 08

Washer model - MB 08

Self-aligning ball bearing model - 1308K / 2208K

Spherical bearing model - 21308K / 22208K

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RSC3

6204-2RSC3-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Non-standard bearing 60/22 2RS

60/22-2RS-MTM

d [mm] - 22

D [mm] - 44

B [mm] - 12

load rating dynam. [N] - 10400

load rating stat. [N] - 5050

Weight [kg] - 0,081

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.
