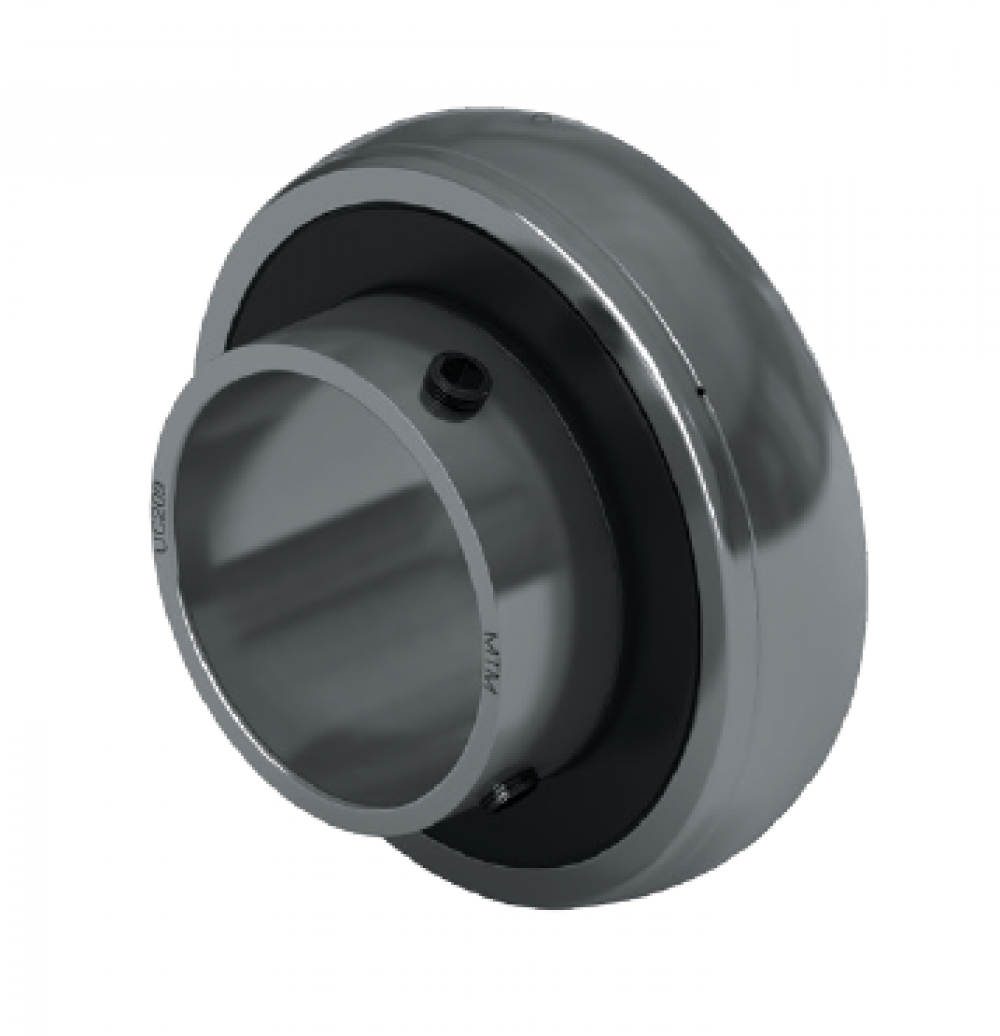

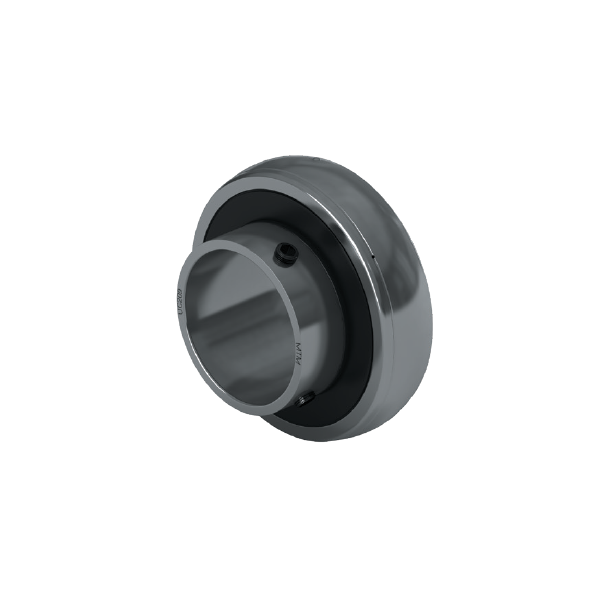

Insert ball bearing UC204

Name: Insert ball bearing UC204
SKU: UC204-MTM

Availability: Available

product code: UC204-MTM

product ean: 5907772141083

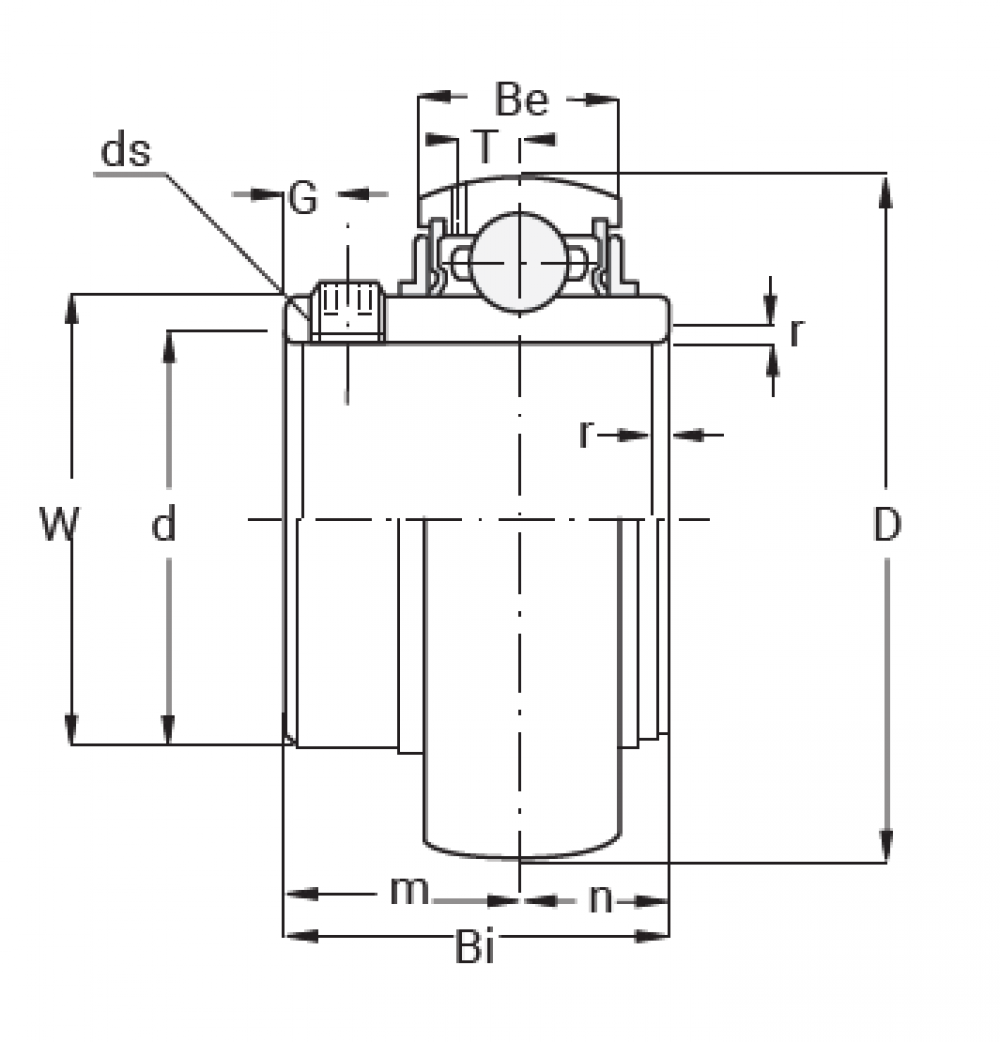

d [mm]	20
D [mm]	47
Bi [mm]	31
Be [mm]	17
r [mm]	1,5
n [mm]	12,7
m [mm]	18,3
G [mm]	4,5
ds [mm]	M6 x 0,75
T [mm]	4,5
W [mm]	29
load rating dynam. [N]	9880
load rating stat. [N]	6180
Weight [kg]	0,16

Download as PDF

Pillow Block Bearing UCPA204

UCPA204-MTM

d [mm] - 20

h [mm] - 30,2

a [mm] - 76

e [mm] - 52

b [mm] - 40

t [mm] - M10

r [mm] - 15

g [mm] - 11

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10x1,50

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Insert ball bearing UC208

UC208-MTM

d [mm] - 40

D [mm] - 80

Bi [mm] - 49,2

Be [mm] - 21

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,2

W [mm] - 53

nośność dynam. [N] - 22800

nośność stat. [N] - 15800

Waga [kg] - 0,62

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFL207

UCFL207-MTM

d [mm] - 35

a [mm] - 161

e [mm] - 130

i [mm] - 19

g [mm] - 14

l [mm] - 34

S [mm] - 16

b [mm] - 90

z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC206

UC206-MTM

d [mm] - 30

D [mm] - 62

Bi [mm] - 38,1

Be [mm] - 19

r [mm] - 1,5

n [mm] - 15,9

m [mm] - 22,2

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 5,1

W [mm] - 40,5

load rating dynam. [N] - 15000

load rating stat. [N] - 10000

Weight [kg] - 0,31

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF212

UCF212-MTM

d [mm] - 60

a [mm] - 175

e [mm] - 143

i [mm] - 29

g [mm] - 20

l [mm] - 48

S [mm] - 19

Z [mm] - 68,7

Bi [mm] - 65,1

n [mm] - 25,4

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL208

UCFL208-MTM

d [mm] - 40

a [mm] - 175

e [mm] - 144

i [mm] - 21

g [mm] - 14

l [mm] - 36

S [mm] - 16

b [mm] - 100

z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.
