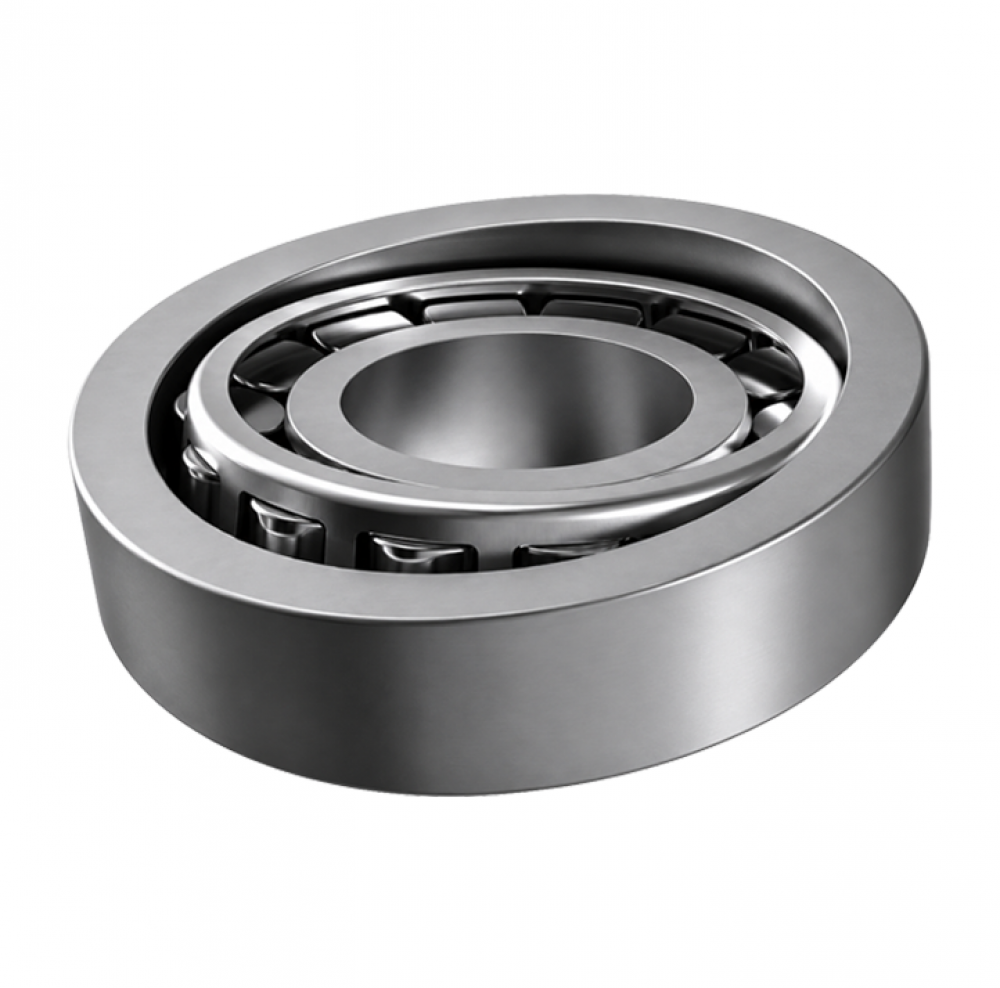

Tapered Roller Bearing 32207

Name: Tapered Roller Bearing 32207
SKU: 32207-MTM

Availability: Available

product code: 32207-MTM

product ean: 5907772106327

Product prices will become visible after signing in.

d [mm]	35
D [mm]	72
T [mm]	24,25
Weight [kg]	0,430
load rating dynam. [N]	66000
nośność stat.[N]	78000

Download as PDF

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Chain V10B-1

V10B-1-MTM

ISO DIN - 10B-1

Pitch P [inch] - 5/8"

Pitch P [mm] - 15.875

⌀ Roller d1 max [mm] - 10.16

Inner working dimension b1 min [mm] - 9.65

⌀ pin d2 max [mm] - 5.08

Pin lenght L max [mm] - 19.6

Connecting pin lenght Lc max [inch] - 23.7

Inner plate depth H max [mm] - 14.73

Breaking load rating Q min [KN] - 22.2

Waga [kg/m] - 0.93

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RSC3

6304-2RSC3-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

nośność dynam. [N] - 15900

nośność stat. [N] - 7800

Waga [kg] - 0,144

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 50-72-10

SIMMERING 50-72-10-MTM

internal dimension [mm] - 50

external dimension [mm] - 72

height [mm] - 10

Available

Product prices will become visible after signing in.

Rod End SIL10 T/K

SIL10-T/K-MTM

D [mm] - 10

B [mm] - 14

M [mm] - 10,5

A [mm] - 28

F [mm] - 43

L [mm] - 57

K [mm] - 19

J [mm] - 15

O [mm] - 12,9

G [mm] - M10 x 1,50

GL [mm] - 20

Sw +10/-5% [mm] - 17

Weight [kg] - 0,077

load rating dynam. [N] - 14500

load rating stat. [N] - 18000

Available

Product prices will become visible after signing in.

Tapered Roller Bearing 32206

32206-MTM

d [mm] - 30

D [mm] - 62

T [mm] - 21,25

Waga [kg] - 0,280

nośność dynam. [N] - 50100

nośność stat.[N] - 57000

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL208

UCFL208-MTM

d [mm] - 40

a [mm] - 175

e [mm] - 144

i [mm] - 21

g [mm] - 14

l [mm] - 36

S [mm] - 16

b [mm] - 100

z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 62310 2RS

62310-2RS-MTM

d [mm] - 50

D [mm] - 110

B [mm] - 40

nośność dynam. [N] - 61800

nośność stat. [N] - 38000

Waga [kg] - 1,500

Available

Product prices will become visible after signing in.

Rod End SA16 T/K

SA16-T/K-MTM

D [mm] - 16

B [mm] - 21

M [mm] - 15

A [mm] - 42

F [mm] - 66

L [mm] - 87

O [mm] - 19,3

G [mm] - M16 x 2,00

GL [mm] - 40

Weight [kg] - 28500

load rating dynam. [N] - 39000

load rating stat. [N] - 0,210

Available

Product prices will become visible after signing in.

Rod End SI20 T/K

SI20-T/K-MTM

D [mm] - 20

B [mm] - 25

M [mm] - 18

A [mm] - 50

F [mm] - 77

L [mm] - 102

K [mm] - 34

J [mm] - 27,5

O [mm] - 24,3

G [mm] - M20 x 1,50

GL [mm] - 33

Sw +10/-5% [mm] - 30

Weight [kg] - 0,420

load rating dynam. [N] - 42500

load rating stat. [N] - 57000

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Ball Bearing 6201 2RS

6201-2RS-MTM

d [mm] - 12

D [mm] - 32

B [mm] - 10

load rating dynam. [N] - 6890

load rating stat. [N] - 3100

Weight [kg] - 0,037

Available

Product prices will become visible after signing in.
