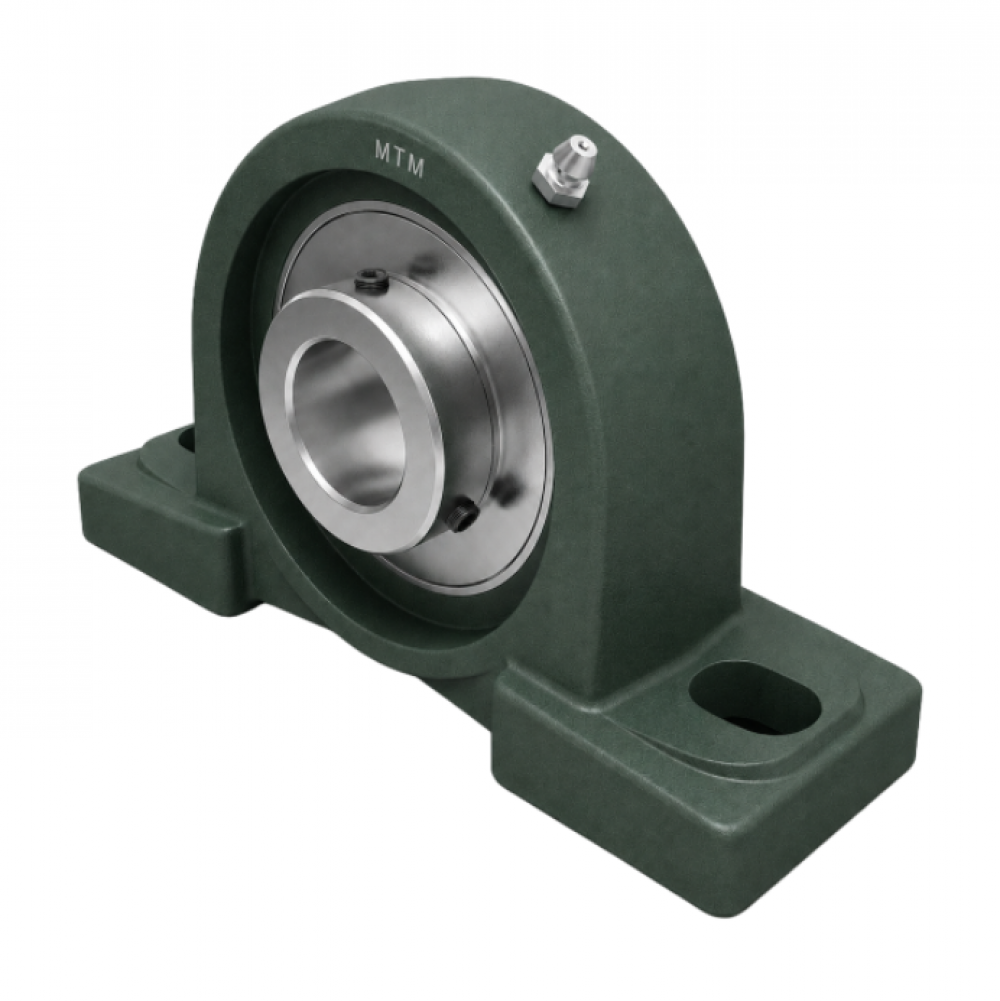

Pillow Block Bearing UCP208

Availability: On order

product code: UCP208-MTM

product ean: 5907772142387

d [mm]	40
h [mm]	49,2
a [mm]	184
e [mm]	137
b [mm]	54
S1 [mm]	17
S2 [mm]	20
g [mm]	18
W [mm]	100
Bi [mm]	49,2
n [mm]	19
Bolt	M14
Note:	Version TS (with triple sealing) available on request

Download as PDF

Product description

Zespół łożyskowy typ UCP208

Wymiary zespołu łożyskowego UCP208

d: 40 mm

h: 49,2 mm

a: 184 mm

e: 137 mm

b: 54 mm

S1: 17 mm

S2: 20 mm

g: 18 mm

W: 100 mm

Bi: 49,2 mm

n: 19 mm
