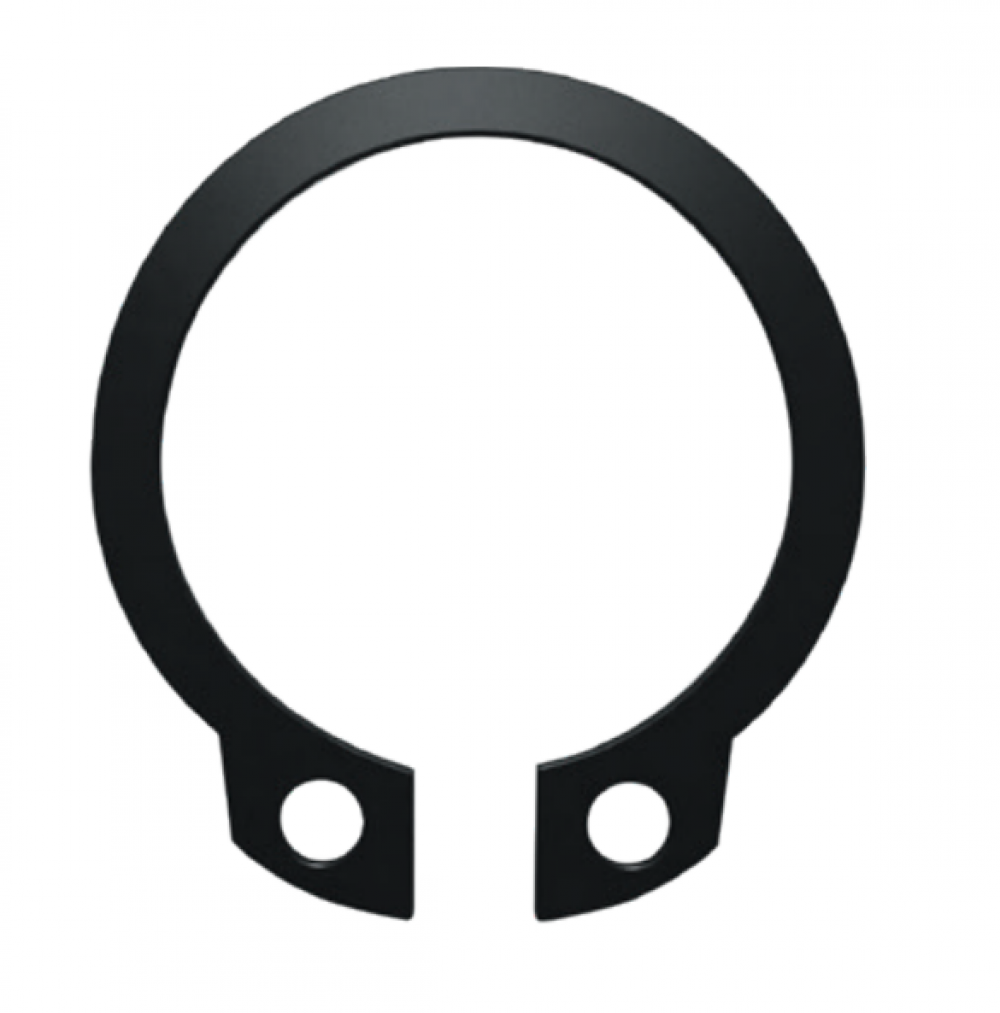

Retaining ring SEGZ80

Name: Retaining ring SEGZ80
SKU: SEGZ80-MTM

Availability: Available

product code: SEGZ80-MTM

product ean: 5907772149829

d1 [mm]	80
d2 [mm]	76.5
d3 [mm]	74.5
d5 min [mm]	3
amax [mm]	8.6
~b [mm]	7.4
s +/- 4% [mm]	2.5
m H13 [mm]	2.65
n min [mm]	5.3

Download as PDF
