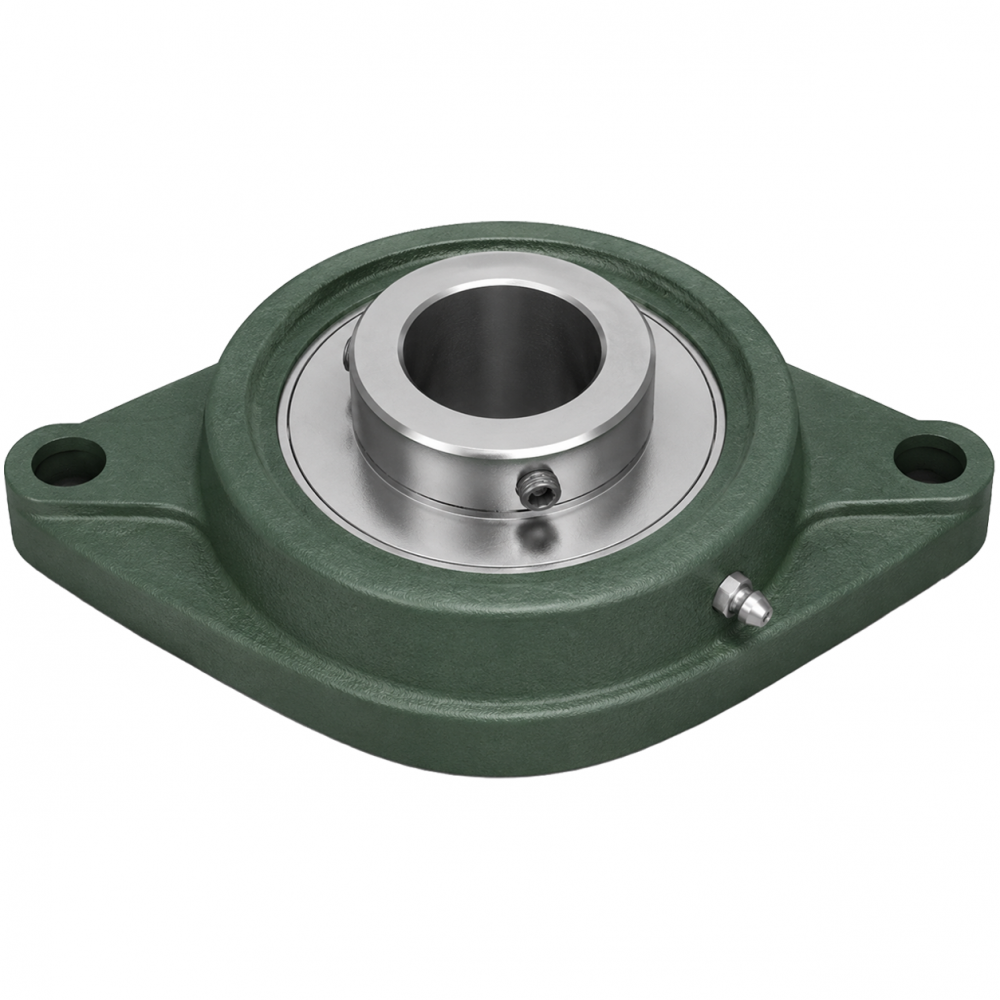

Pillow Block Bearing UCFL204

Name: Pillow Block Bearing UCFL204
SKU: UCFL204-MTM

Availability: Available

product code: UCFL204-MTM

product ean: 5907772142028

d [mm]	17
a [mm]	113
e [mm]	90
i [mm]	15
g [mm]	11
l [mm]	25,5
S [mm]	12
b [mm]	60
z [mm]	33,3
Bi [mm]	31
n [mm]	12,7
Bolt	M10
Note:	Version TS (with triple sealing) available on request

Download as PDF
