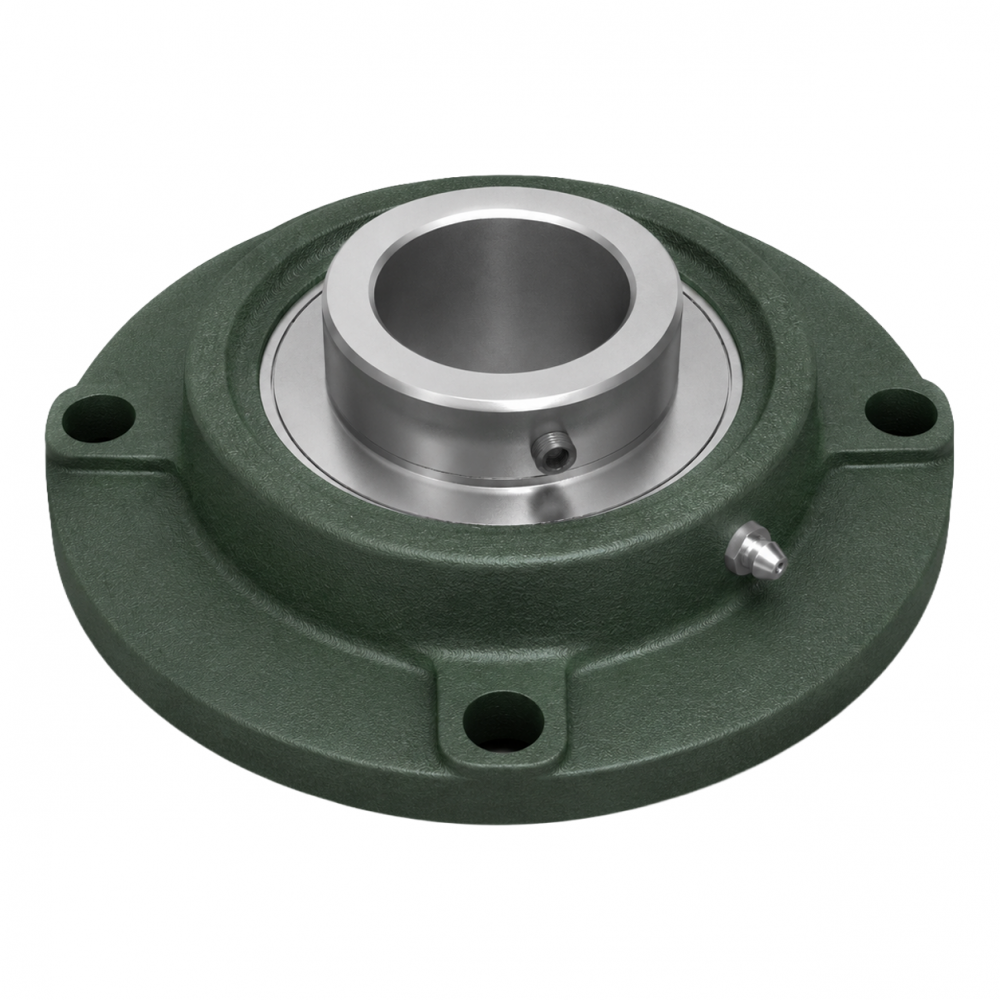

Pillow Block Bearing UCFC214

Name: Pillow Block Bearing UCFC214
SKU: UCFC214-MTM

Availability: Available

product code: UCFC214-MTM

product ean: 5907772141892

d [mm]	70
a [mm]	215
p [mm]	177
e [mm]	125,1
i [mm]	17
S [mm]	19
j [mm]	14
k [mm]	18
g [mm]	40
f [mm]	150
z [mm]	61,4
Bi [mm]	74,6
n [mm]	30,2
Śruba	M16
Uwaga	Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Download as PDF

Pillow Block Bearing UCP208

UCP208-MTM

d [mm] - 40

h [mm] - 49,2

a [mm] - 184

e [mm] - 137

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 18

W [mm] - 100

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC207

UC207-MTM

d [mm] - 35

D [mm] - 72

Bi [mm] - 42,9

Be [mm] - 20

r [mm] - 2

n [mm] - 17,5

m [mm] - 25,4

G [mm] - 6

ds [mm] - M8 x 1,00

T [mm] - 5,8

W [mm] - 48

load rating dynam. [N] - 19800

load rating stat. [N] - 13500

Weight [kg] - 0,48

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 75-100-13

SIMMERING 75-100-13-MTM

internal dimension [mm] - 75

external dimension [mm] - 100

height [mm] - 13

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 45-72-10

SIMMERING 45-72-10-MTM

wymiar wewnętrzny [mm] - 45

wymiar zewnętrzny [mm] - 72

wysokość [mm] - 10

Available

Product prices will become visible after signing in.

Adapter sleeve H311

H311-MTM

d1 [mm] - 50

d [mm] - 55

D [mm] - 75

B1 [mm] - 45

B2 [mm] - 12

G [mm] - M55 x 2,00

Weight [kg] - 0,320

Nut model - KM 11

Washer model - MB 11

Self-aligning ball bearing model - 1311K / 2211K

Spherical bearing model - 21311K / 22211K

Available

Product prices will become visible after signing in.

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Adapter sleeve H313

H313-MTM

d1 [mm] - 60

d [mm] - 65

D [mm] - 85

B1 [mm] - 50

B2 [mm] - 14

G [mm] - M65 x 2,00

Weight [kg] - 0,420

Nut model - KM 13

Washer model - MB 13

Self-aligning ball bearing model - 1313K / 2213K

Spherical bearing model - 21313K / 22213K

Available

Product prices will become visible after signing in.

Retaining ring SEGZ25(100pcs)

SEGZ25(100szt)-MTM

d1 [mm] - 25

d2 [mm] - 23,9

d3 [mm] - 23,2

d5 min [mm] - 2

amax [mm] - 4,4

~b [mm] - 3

s +/- 4% [mm] - 1,2

m H13 [mm] - 1,3

n min [mm] - 1,7

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP209

UCP209-MTM

d [mm] - 45

h [mm] - 54

a [mm] - 190

e [mm] - 146

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 20

W [mm] - 106

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL208

UCFL208-MTM

d [mm] - 40

a [mm] - 175

e [mm] - 144

i [mm] - 21

g [mm] - 14

l [mm] - 36

S [mm] - 16

b [mm] - 100

z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFC207

UCFC207-MTM

d [mm] - 35

a [mm] - 135

p [mm] - 110

e [mm] - 77,8

i [mm] - 11

S [mm] - 14

j [mm] - 8

k [mm] - 9

g [mm] - 26

f [mm] - 90

z [mm] - 36,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
