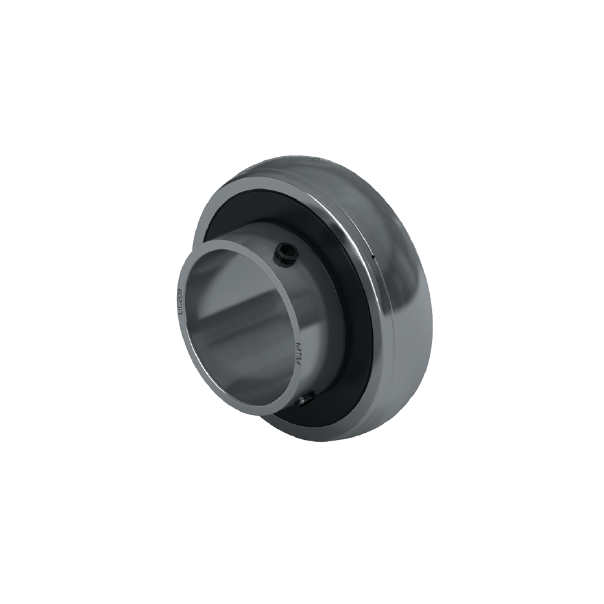

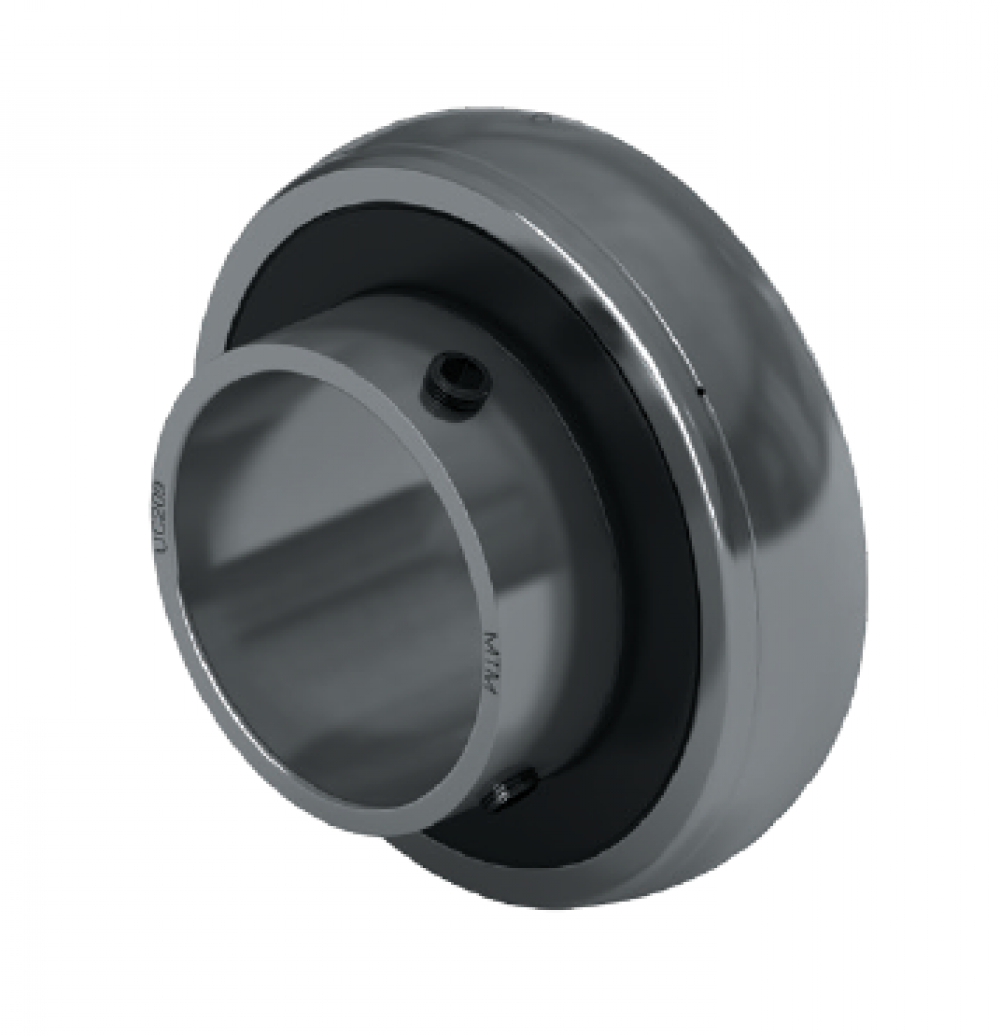

Insert ball bearing UC205

Name: Insert ball bearing UC205
SKU: UC205-MTM

Availability: Available

product code: UC205-MTM

product ean: 5907772141090

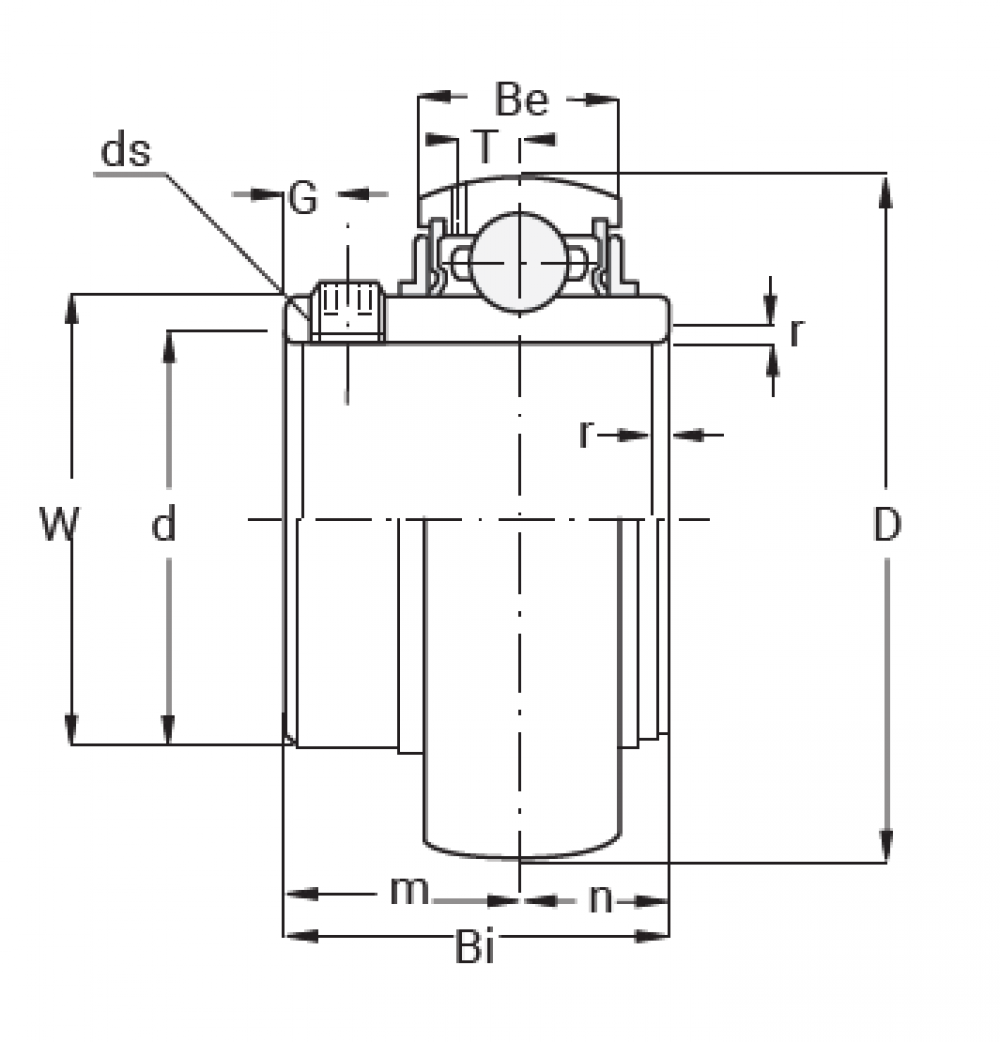

d [mm]	25
D [mm]	52
Bi [mm]	34
Be [mm]	17
r [mm]	1,5
n [mm]	14,3
m [mm]	19,7
G [mm]	5
ds [mm]	M6 x 0,75
T [mm]	4,5
W [mm]	34
load rating dynam. [N]	10800
load rating stat. [N]	6950
Weight [kg]	0,19

Download as PDF

Insert ball bearing UC208

UC208-MTM

d [mm] - 40

D [mm] - 80

Bi [mm] - 49,2

Be [mm] - 21

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,2

W [mm] - 53

load rating dynam. [N] - 22800

load rating stat. [N] - 15800

Weight [kg] - 0,62

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61807 (6807) 2RS

61807 (6807)-2RS-MTM

d [mm] - 35

D [mm] - 47

B [mm] - 7

nośność dynam. [N] - 4750

nośność stat. [N] - 3200

Waga [kg] - 0,030

Available

Product prices will become visible after signing in.

Ball Bearing 61801 (6801) 2RS

61801 (6801)-2RS-MTM

d [mm] - 12

D [mm] - 21

B [mm] - 5

nośność dynam. [N] - 1430

nośność stat. [N] - 670

Waga [kg] - 0,006

Available

Product prices will become visible after signing in.

Insert ball bearing UC204

UC204-MTM

d [mm] - 20

D [mm] - 47

Bi [mm] - 31

Be [mm] - 17

r [mm] - 1,5

n [mm] - 12,7

m [mm] - 18,3

G [mm] - 4,5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 29

nośność dynam. [N] - 9880

nośność stat. [N] - 6180

Waga [kg] - 0,16

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61802 (6802) 2RS

61802 (6802)-2RS-MTM

d [mm] - 15

D [mm] - 24

B [mm] - 5

nośność dynam. [N] - 1560

nośność stat. [N] - 800

Waga [kg] - 0,007

Available

Product prices will become visible after signing in.

Insert ball bearing UC210

UC210-MTM

d [mm] - 50

D [mm] - 90

Bi [mm] - 51,6

Be [mm] - 23

r [mm] - 2

n [mm] - 19

m [mm] - 32,6

G [mm] - 9

ds [mm] - M10 x 1,25

T [mm] - 6,5

W [mm] - 63

load rating dynam. [N] - 27000

load rating stat. [N] - 19800

Weight [kg] - 0,78

Available

Product prices will become visible after signing in.

Insert ball bearing UC207

UC207-MTM

d [mm] - 35

D [mm] - 72

Bi [mm] - 42,9

Be [mm] - 20

r [mm] - 2

n [mm] - 17,5

m [mm] - 25,4

G [mm] - 6

ds [mm] - M8 x 1,00

T [mm] - 5,8

W [mm] - 48

load rating dynam. [N] - 19800

load rating stat. [N] - 13500

Weight [kg] - 0,48

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF207

UCF207-MTM

d [mm] - 35

a [mm] - 117

e [mm] - 92

i [mm] - 19

g [mm] - 16

l [mm] - 34

S [mm] - 14

Z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC206

UC206-MTM

d [mm] - 30

D [mm] - 62

Bi [mm] - 38,1

Be [mm] - 19

r [mm] - 1,5

n [mm] - 15,9

m [mm] - 22,2

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 5,1

W [mm] - 40,5

load rating dynam. [N] - 15000

load rating stat. [N] - 10000

Weight [kg] - 0,31

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61806 (6806) 2RS

61806 (6806)-2RS-MTM

d [mm] - 30

D [mm] - 42

B [mm] - 7

nośność dynam. [N] - 4490

nośność stat. [N] - 2900

Waga [kg] - 0,027

Available

Product prices will become visible after signing in.
