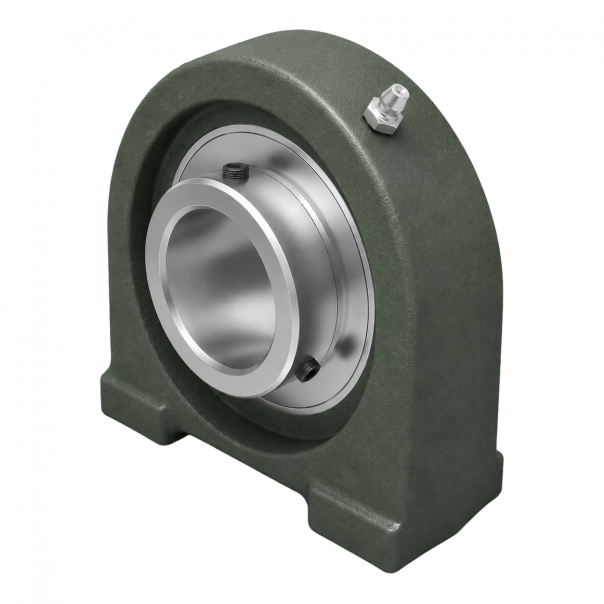

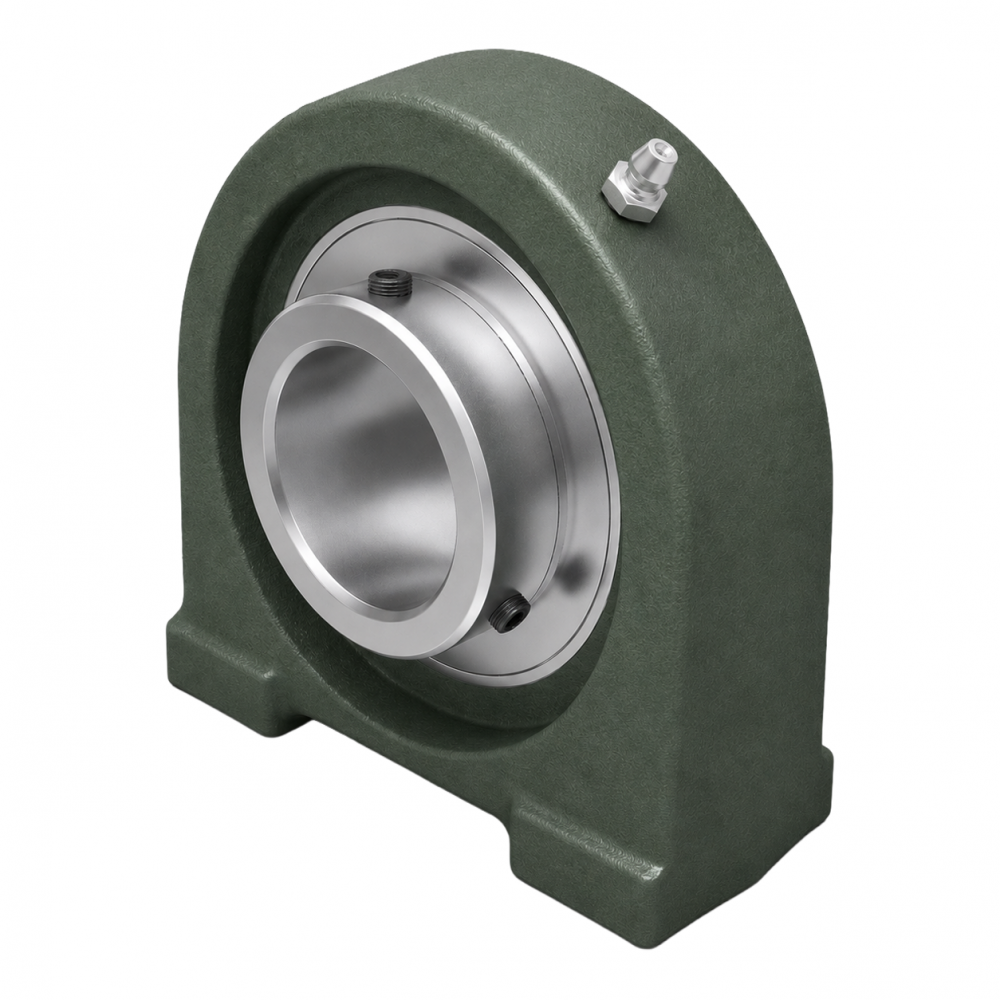

Pillow Block Bearing UCPA202

Name: Pillow Block Bearing UCPA202
SKU: UCPA202-MTM

Availability: Available

product code: UCPA202-MTM

product ean: 5907772142684

d [mm]	15
h [mm]	30,2
a [mm]	76
e [mm]	52
b [mm]	40
t [mm]	M10
r [mm]	15
g [mm]	11
W [mm]	62
Bi [mm]	31
n [mm]	12,7
Śruba	M10x1,50
Uwaga	Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)
