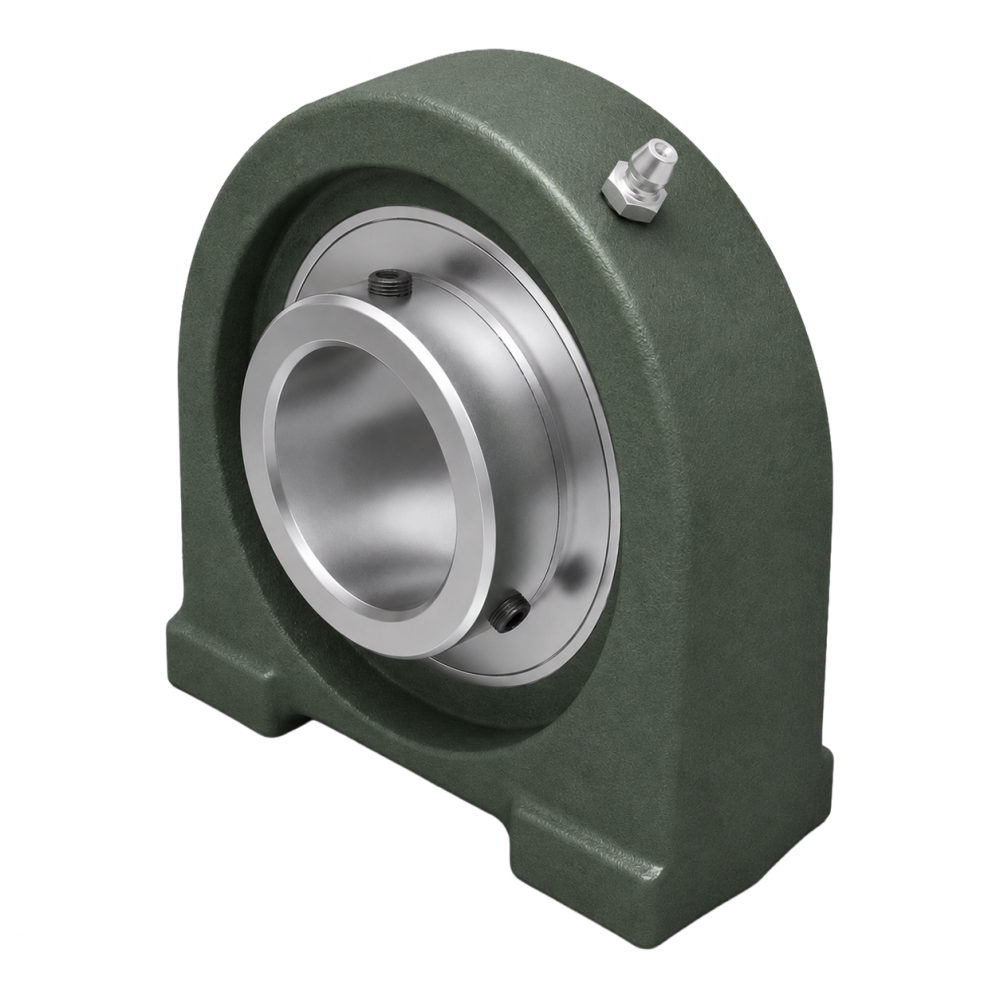

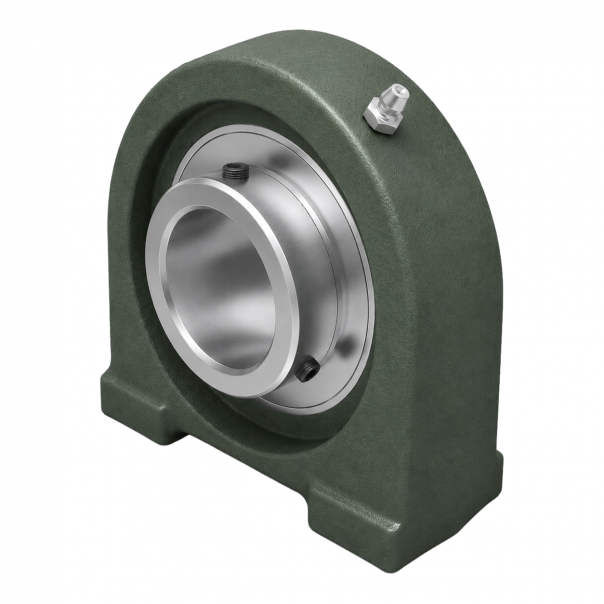

Pillow Block Bearing UCPA209

Name: Pillow Block Bearing UCPA209
SKU: UCPA209-MTM

Availability: Available

product code: UCPA209-MTM

product ean: 5907772142783

d [mm]	45
h [mm]	54,2
a [mm]	120
e [mm]	90
b [mm]	60
t [mm]	M14
r [mm]	25
g [mm]	13
W [mm]	108
Bi [mm]	49,2
n [mm]	19
Bolt	M14 x 2,00
Note:	Version TS (with triple sealing) available on request

Download as PDF

Stainless Bearing Unit SSUCPA206

SSUCPA206-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 94

e [mm] - 66

b [mm] - 50

t [mm] - M14

r [mm] - 18

g [mm] - 12

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Note: - -

Available

Product prices will become visible after signing in.

Ball Bearing 6303 2RSC3

6303-2RSC3-MTM

d [mm] - 17

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 13500

load rating stat. [N] - 6550

Weight [kg] - 0,115

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFC202

UCFC202-MTM

d [mm] - 15

a [mm] - 100

p [mm] - 78

e [mm] - 55,1

i [mm] - 10

S [mm] - 12

j [mm] - 5

k [mm] - 7

g [mm] - 20,5

f [mm] - 62

z [mm] - 28,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Stainless Steel Thermoplastic SUCP210-TP

SUCP210-TP-MTM

d [mm] - 50

h [mm] - 57,2

a [mm] - 206

e [mm] - 159

b [mm] - 60

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 23

W [mm] - 114

Bi [mm] - 51,6

n [mm] - 19

Bolt - M16

Note: - -

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCPA207

SSUCPA207-MTM

d [mm] - 35

h [mm] - 47,6

a [mm] - 110

e [mm] - 80

b [mm] - 55

t [mm] - M14

r [mm] - 20

g [mm] - 13

W [mm] - 95

Bi [mm] - 42,9

n [mm] - 17,5

Note: - -

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP206

UCP206-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 160

e [mm] - 121

b [mm] - 44

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 17

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6201 2RS

6201-2RS-MTM

d [mm] - 12

D [mm] - 32

B [mm] - 10

load rating dynam. [N] - 6890

load rating stat. [N] - 3100

Weight [kg] - 0,037

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCFL204

SSUCFL204-MTM

d [mm] - 20

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 60

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - -

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP204

UCP204-MTM

d [mm] - 20

h [mm] - 33,3

a [mm] - 127

e [mm] - 95

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 14

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 32-40-7

SIMMERING 32-40-7-MTM

internal dimension [mm] - 32

external dimension [mm] - 40

height [mm] - 7

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCFL206

SSUCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 80

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - -

On order

Product prices will become visible after signing in.
