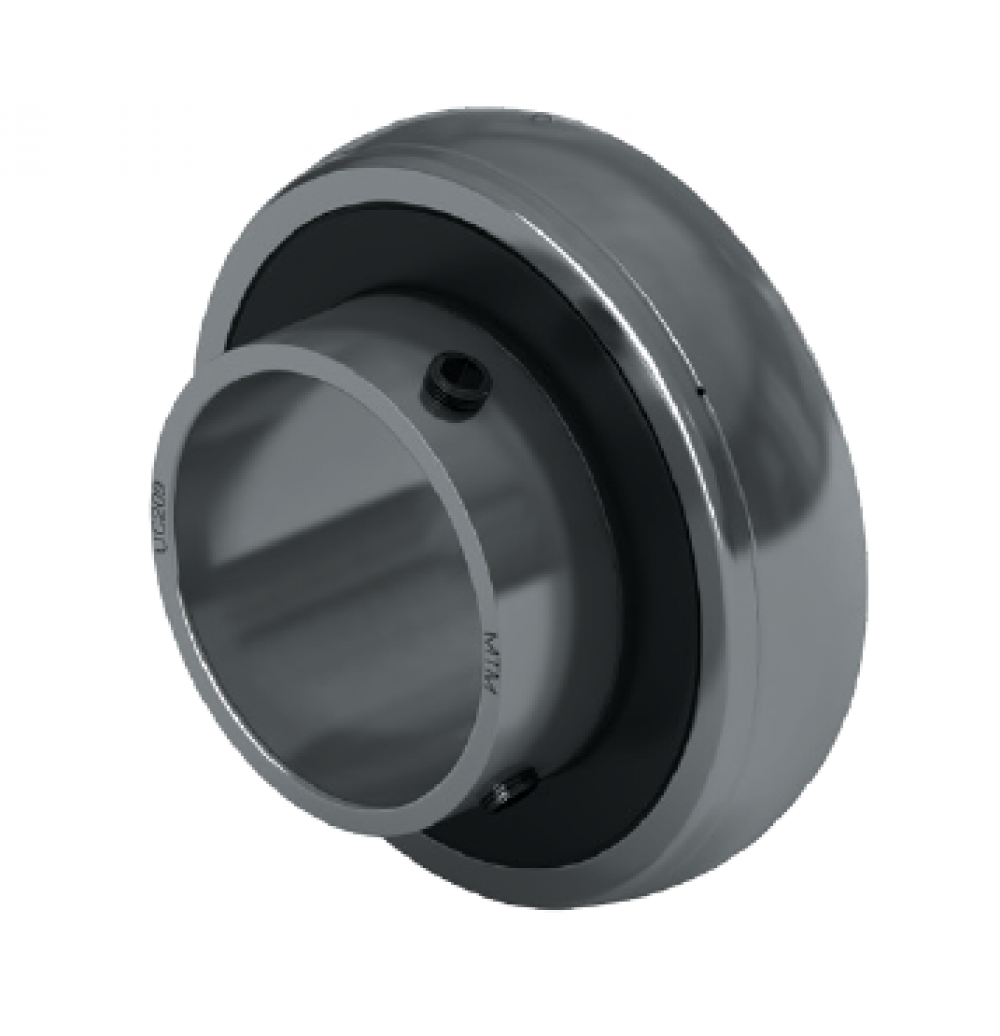

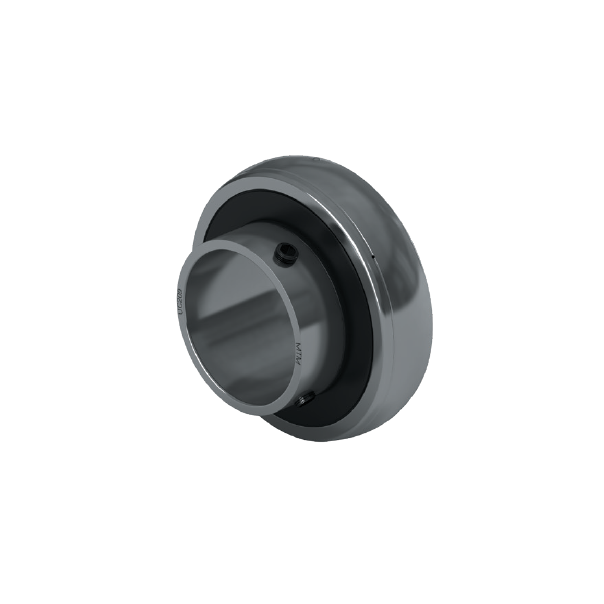

Insert ball bearing UC206

Name: Insert ball bearing UC206
SKU: UC206-MTM

Availability: Available

product code: UC206-MTM

product ean: 5907772141113

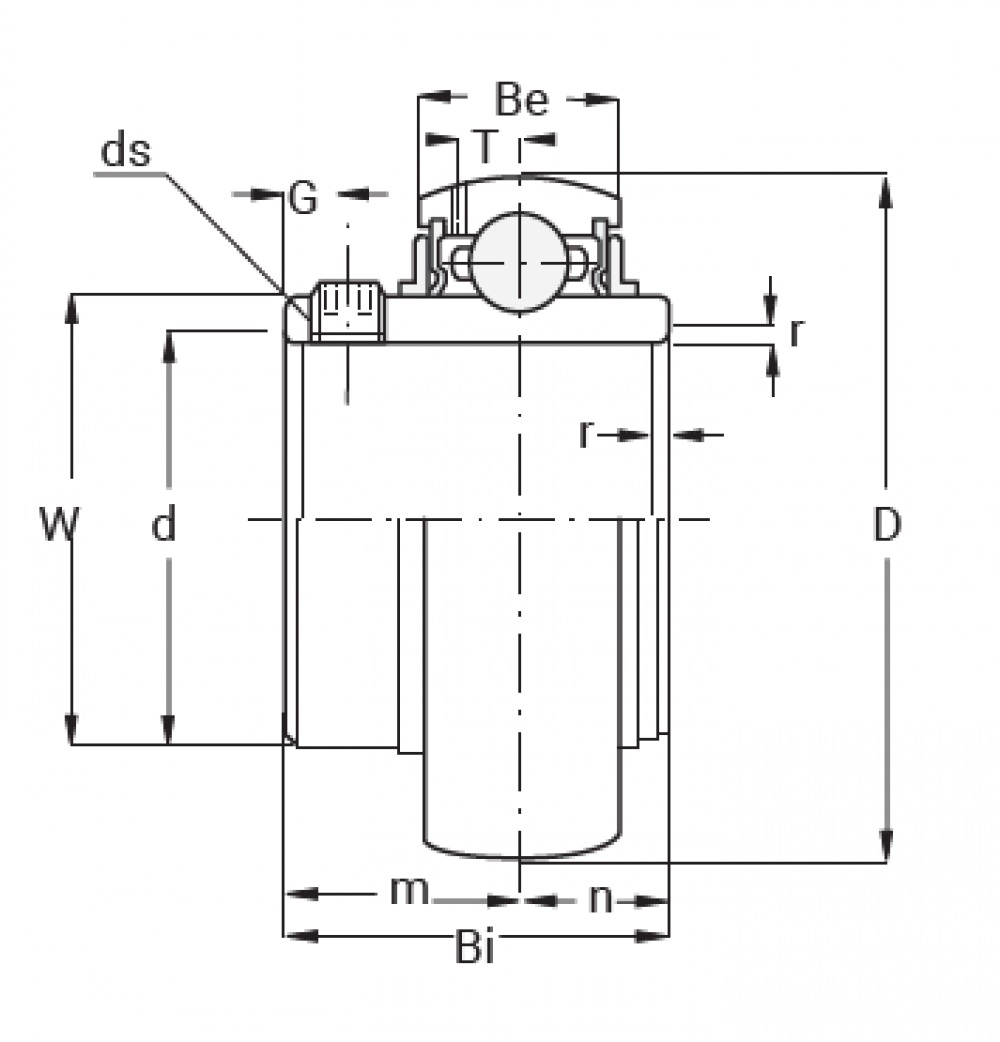

d [mm]	30
D [mm]	62
Bi [mm]	38,1
Be [mm]	19
r [mm]	1,5
n [mm]	15,9
m [mm]	22,2
G [mm]	5
ds [mm]	M6 x 0,75
T [mm]	5,1
W [mm]	40,5
load rating dynam. [N]	15000
load rating stat. [N]	10000
Weight [kg]	0,31

Download as PDF

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF207

UCF207-MTM

d [mm] - 35

a [mm] - 117

e [mm] - 92

i [mm] - 19

g [mm] - 16

l [mm] - 34

S [mm] - 14

Z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA204

UCPA204-MTM

d [mm] - 20

h [mm] - 30,2

a [mm] - 76

e [mm] - 52

b [mm] - 40

t [mm] - M10

r [mm] - 15

g [mm] - 11

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10x1,50

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP212

UCP212-MTM

d [mm] - 60

h [mm] - 69,8

a [mm] - 241

e [mm] - 184

b [mm] - 70

S1 [mm] - 20

S2 [mm] - 23

g [mm] - 25

W [mm] - 138

Bi [mm] - 65,1

n [mm] - 25,4

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC204

UC204-MTM

d [mm] - 20

D [mm] - 47

Bi [mm] - 31

Be [mm] - 17

r [mm] - 1,5

n [mm] - 12,7

m [mm] - 18,3

G [mm] - 4,5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 29

nośność dynam. [N] - 9880

nośność stat. [N] - 6180

Waga [kg] - 0,16

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCP208

UCP208-MTM

d [mm] - 40

h [mm] - 49,2

a [mm] - 184

e [mm] - 137

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 18

W [mm] - 100

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL210

UCFL210-MTM

d [mm] - 50

a [mm] - 197

e [mm] - 157

i [mm] - 22

g [mm] - 15

l [mm] - 40

S [mm] - 19

b [mm] - 115

z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
