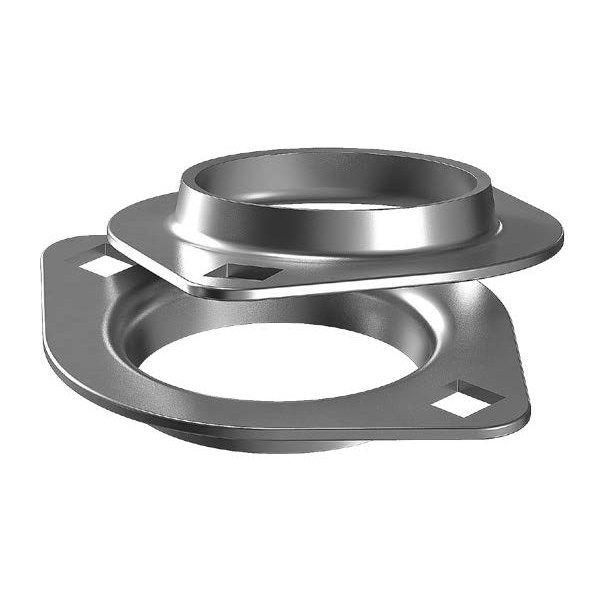

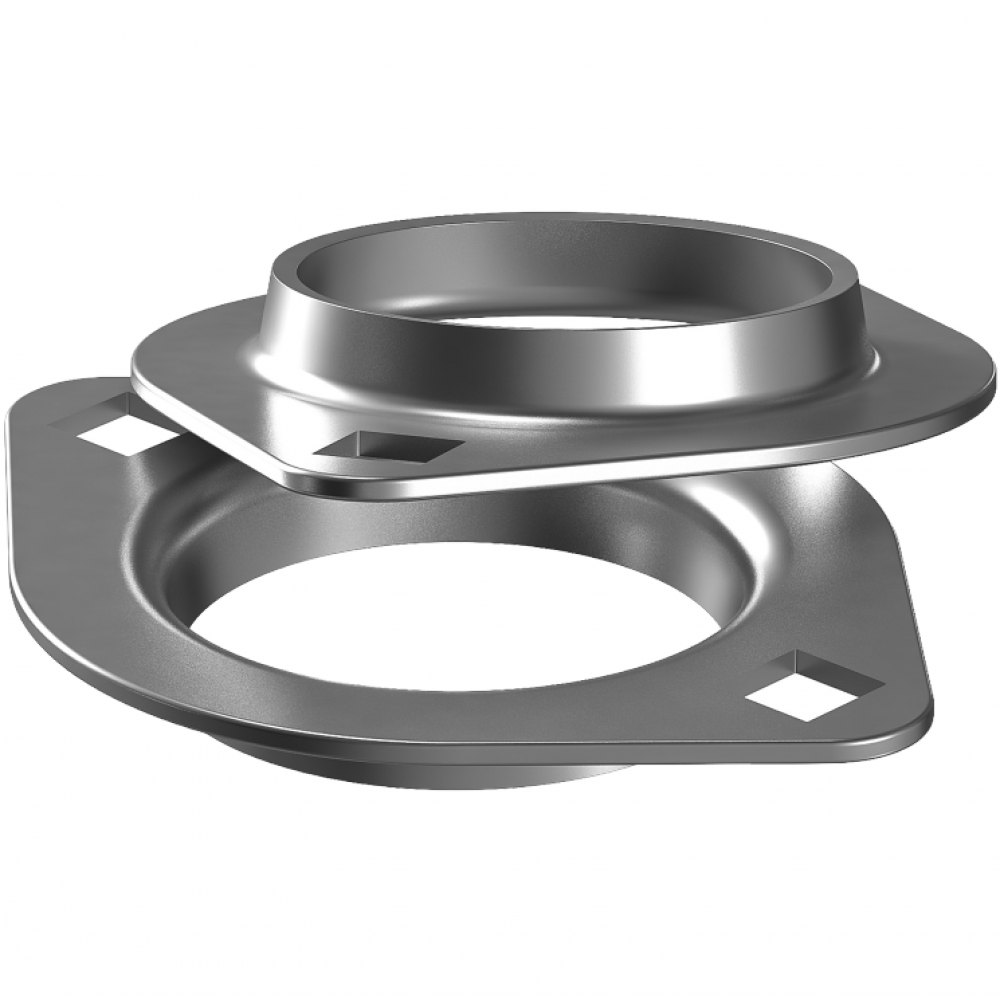

Pressed Housing Flange Unit PFL203

Name: Pressed Housing Flange Unit PFL203
SKU: PFL201-202-203-MTM

Availability: Available

product code: PFL201-202-203-MTM

product ean: 5907772127957

Product prices will become visible after signing in.

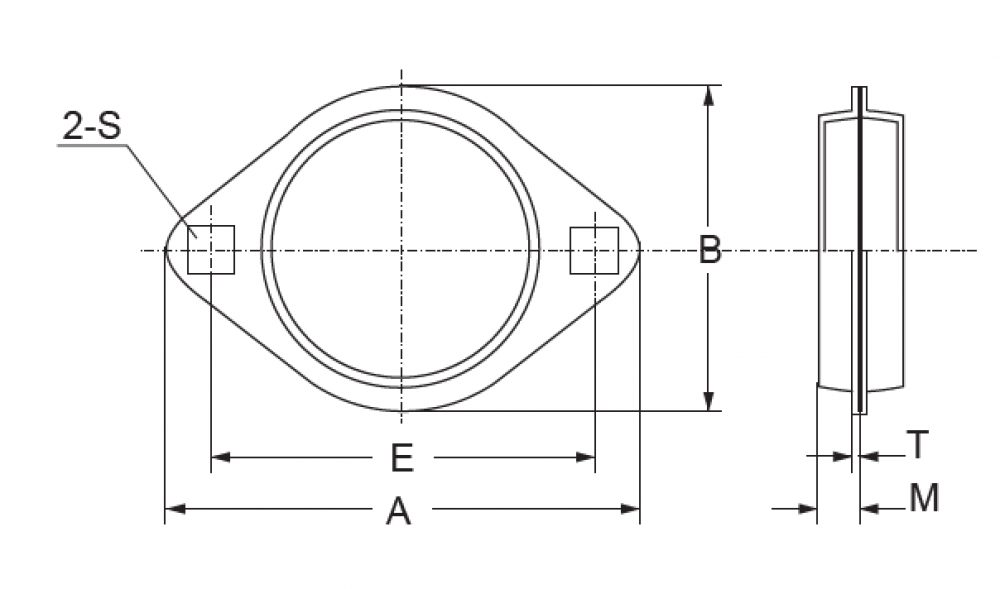

A [mm]	81
B [mm]	59
E [mm]	63,5
M [mm]	7
S [mm]	7,1
T [mm]	2
Bolt	M6

Download as PDF

Deep groove ball bearing 6004 ZZ

6004-ZZ-MTM

d [mm] - 20

D [mm] - 42

B [mm] - 12

load rating dynam. [N] - 9360

load rating stat. [N] - 5000

Weight [kg] - 0,069

Available

Product prices will become visible after signing in.

Thrust ball bearing 51105

51105-MTM

d [mm] - 25

D [mm] - 42

T [mm] - 11

load rating dynam. [N] - 15900

load rating stat. [N] - 29000

Weight [kg] - 0,056

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61903 2RS

61903 (6903)-2RS-MTM

d [mm] - 17

D [mm] - 30

B [mm] - 7

load rating dynam. [N] - 4360

load rating stat. [N] - 2320

Weight [kg] - 0,018

Available

Product prices will become visible after signing in.

Deep groove stainless ball bearing 61808 (6808) 2RSC3

61808 (6808)-2RSC3-MTM

d [mm] - 40

D [mm] - 52

B [mm] - 7

load rating dynam. [N] - 4940

load rating stat. [N] - 3450

Weight [kg] - 0,034

Available

Product prices will become visible after signing in.

Rod End SA05 T/K

SA05-T/K-MTM

D [mm] - 5

B [mm] - 8

M [mm] - 6

A [mm] - 18

F [mm] - 33

L [mm] - 42

O [mm] - 7,7

G [mm] - M5 x 0,80

GL [mm] - 20

Waga [kg] - 0,013

nośność dynam. [N] - 5700

nośność stat. [N] - 6000

On order

Product prices will become visible after signing in.

Deep groove ball bearing 61905 2RSC3

61905 (6905)-2RSC3-MTM

d [mm] - 25

D [mm] - 42

B [mm] - 9

load rating dynam. [N] - 6630

load rating stat. [N] - 4000

Weight [kg] - 0,045

Available

Product prices will become visible after signing in.

Pressed Housing Flange Unit PF203

PF201-202-203-MTM

A [mm] - 81

E [mm] - 63.5

M [mm] - 7

S [mm] - 7.1

T [mm] - 2

Bolt - M6

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61906 2RS

61906 (6906)-2RS-MTM

d [mm] - 30

D [mm] - 47

B [mm] - 9

nośność dynam. [N] - 7280

nośność stat. [N] - 4550

Waga [kg] - 0,051

On order

Product prices will become visible after signing in.

Deep groove ball bearing 61901 2RS

61901 (6901)-2RS-MTM

d [mm] - 12

D [mm] - 24

B [mm] - 6

load rating dynam. [N] - 2250

load rating stat. [N] - 980

Weight [kg] - 0,011

Available

Product prices will become visible after signing in.

Deep groove stainless ball bearing 61804 2RSSS

61804 (6804)-2RSSS-MTM

d [mm] - 20

D [mm] - 32

B [mm] - 7

load rating dynam. [N] - 2700

load rating stat. [N] - 1500

Weight [kg] - 0,018

Available

Product prices will become visible after signing in.

Rod End SA08 T/K

SA08-T/K-MTM

D [mm] - 8

B [mm] - 12

M [mm] - 9

A [mm] - 24

F [mm] - 42

L [mm] - 54

O [mm] - 10,4

G [mm] - M8 x 1,25

GL [mm] - 25

Weight [kg] - 0,038

load rating dynam. [N] - 11600

load rating stat. [N] - 12900

Available

Product prices will become visible after signing in.

Spherical plain bearing GE045 ES2RS

GE045-ES2RS-MTM

d [mm] - 45

D [mm] - 68

B [mm] - 32

C [mm] - 25

dk [mm] - 60

Weight [kg] - 0,421

load rating dynam. [N] - 127000

load rating stat. [N] - 637000

Available

Product prices will become visible after signing in.
