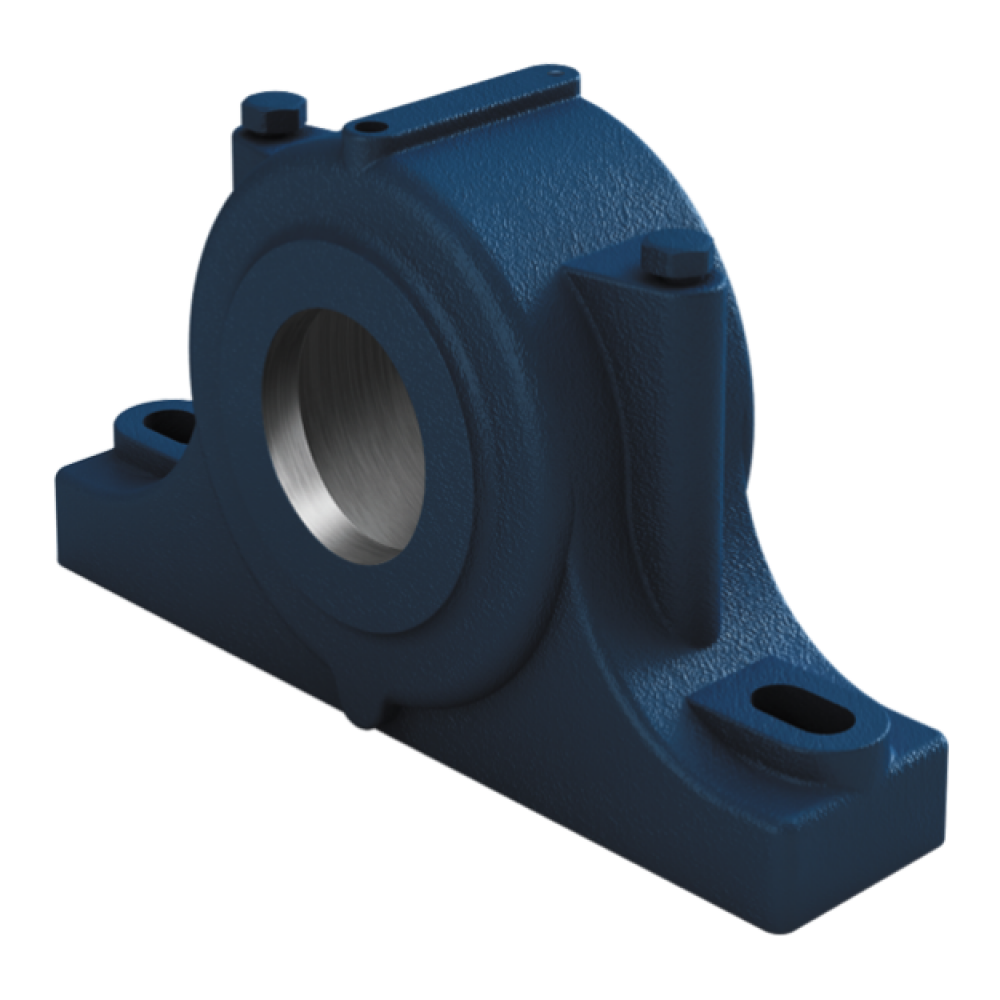

Split Unit SN515

Name: Split Unit SN515
SKU: SN515-MTM

Availability: Available

product code: SN515-MTM

product ean: 5907772137994

d [mm]	65
E [mm]	230
L [mm]	115
D [mm]	130
b [mm]	80
F [mm]	41
G [mm]	30
H [mm]	155
u [mm]	18
v [mm]	23
A [mm]	80
B [mm]	280
M [mm]	M12
S [mm]	M16
notes	details - see table - Files to download

Download as PDF

Lock nut KM08

KM08-MTM

d [mm] - 50

D [mm] - 58

B [mm] - 9

G [mm] - M40 x 1,50

m [mm] - 6

n [mm] - 2,5

Weight [kg] - 0,078

Washer model - MB08

Available

Product prices will become visible after signing in.

Spherical plain bearing GE035 ES2RS

GE035-ES2RS-MTM

d [mm] - 35

D [mm] - 55

B [mm] - 25

C [mm] - 20

dk [mm] - 47

Waga [kg] - 0,228

nośność dynam. [N] - 79000

nośność stat. [N] - 399000

Available

Product prices will become visible after signing in.

Linear Bearing SMA50 GUU

SMA50-GUU-MTM

h [mm] - 40

E [mm] - 51

W [mm] - 102

L [mm] - 90

F [mm] - 78

G [mm] - 62

T [mm] - 20

B [mm] - 80

C [mm] - 60

K [mm] - 11

S1 [mm] - M10 x 25

S2 [mm] - 8,7

Waga [kg] - 1,600

nośność dynam. [N] - 2160

nośność stat. [N] - 4020

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF205

UCF205-MTM

d [mm] - 25

a [mm] - 95

e [mm] - 70

i [mm] - 16

g [mm] - 14

l [mm] - 27

S [mm] - 12

Z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Adapter sleeve H210

H210-MTM

d1 [mm] - 45

d [mm] - 50

D [mm] - 70

B1 [mm] - 35

B2 [mm] - 12

G [mm] - M50 x 1,50

Weight [kg] - 0,240

Nut model - KM 10

Washer model - MB 10

Self-aligning ball bearing model - 1210 K

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 380-420-18

SIMMERING 380-420-18-MTM

wymiar wewnętrzny [mm] - 380

wymiar zewnętrzny [mm] - 420

wysokość [mm] - 18

Available

Product prices will become visible after signing in.

Linear Bearing SMA20 GUU

SMA20-GUU-MTM

h [mm] - 21

E [mm] - 27

W [mm] - 54

L [mm] - 50

F [mm] - 41

G [mm] - 35

T [mm] - 11

B [mm] - 40

C [mm] - 40

K [mm] - 7

S1 [mm] - M6 x 12

S2 [mm] - 5,2

Weight [kg] - 0,255

load rating dynam. [N] - 882

load rating stat. [N] - 1370

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFC216

UCFC216-MTM

d [mm] - 80

a [mm] - 240

p [mm] - 200

e [mm] - 141,4

i [mm] - 18

S [mm] - 23

j [mm] - 16

k [mm] - 18

g [mm] - 42

f [mm] - 170

z [mm] - 67,3

Bi [mm] - 82,6

n [mm] - 33,3

Śruba - M20

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Ball Bearing 6302 2RS

6302-2RS-MTM

d [mm] - 15

D [mm] - 42

B [mm] - 13

load rating dynam. [N] - 11400

load rating stat. [N] - 5400

Weight [kg] - 0,082

Available

Product prices will become visible after signing in.

Ball Bearing 6203 2RS

6203-2RS-MTM

d [mm] - 17

D [mm] - 40

B [mm] - 12

load rating dynam. [N] - 9560

load rating stat. [N] - 4750

Weight [kg] - 0,065

Available

Product prices will become visible after signing in.

Ball Bearing 6200 2RSSS

6200-2RSSS-MTM

d [mm] - 10

D [mm] - 30

B [mm] - 9

nośność dynam. [N] - 5070

nośność stat. [N] - 2360

Waga [kg] - 0,032

Available

Product prices will become visible after signing in.

Adapter sleeve H315

H315-MTM

d1 [mm] - 65

d [mm] - 75

D [mm] - 98

B1 [mm] - 55

B2 [mm] - 15

G [mm] - M75 x 2,00

Waga [kg] - 0,780

Model nakrętki - KM 15

Model podkładki - MB 15

Model łożyska kulkowo-wahliwego - 1315K / 2215K

Model łożyska baryłkowego - 21315K / 22215K

Available

Product prices will become visible after signing in.
