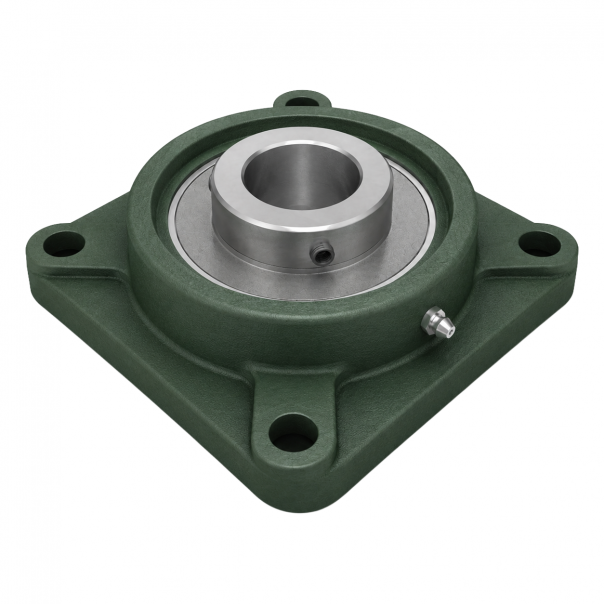

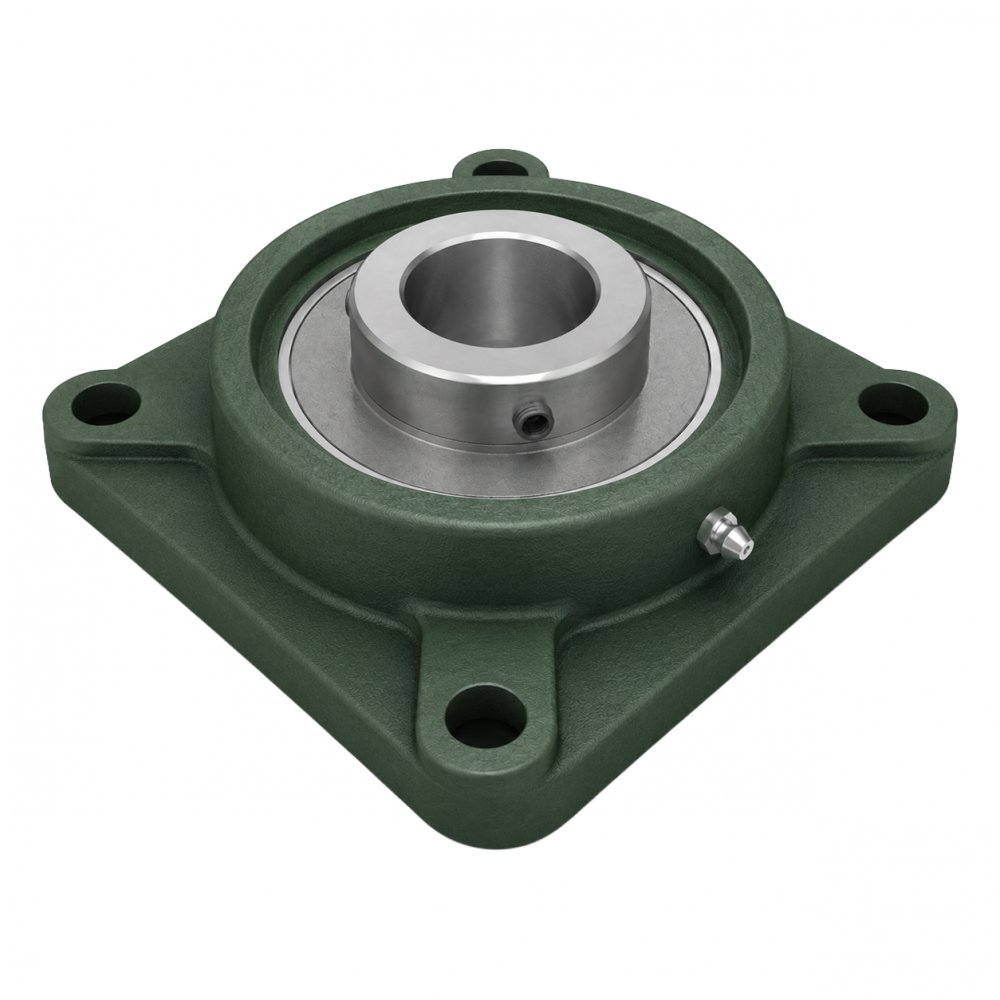

Pillow Block Bearing UCF205

Name: Pillow Block Bearing UCF205
SKU: UCF205-MTM

Availability: Available

product code: UCF205-MTM

product ean: 5907772141427

d [mm]	25
a [mm]	95
e [mm]	70
i [mm]	16
g [mm]	14
l [mm]	27
S [mm]	12
Z [mm]	35,8
Bi [mm]	34,1
n [mm]	14,3
Bolt	M10
Note:	Version TS (with triple sealing) available on request

Download as PDF
