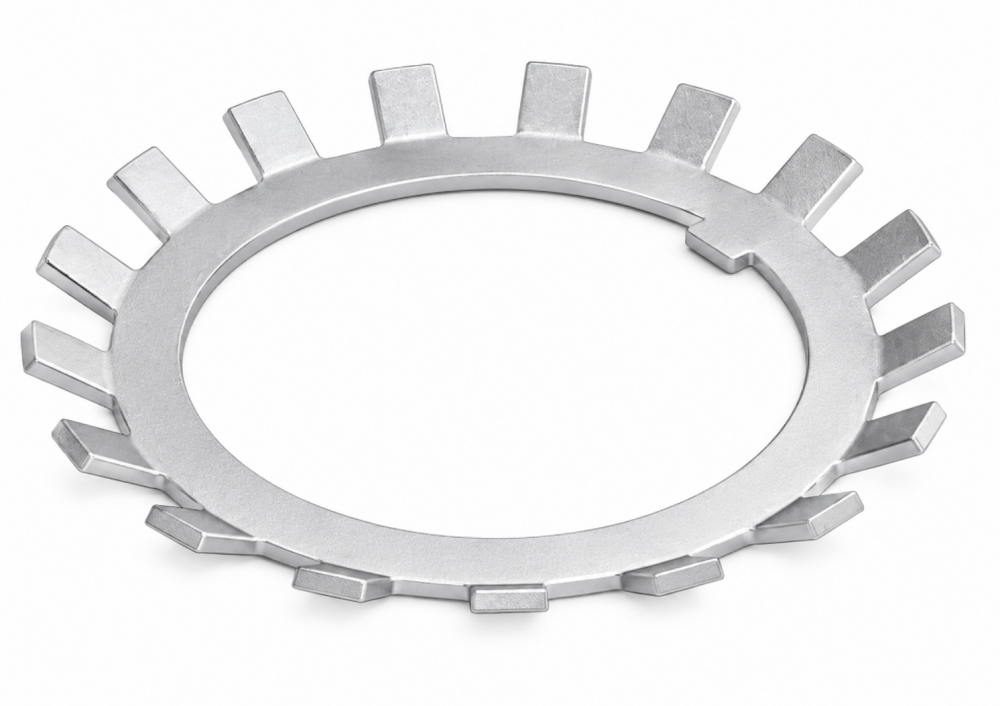

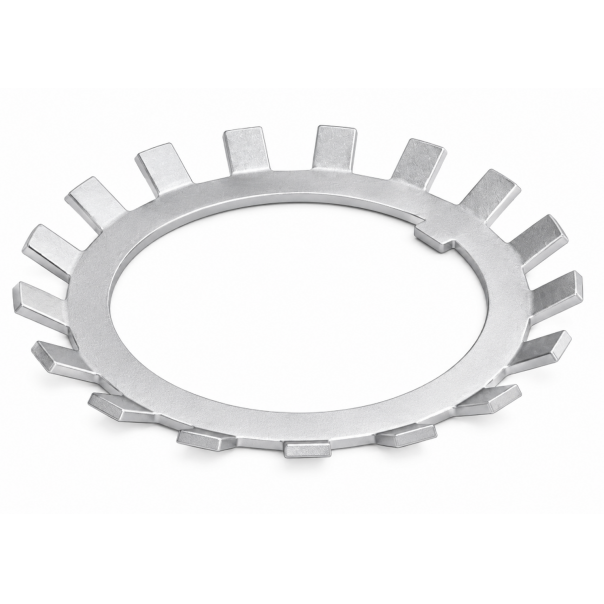

Lock washer MB10

Name: Lock washer MB10
SKU: MB10-MTM

Availability: Available

product code: MB10-MTM

product ean: 5907772125120

d [mm]	50
D1 [mm]	61
D [mm]	74
S [mm]	1,25
E [mm]	6
F [mm]	47,5
B [mm]	6
Waga [kg]	0,01600

Download as PDF
