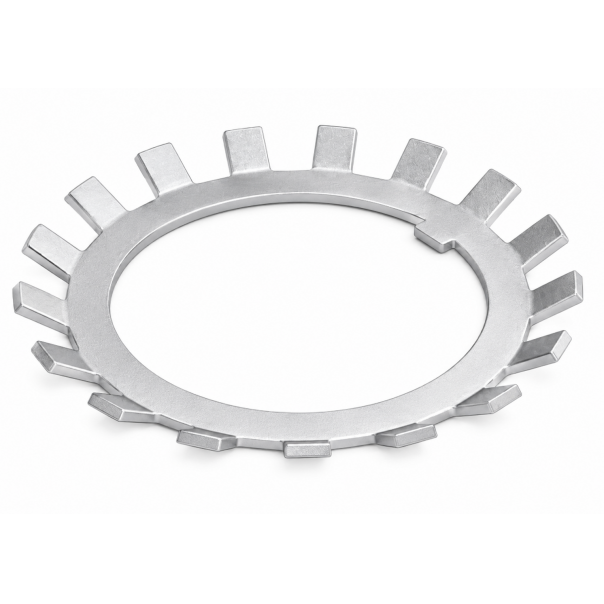

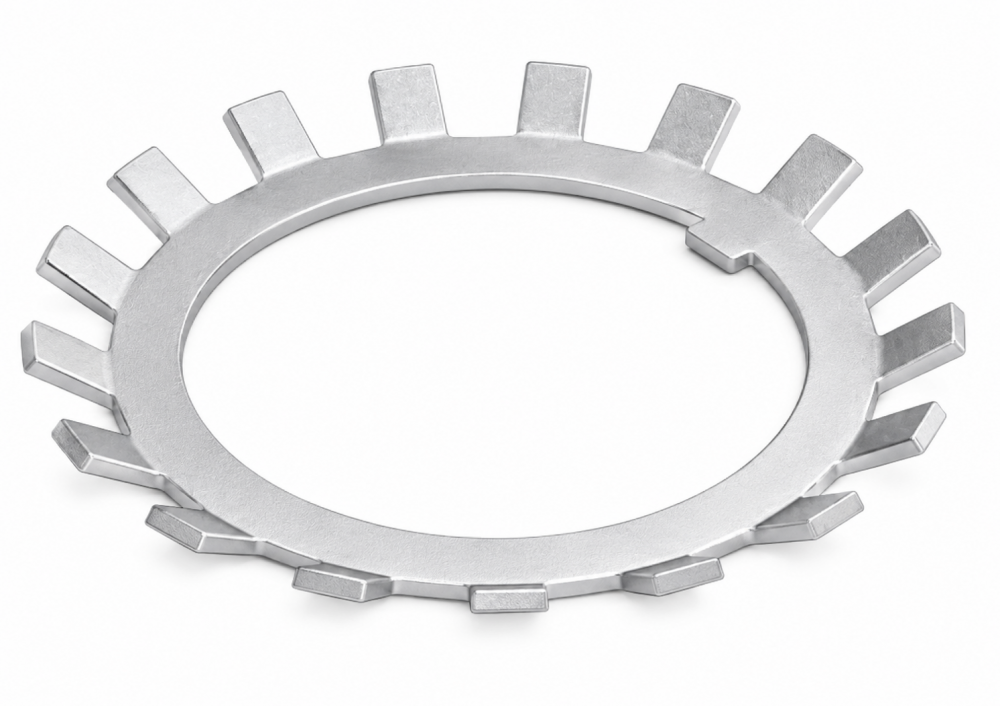

Lock washer MB04

Name: Lock washer MB04
SKU: MB04-MTM

Availability: Available

product code: MB04-MTM

product ean: 5907772125052

d [mm]	20
D1 [mm]	26
D [mm]	36
S [mm]	1
E [mm]	4
F [mm]	18,5
B [mm]	4
Weight [kg]	0,00350

Download as PDF

Lock nut KM04

KM04-MTM

d [mm] - 26

D [mm] - 32

B [mm] - 6

G [mm] - M20 x 1,00

m [mm] - 4

n [mm] - 2

Waga [kg] - 0,020

Model podkładki - MB04

Available

Product prices will become visible after signing in.

Lock washer MB08

MB08-MTM

d [mm] - 40

D1 [mm] - 50

D [mm] - 62

S [mm] - 1,25

E [mm] - 6

F [mm] - 37,5

B [mm] - 6

Weight [kg] - 0,01230

Available

Product prices will become visible after signing in.

Lock washer MB06

MB06-MTM

d [mm] - 30

D1 [mm] - 38

D [mm] - 49

S [mm] - 1,25

E [mm] - 5

F [mm] - 27,5

B [mm] - 5

Weight [kg] - 0,00780

Available

Product prices will become visible after signing in.

Lock washer MB07

MB07-MTM

d [mm] - 35

D1 [mm] - 44

D [mm] - 57

S [mm] - 1,25

E [mm] - 6

F [mm] - 32,5

B [mm] - 5

Weight [kg] - 0,01040

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Lock nut KM06

KM06-MTM

d [mm] - 38

D [mm] - 45

B [mm] - 7

G [mm] - M30 x 1,50

m [mm] - 5

n [mm] - 2

Weight [kg] - 0,038

Washer model - MB06

Available

Product prices will become visible after signing in.

Lock nut KM12

KM12-MTM

d [mm] - 73

D [mm] - 80

B [mm] - 11

G [mm] - M60 x 2,00

m [mm] - 7

n [mm] - 3

Weight [kg] - 0,160

Washer model - MB12

Available

Product prices will become visible after signing in.

Lock washer MB12

MB12-MTM

d [mm] - 60

D1 [mm] - 73

D [mm] - 86

S [mm] - 1,5

E [mm] - 8

F [mm] - 57,5

B [mm] - 7

Waga [kg] - 0,02530

Available

Product prices will become visible after signing in.

Insert ball bearing UC209

UC209-MTM

d [mm] - 45

D [mm] - 85

Bi [mm] - 49,2

Be [mm] - 22

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,5

W [mm] - 57,3

load rating dynam. [N] - 24500

load rating stat. [N] - 17500

Weight [kg] - 0,67

Available

Product prices will become visible after signing in.

Small ball bearing 608 ZZ

608-ZZ-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

nośność dynam. [N] - 3250

nośność stat. [N] - 1370

Waga [kg] - 0,01210

Available

Product prices will become visible after signing in.

Retaining ring SEGW47(100pcs)

SEGW47(100szt)-MTM

d1 [mm] - 47

d2 [mm] - 49,5

d3 [mm] - 50,5

d5 min [mm] - 2,5

amax [mm] - 6,4

~b [mm] - 4,4

s +/- 4% [mm] - 1,7

m H13 [mm] - 1,85

n min [mm] - 3,8

On order

Product prices will become visible after signing in.

Split Unit SN508

SN508-MTM

d [mm] - 35

E [mm] - 170

L [mm] - 85

D [mm] - 80

b [mm] - 60

F [mm] - 33

G [mm] - 25

H [mm] - 110

u [mm] - 15

v [mm] - 20

A [mm] - 60

B [mm] - 205

M [mm] - M10

S [mm] - M12

uwaga - szczegółowe informacje - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.
