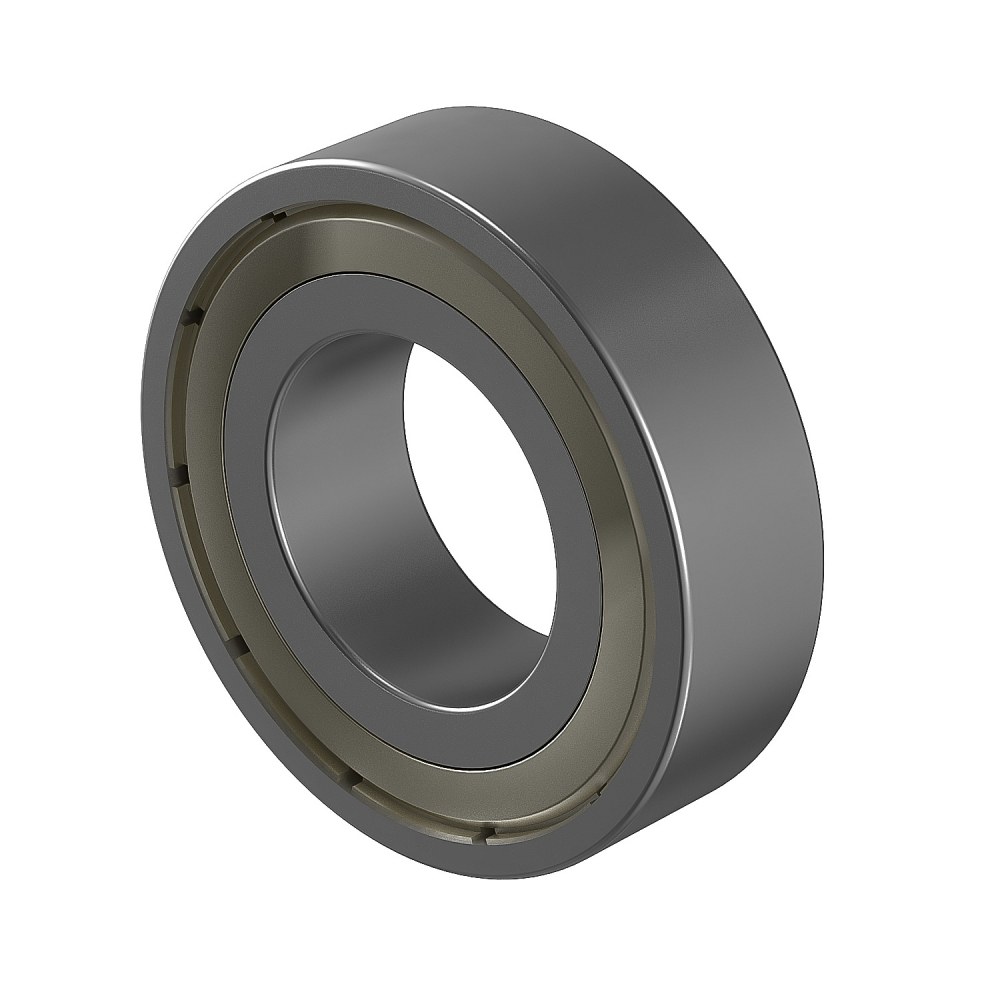

Deep groove ball bearing 6005 ZZ

Name: Deep groove ball bearing 6005 ZZ
SKU: 6005-ZZ-MTM

Availability: Available

product code: 6005-ZZ-MTM

product ean: 5907772109328

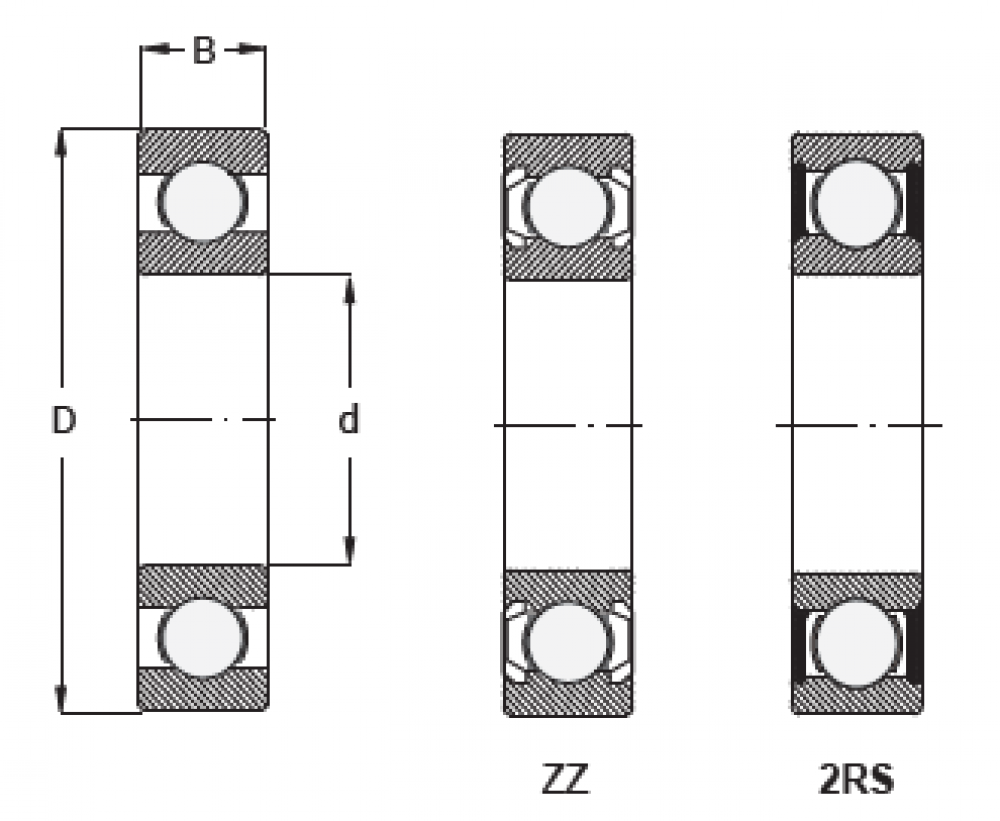

d [mm]	25
D [mm]	47
B [mm]	12
nośność dynam. [N]	11200
nośność stat. [N]	6550
Waga [kg]	0,080

Download as PDF

Pillow Block Bearing UCP210

UCP210-MTM

d [mm] - 50

h [mm] - 57,2

a [mm] - 206

e [mm] - 159

b [mm] - 60

S1 [mm] - 20

S2 [mm] - 23

g [mm] - 21

W [mm] - 113

Bi [mm] - 51,6

n [mm] - 19

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP207

UCP207-MTM

d [mm] - 35

h [mm] - 47,6

a [mm] - 164

e [mm] - 127

b [mm] - 48

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 18

W [mm] - 93

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Tapered Roller Bearing 32206

32206-MTM

d [mm] - 30

D [mm] - 62

T [mm] - 21,25

Waga [kg] - 0,280

nośność dynam. [N] - 50100

nośność stat.[N] - 57000

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6004 ZZ

6004-ZZ-MTM

d [mm] - 20

D [mm] - 42

B [mm] - 12

load rating dynam. [N] - 9360

load rating stat. [N] - 5000

Weight [kg] - 0,069

Available

Product prices will become visible after signing in.

Tapered Roller Bearing 30206

30206-MTM

d [mm] - 30

D [mm] - 62

T [mm] - 17,25

Weight [kg] - 0,230

load rating dynam. [N] - 40200

nośność stat.[N] - 44000

Available

Product prices will become visible after signing in.

Thrust ball bearing 51102

51102-MTM

d [mm] - 15

D [mm] - 28

T [mm] - 9

load rating dynam. [N] - 10600

load rating stat. [N] - 16600

Weight [kg] - 0,023

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6009 2RS

6009-2RS-MTM

d [mm] - 45

D [mm] - 75

B [mm] - 16

nośność dynam. [N] - 20800

nośność stat. [N] - 14600

Waga [kg] - 0,245

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.

Chain V12B-1

V12B-1-MTM

ISO DIN - 12B-1

Pitch P [inch] - 3/4"

Pitch P [mm] - 19.05

⌀ Roller d1 max [mm] - 12.07

Inner working dimension b1 min [mm] - 1.68

⌀ pin d2 max [mm] - 5.72

Pin lenght L max [mm] - 22.7

Connecting pin lenght Lc max [inch] - 27.3

Inner plate depth H max [mm] - 16.13

Breaking load rating Q min [KN] - 28.9

Waga [kg/m] - 1.15

Available

Product prices will become visible after signing in.

Insert ball bearing stainless SUC208

SUC208-MTM

d [mm] - 40

D [mm] - 80

Bi [mm] - 49,2

Be [mm] - 21

r [mm] - 2

n [mm] - 19

m [mm] - 30,2

G [mm] - 8

ds [mm] - M8 x 1,00

T [mm] - 6,2

W [mm] - 53

nośność dynam. [N] - 5790

nośność stat. [N] - 4045

Waga [kg] - 0,61

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFC204

UCFC204-MTM

d [mm] - 20

a [mm] - 100

p [mm] - 78

e [mm] - 55,1

i [mm] - 10

S [mm] - 12

j [mm] - 5

k [mm] - 7

g [mm] - 20,5

f [mm] - 62

z [mm] - 28,3

Bi [mm] - 31

n [mm] - 12,7

Śruba - M10

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.
