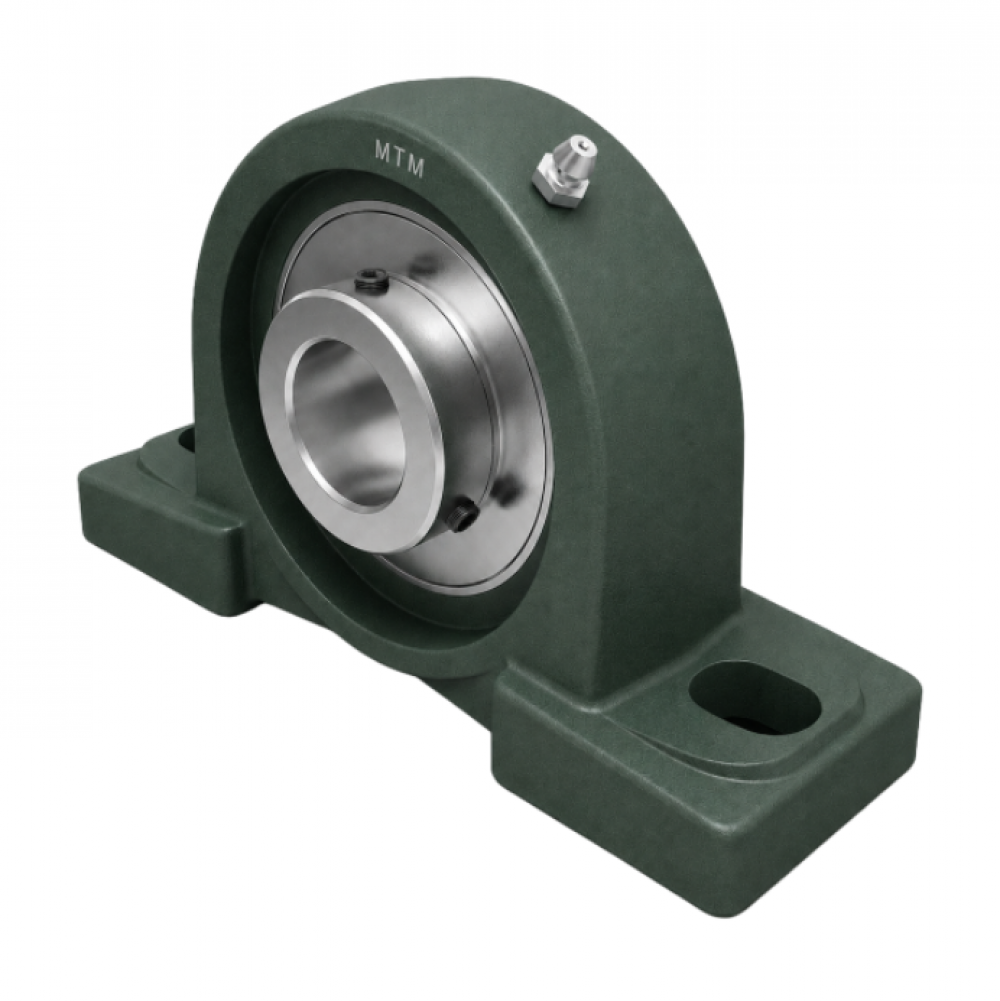

Pillow Block Bearing UCP202

Availability: Available

product code: UCP202-MTM

product ean: 5907772142301

d [mm]	15
h [mm]	30,2
a [mm]	127
e [mm]	95
b [mm]	38
S1 [mm]	13
S2 [mm]	19
g [mm]	14
W [mm]	62
Bi [mm]	31
n [mm]	12,7
Bolt	M10
Note:	Version TS (with triple sealing) available on request

Download as PDF

Product description

Zespół łożyskowy typ UCP202

Wymiary zespołu łożyskowego UCP202

d: 15 mm

h: 30,2 mm

a: 127 mm

e: 95 mm

b: 38 mm

S1: 13 mm

S2: 19 mm

g: 14 mm

W: 62 mm

Bi: 31 mm

n: 12,7 mm
