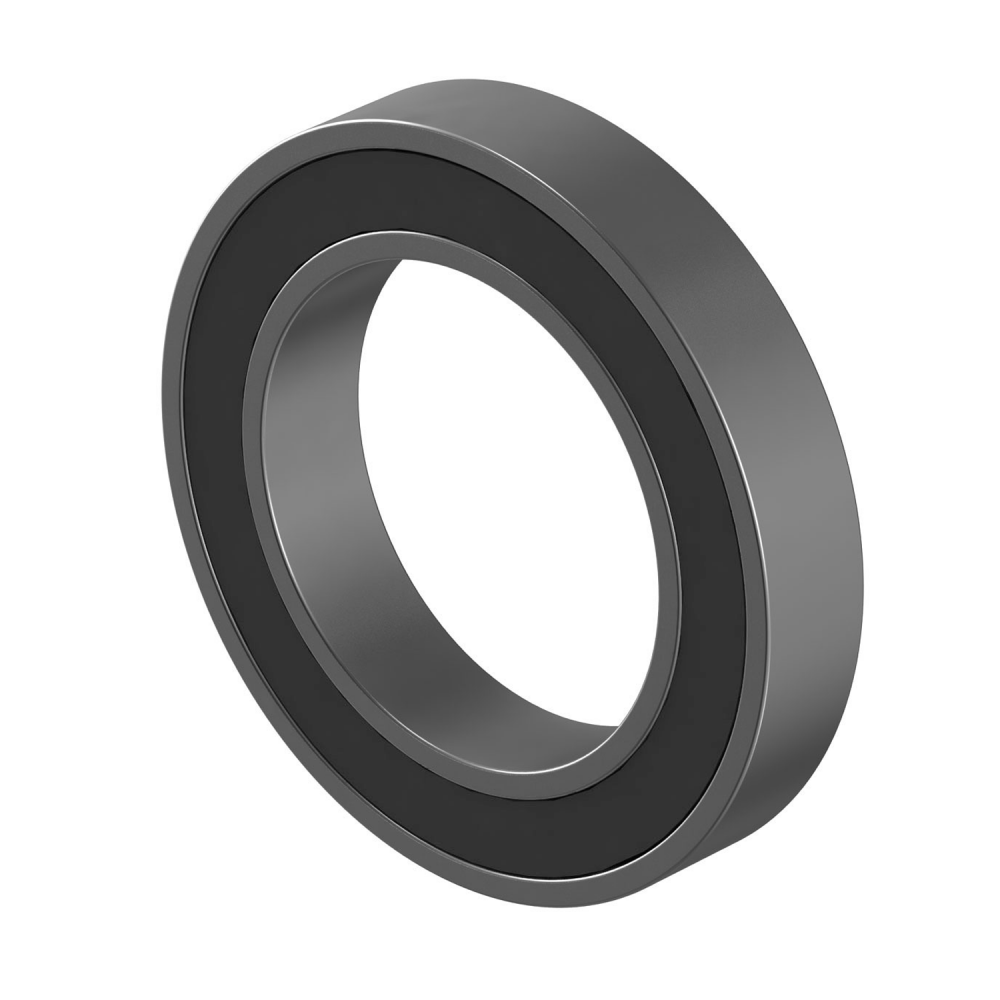

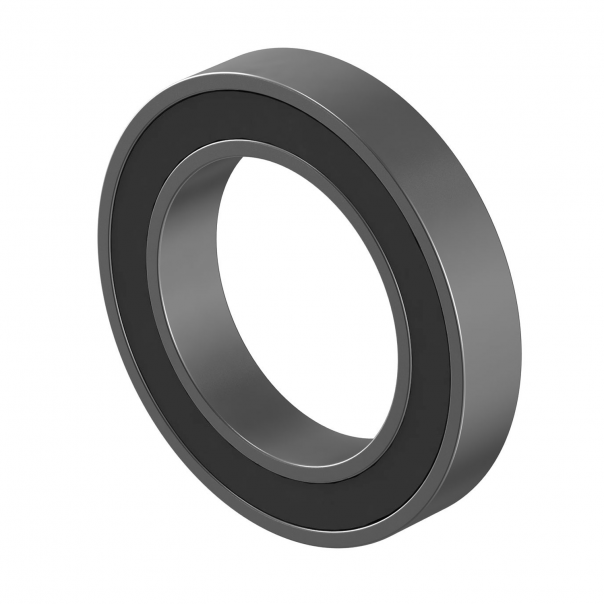

Deep groove ball bearing 61902 2RS

Name: Deep groove ball bearing 61902 2RS
SKU: 61902 (6902)-2RS-MTM

Availability: Available

product code: 61902 (6902)-2RS-MTM

product ean: 5907772112588

Product prices will become visible after signing in.

d [mm]	15
D [mm]	28
B [mm]	7
nośność dynam. [N]	4030
nośność stat. [N]	2040
Waga [kg]	0,016

Download as PDF

Deep groove ball bearing 61804 (6804) 2RS

61804 (6804)-2RS-MTM

d [mm] - 20

D [mm] - 32

B [mm] - 7

load rating dynam. [N] - 2700

load rating stat. [N] - 1500

Weight [kg] - 0,018

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCP205

UCP205-MTM

d [mm] - 25

h [mm] - 36,5

a [mm] - 140

e [mm] - 105

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 15

W [mm] - 71

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61900 2RS

61900 (6900)-2RS-MTM

d [mm] - 10

D [mm] - 22

B [mm] - 6

nośność dynam. [N] - 1950

nośność stat. [N] - 750

Waga [kg] - 0,01

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.

Pressed Housing Flange Unit

PF205-MTM

A [mm] - 95

E [mm] - 76

M [mm] - 9

S [mm] - 9

T [mm] - 2

Bolt - M8

Available

Product prices will become visible after signing in.

Ball Bearing 6207 2RS

6207-2RS-MTM

d [mm] - 35

D [mm] - 72

B [mm] - 17

load rating dynam. [N] - 25500

load rating stat. [N] - 15300

Weight [kg] - 0,288

Available

Product prices will become visible after signing in.

Pressed Housing Flange Unit PFL204

PFL204-MTM

A [mm] - 90

B [mm] - 67

E [mm] - 71,5

M [mm] - 8

S [mm] - 9

T [mm] - 2

Śruba - M8

On order

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Spherical plain bearing GE030 ES2RS

GE030-ES2RS-MTM

d [mm] - 30

D [mm] - 47

B [mm] - 22

C [mm] - 18

dk [mm] - 40.7

Waga [kg] - 0.149

nośność dynam. [N] - 62000

nośność stat. [N] - 310000

On order

Product prices will become visible after signing in.

Deep groove ball bearing 6001 2RS

6001-2RS-MTM

d [mm] - 12

D [mm] - 28

B [mm] - 8

load rating dynam. [N] - 5070

load rating stat. [N] - 2360

Weight [kg] - 0,022

Available

Product prices will become visible after signing in.

Rod End SA08 T/K

SA08-T/K-MTM

D [mm] - 8

B [mm] - 12

M [mm] - 9

A [mm] - 24

F [mm] - 42

L [mm] - 54

O [mm] - 10,4

G [mm] - M8 x 1,25

GL [mm] - 25

Waga [kg] - 0,038

nośność dynam. [N] - 11600

nośność stat. [N] - 12900

Available

Product prices will become visible after signing in.
