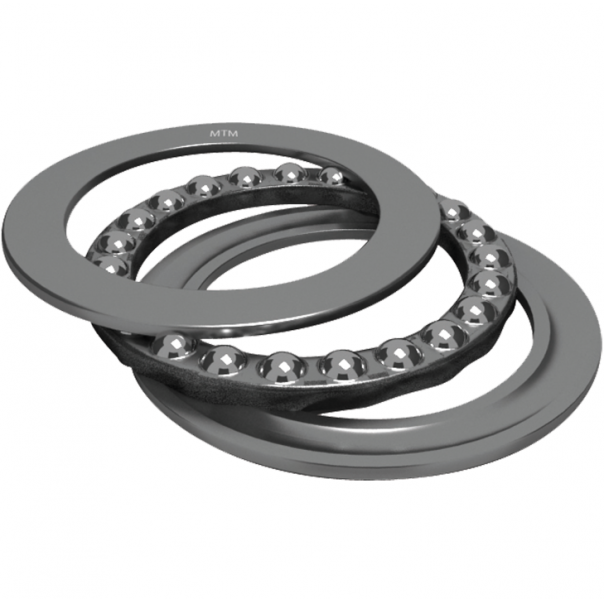

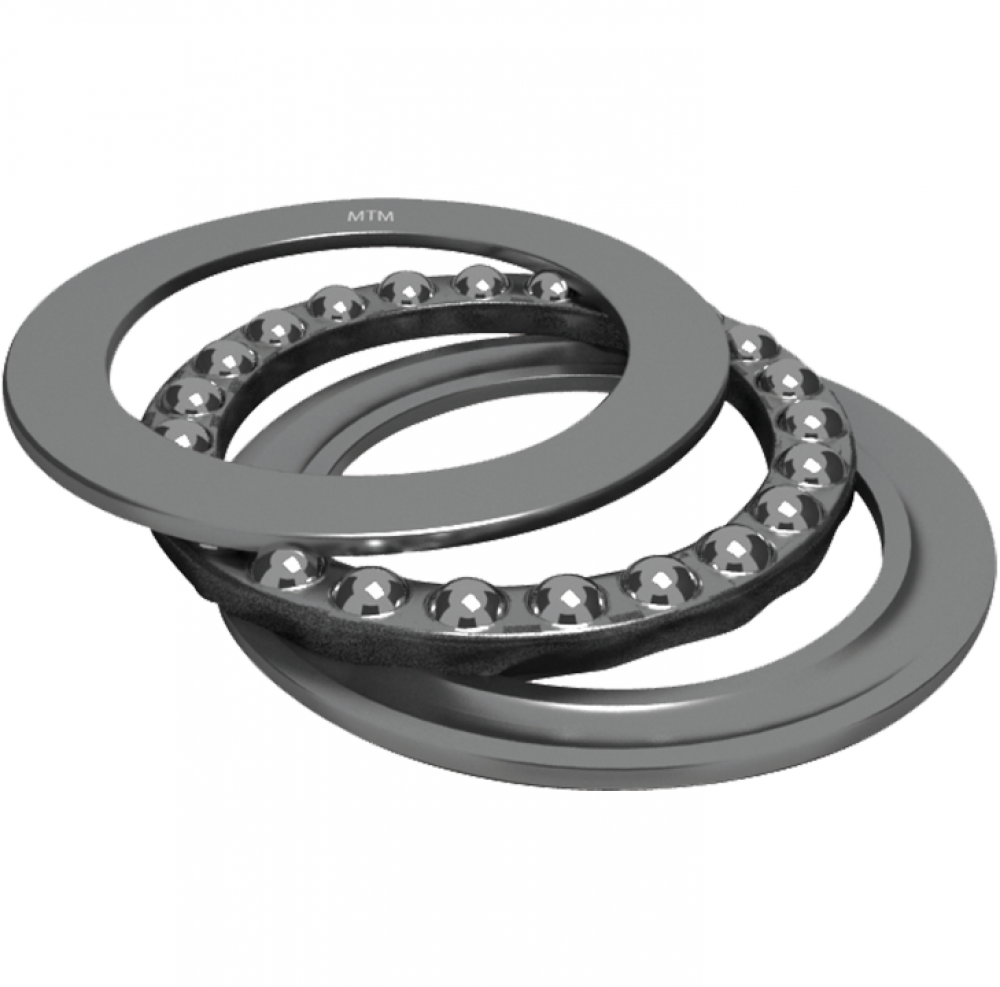

Thrust ball bearing 51132

Name: Thrust ball bearing 51132
SKU: 51132-MTM

Availability: Available

product code: 51132-MTM

product ean: 5907772108222

d [mm]	160
D [mm]	200
T [mm]	31
nośność dynam. [N]	112000
nośność stat. [N]	425000
Waga [kg]	2,350

Download as PDF
