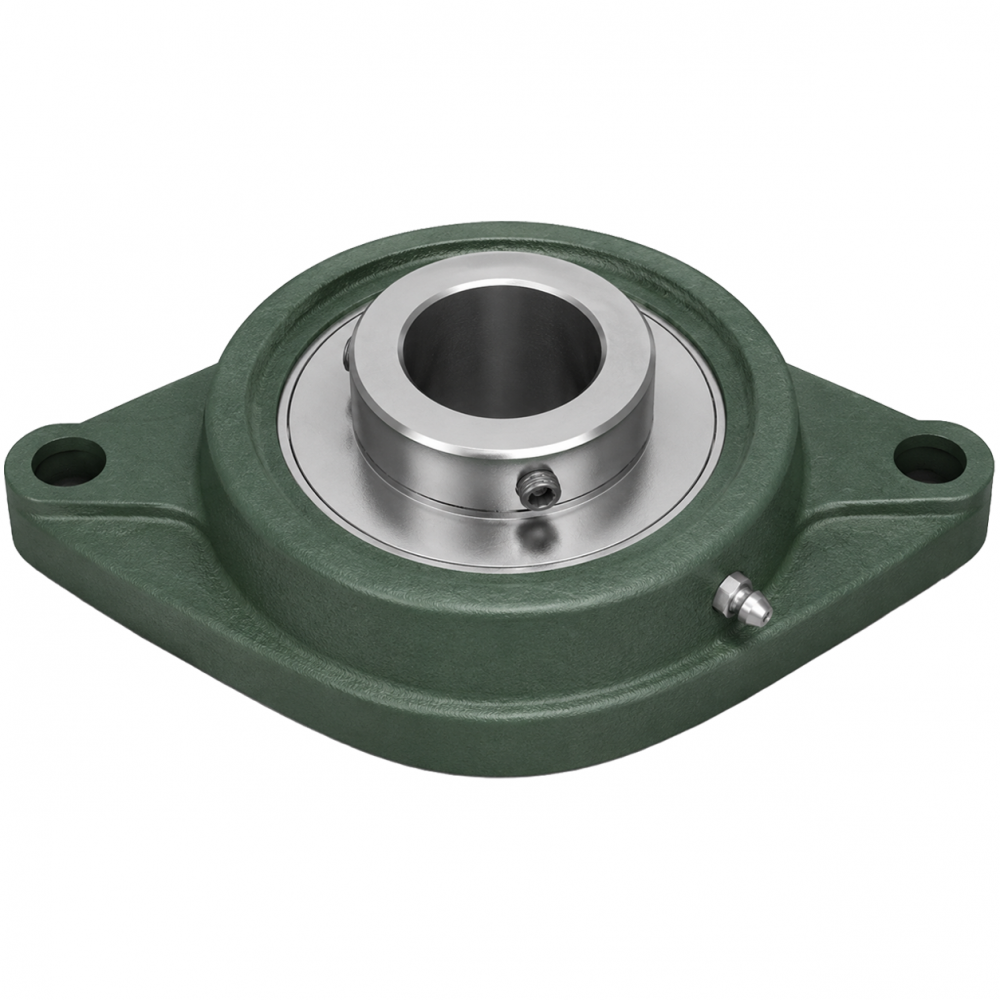

Pillow Block Bearing UCFL206

Name: Pillow Block Bearing UCFL206
SKU: UCFL206-MTM

Availability: Available

product code: UCFL206-MTM

product ean: 5907772142059

d [mm]	30
a [mm]	148
e [mm]	117
i [mm]	18
g [mm]	13
l [mm]	31
S [mm]	16
b [mm]	80
z [mm]	40,2
Bi [mm]	38,1
n [mm]	15,9
Bolt	M14
Note:	Version TS (with triple sealing) available on request

Download as PDF
