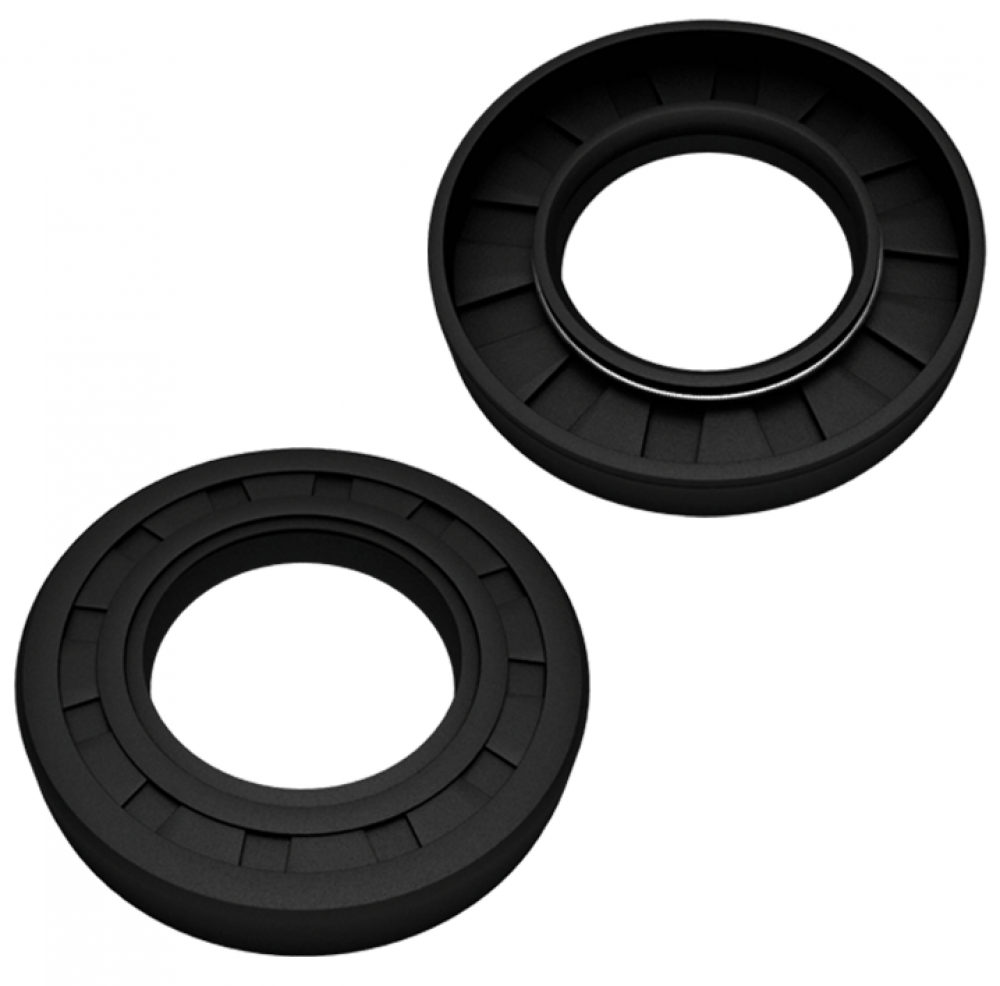

Oil Seal SIMMERING 240-280-15

Name: Oil Seal SIMMERING 240-280-15
SKU: SIMMERING 240-280-15-MTM

Availability: Available

product code: SIMMERING 240-280-15-MTM

product ean: 5907772146347

internal dimension [mm]	240
external dimension [mm]	280
height [mm]	15

Download as PDF

Oil Seal SIMMERING 210-250-15

SIMMERING 210-250-15-MTM

internal dimension [mm] - 210

external dimension [mm] - 250

height [mm] - 15

Available

Product prices will become visible after signing in.

Split Unit SN507

SN507-MTM

d [mm] - 30

E [mm] - 150

L [mm] - 82

D [mm] - 72

b [mm] - 52

F [mm] - 33

G [mm] - 22

H [mm] - 95

u [mm] - 15

v [mm] - 20

A [mm] - 50

B [mm] - 185

M [mm] - M10

S [mm] - M12

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 240-270-15

SIMMERING 240-270-15-MTM

internal dimension [mm] - 240

external dimension [mm] - 270

height [mm] - 15

Available

Product prices will become visible after signing in.

Split Unit SN517

SN517-MTM

d [mm] - 75

E [mm] - 260

L [mm] - 125

D [mm] - 150

b [mm] - 90

F [mm] - 46

G [mm] - 32

H [mm] - 185

u [mm] - 22

v [mm] - 27

A [mm] - 95

B [mm] - 320

M [mm] - M16

S [mm] - M20

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Adapter sleeve H311

H311-MTM

d1 [mm] - 50

d [mm] - 55

D [mm] - 75

B1 [mm] - 45

B2 [mm] - 12

G [mm] - M55 x 2,00

Weight [kg] - 0,320

Nut model - KM 11

Washer model - MB 11

Self-aligning ball bearing model - 1311K / 2211K

Spherical bearing model - 21311K / 22211K

Available

Product prices will become visible after signing in.

Adapter sleeve H320

H320-MTM

d1 [mm] - 90

d [mm] - 100

D [mm] - 130

B1 [mm] - 71

B2 [mm] - 20

G [mm] - M100 x 2,00

Weight [kg] - 1,600

Nut model - KM 20

Washer model - MB 20

Self-aligning ball bearing model - 1320K / 2220K

Spherical bearing model - 21320K / 22220K

Available

Product prices will become visible after signing in.

Lock nut KM19

KM19-MTM

d [mm] - 113

D [mm] - 125

B [mm] - 17

G [mm] - M95 x 2,00

m [mm] - 10

n [mm] - 4

Weight [kg] - 0,580

Washer model - MB19

Available

Product prices will become visible after signing in.

Split Unit SN510

SN510-MTM

d [mm] - 45

E [mm] - 170

L [mm] - 90

D [mm] - 90

b [mm] - 60

F [mm] - 33

G [mm] - 25

H [mm] - 115

u [mm] - 15

v [mm] - 20

A [mm] - 60

B [mm] - 205

M [mm] - M10

S [mm] - M12

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Split Unit SN509

SN509-MTM

d [mm] - 40

E [mm] - 170

L [mm] - 85

D [mm] - 85

b [mm] - 60

F [mm] - 31

G [mm] - 25

H [mm] - 112

u [mm] - 15

v [mm] - 20

A [mm] - 60

B [mm] - 205

M [mm] - M10

S [mm] - M12

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Split Unit SN526

SN526-MTM

d [mm] - 115

E [mm] - 380

L [mm] - 190

D [mm] - 230

b [mm] - 130

F [mm] - 90

G [mm] - 50

H [mm] - 290

u [mm] - 28

v [mm] - 35

A [mm] - 150

B [mm] - 445

M [mm] - M24

S [mm] - M24

notes - Included: unit, seal, location rings.

Available

Product prices will become visible after signing in.

Adapter sleeve H309

H309-MTM

d1 [mm] - 40

d [mm] - 45

D [mm] - 65

B1 [mm] - 39

B2 [mm] - 11

G [mm] - M45 x 1,50

Weight [kg] - 0,230

Nut model - KM 09

Washer model - MB 09

Self-aligning ball bearing model - 1309K / 2209K

Spherical bearing model - 21309K / 22209K

Available

Product prices will become visible after signing in.

Linear Bearings LM12 UU

LM12-UU-MTM

d [mm] - 12

D [mm] - 21

B [mm] - 30

W [mm] - 23

B1 [mm] - 1,3

D1 [mm] - 20

Weight [kg] - 0,0315

load rating dynam. [N] - 590

load rating stat. [N] - 410

Available

Product prices will become visible after signing in.
