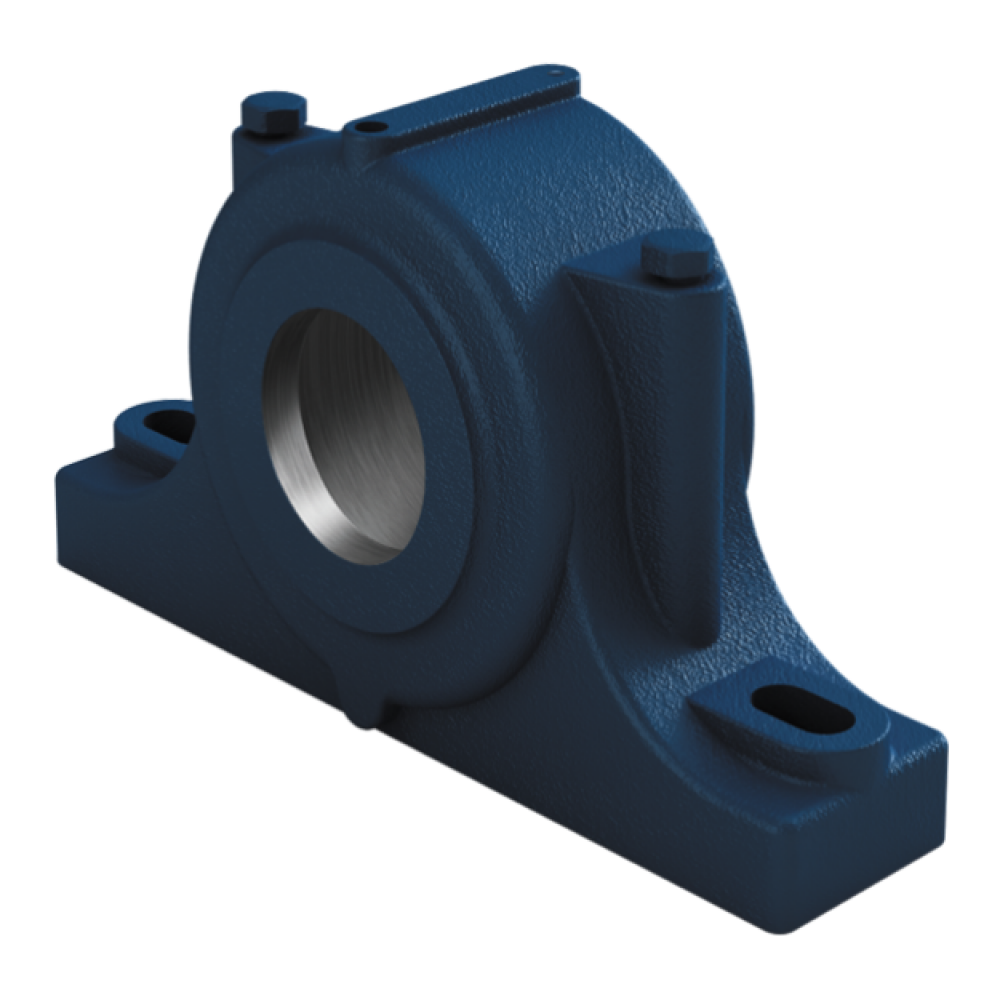

Split Unit SN522

Name: Split Unit SN522
SKU: SN522-MTM

Availability: On order

product code: SN522-MTM

product ean: 5907772138052

d [mm]	100
E [mm]	350
L [mm]	175
D [mm]	200
b [mm]	120
F [mm]	80
G [mm]	45
H [mm]	240
u [mm]	26
v [mm]	32
A [mm]	125
B [mm]	410
M [mm]	M20
S [mm]	M24
notes	details - see table - Files to download

Download as PDF
