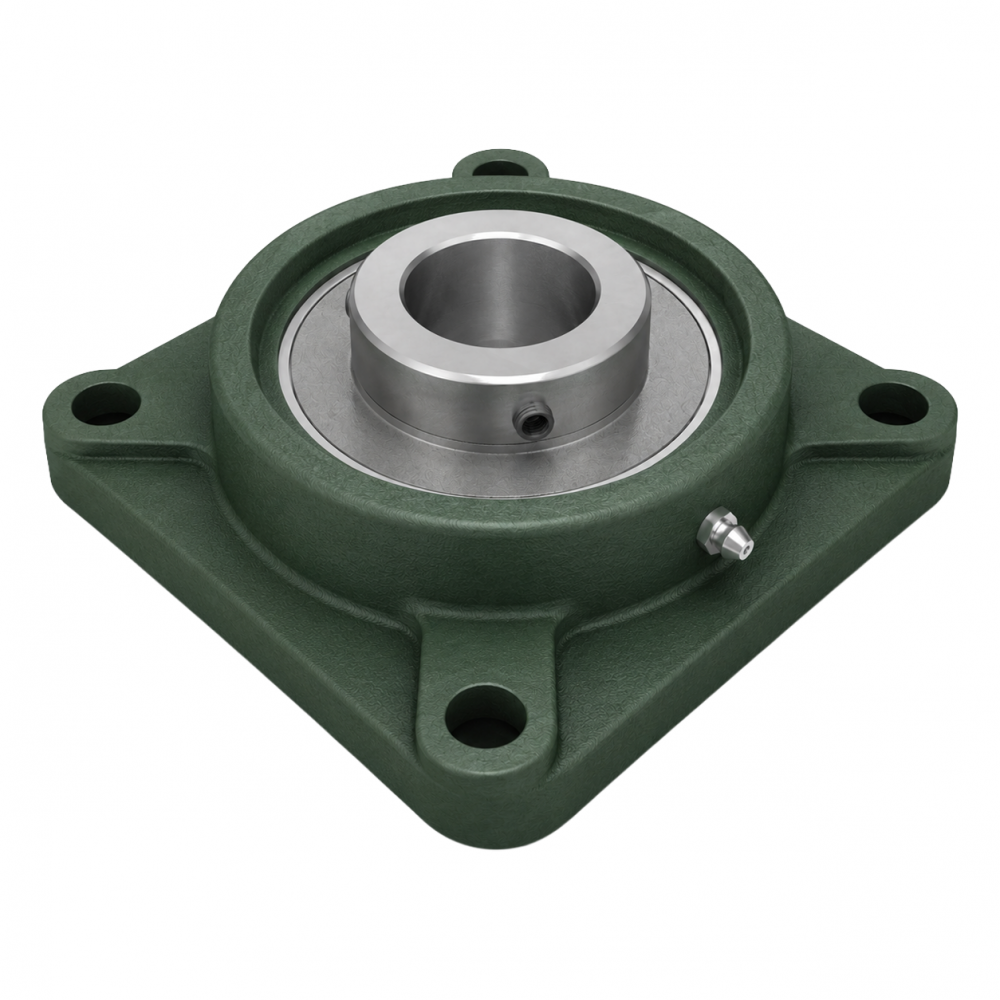

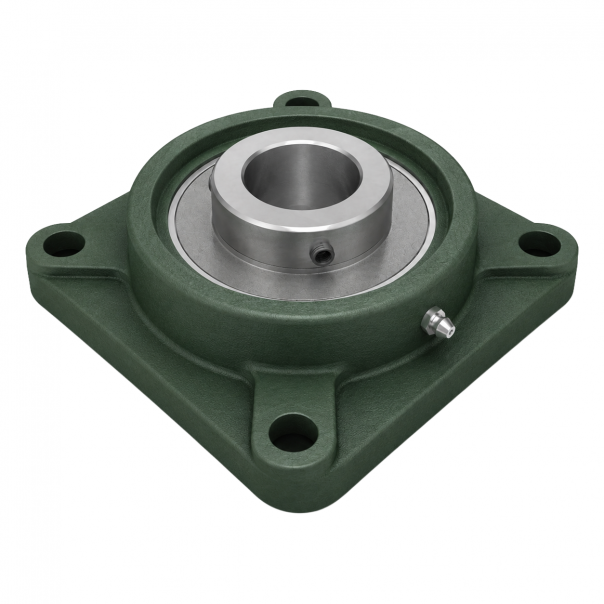

Pillow Block Bearing UCF202

Name: Pillow Block Bearing UCF202
SKU: UCF202-MTM

Availability: Available

product code: UCF202-MTM

product ean: 5907772141373

d [mm]	15
a [mm]	86
e [mm]	64
i [mm]	15
g [mm]	12
l [mm]	25,5
S [mm]	12
Z [mm]	33,3
Bi [mm]	31
n [mm]	12,7
Bolt	M10
Note:	Version TS (with triple sealing) available on request

Download as PDF

Pillow Block Bearing UCHA204

UCHA204-MTM

d [mm] - 20

a [mm] - 64

W [mm] - 96

h [mm] - 64

l [mm] - 40,00

D [mm] - 19

Bi [mm] - 31

n [mm] - 12,7

k [in] - G 3/4

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6005 2RS

6005-2RS-MTM

d [mm] - 25

D [mm] - 47

B [mm] - 12

load rating dynam. [N] - 11200

load rating stat. [N] - 6550

Weight [kg] - 0,080

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6007 2RS

6007-2RS-MTM

d [mm] - 35

D [mm] - 62

B [mm] - 14

load rating dynam. [N] - 15900

load rating stat. [N] - 10200

Weight [kg] - 0,155

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6002 2RS

6002-2RS-MTM

d [mm] - 15

D [mm] - 32

B [mm] - 9

load rating dynam. [N] - 5590

load rating stat. [N] - 2850

Weight [kg] - 0,030

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6009 2RSC3

6009-2RSC3-MTM

d [mm] - 45

D [mm] - 75

B [mm] - 16

nośność dynam. [N] - 20800

nośność stat. [N] - 14600

Waga [kg] - 0,245

Available

Product prices will become visible after signing in.

Ball Bearing 6210 2RSC3

6210-2RSC3-MTM

d [mm] - 50

D [mm] - 90

B [mm] - 20

load rating dynam. [N] - 35100

load rating stat. [N] - 23200

Weight [kg] - 0,463

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFB203

UCFB203-MTM

d [mm] - 17

W [mm] - 110

b [mm] - 62

C [mm] - 52

D [mm] - 52

l [mm] - 25,50

S [mm] - 10

g [mm] - 13

h [mm] - 42

j [mm] - 27

e [mm] - 32

i [mm] - 15

Z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Śruba - M8

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

On order

Product prices will become visible after signing in.

Deep groove ball bearing 6006 2RSC3

6006-2RSC3-MTM

d [mm] - 30

D [mm] - 55

B [mm] - 13

load rating dynam. [N] - 13300

load rating stat. [N] - 8300

Weight [kg] - 0,116

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF203

UCF203-MTM

d [mm] - 17

a [mm] - 86

e [mm] - 64

i [mm] - 15

g [mm] - 12

l [mm] - 25,5

S [mm] - 12

Z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Śruba - M10

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCP202

UCP202-MTM

d [mm] - 15

h [mm] - 30,2

a [mm] - 127

e [mm] - 95

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 14

W [mm] - 62

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA208

UCPA208-MTM

d [mm] - 40

h [mm] - 49,2

a [mm] - 116

e [mm] - 84

b [mm] - 58

t [mm] - M14

r [mm] - 20

g [mm] - 13

W [mm] - 100

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14 x 2,00

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
