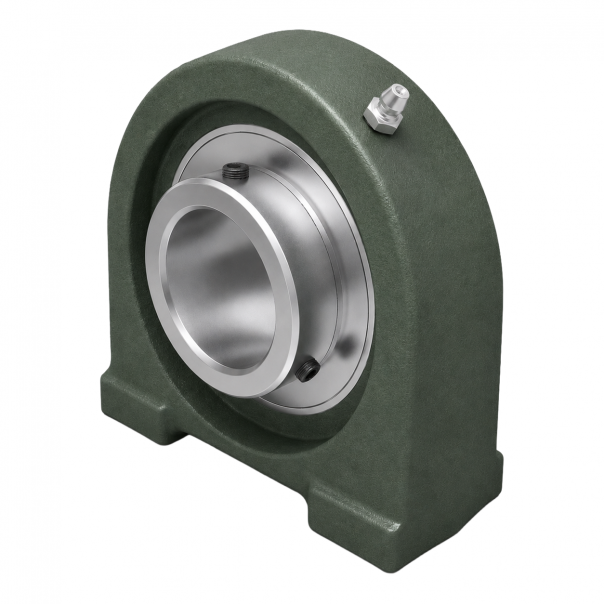

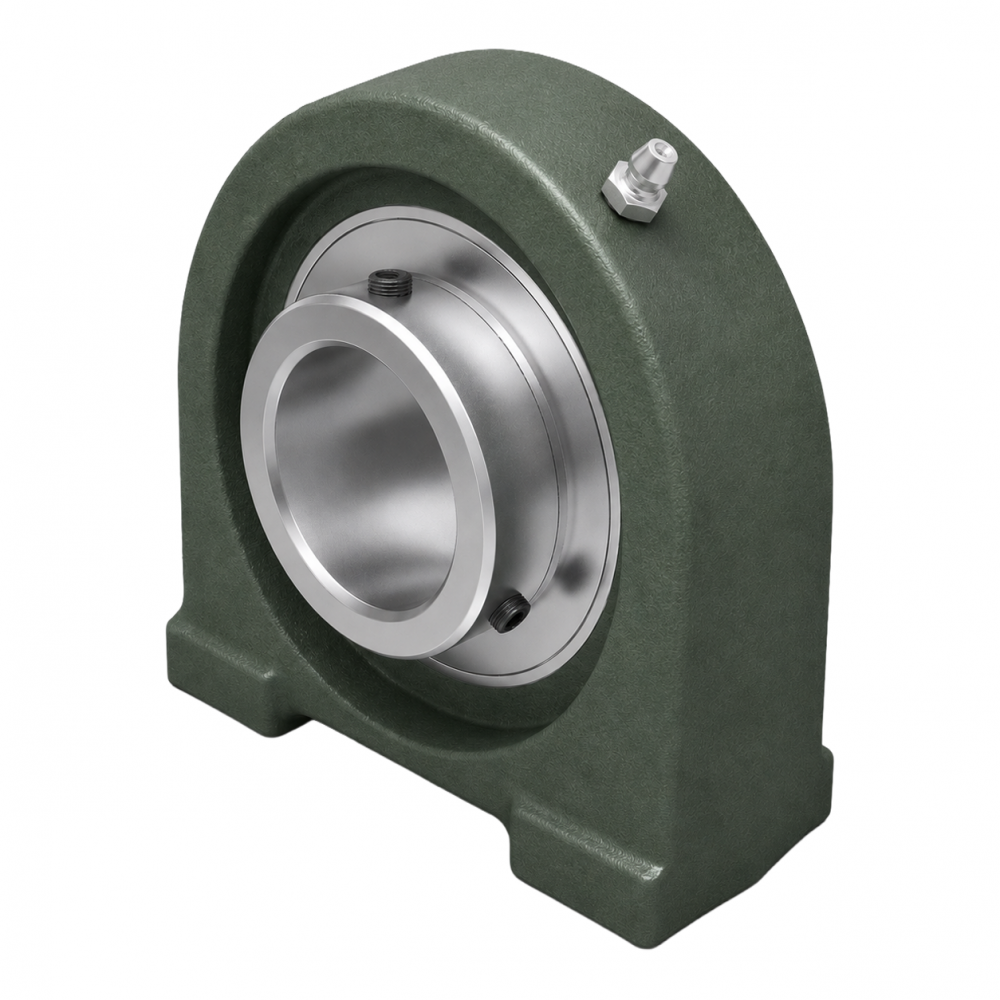

Pillow Block Bearing UCPA208

Name: Pillow Block Bearing UCPA208
SKU: UCPA208-MTM

Availability: Available

product code: UCPA208-MTM

product ean: 5907772142776

d [mm]	40
h [mm]	49,2
a [mm]	116
e [mm]	84
b [mm]	58
t [mm]	M14
r [mm]	20
g [mm]	13
W [mm]	100
Bi [mm]	49,2
n [mm]	19
Bolt	M14 x 2,00
Note:	Version TS (with triple sealing) available on request

Download as PDF
