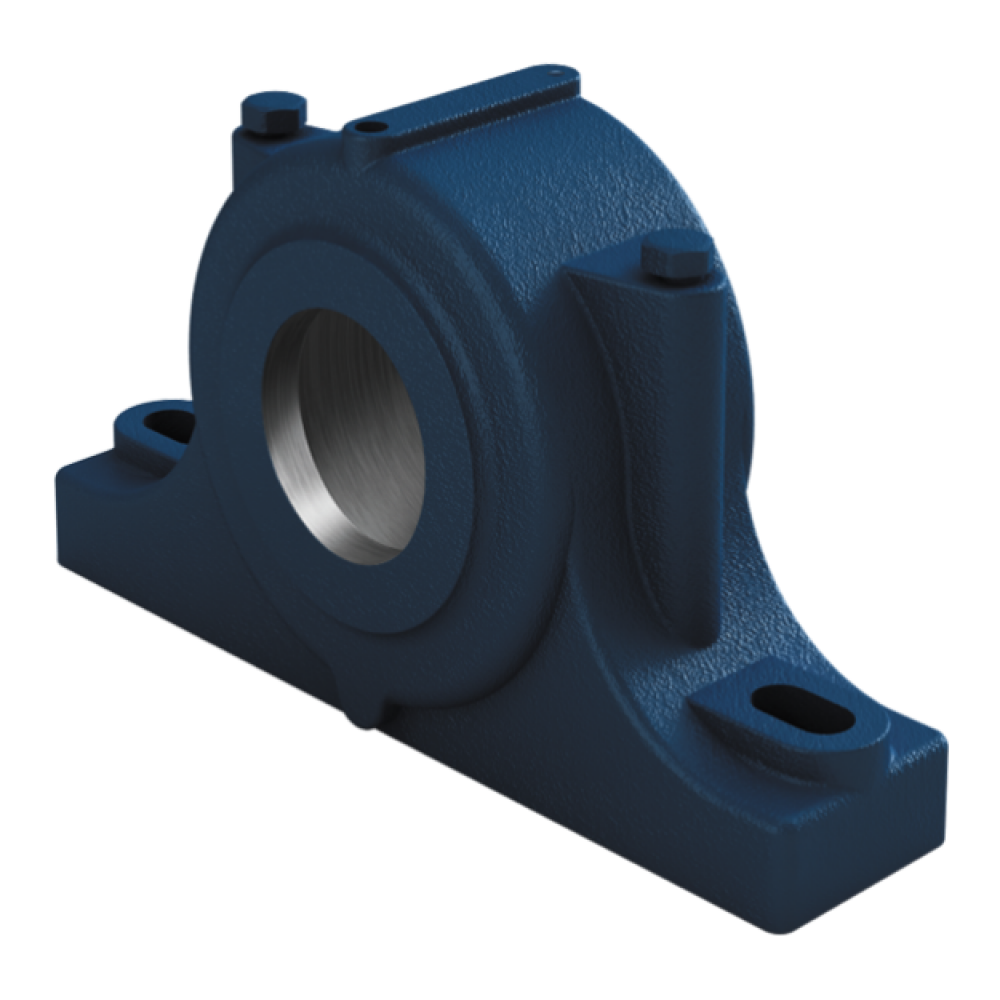

Split Unit SN517

Name: Split Unit SN517
SKU: SN517-MTM

Availability: Available

product code: SN517-MTM

product ean: 5907772138014

d [mm]	75
E [mm]	260
L [mm]	125
D [mm]	150
b [mm]	90
F [mm]	46
G [mm]	32
H [mm]	185
u [mm]	22
v [mm]	27
A [mm]	95
B [mm]	320
M [mm]	M16
S [mm]	M20
notes	details - see table - Files to download

Download as PDF
